– 34–

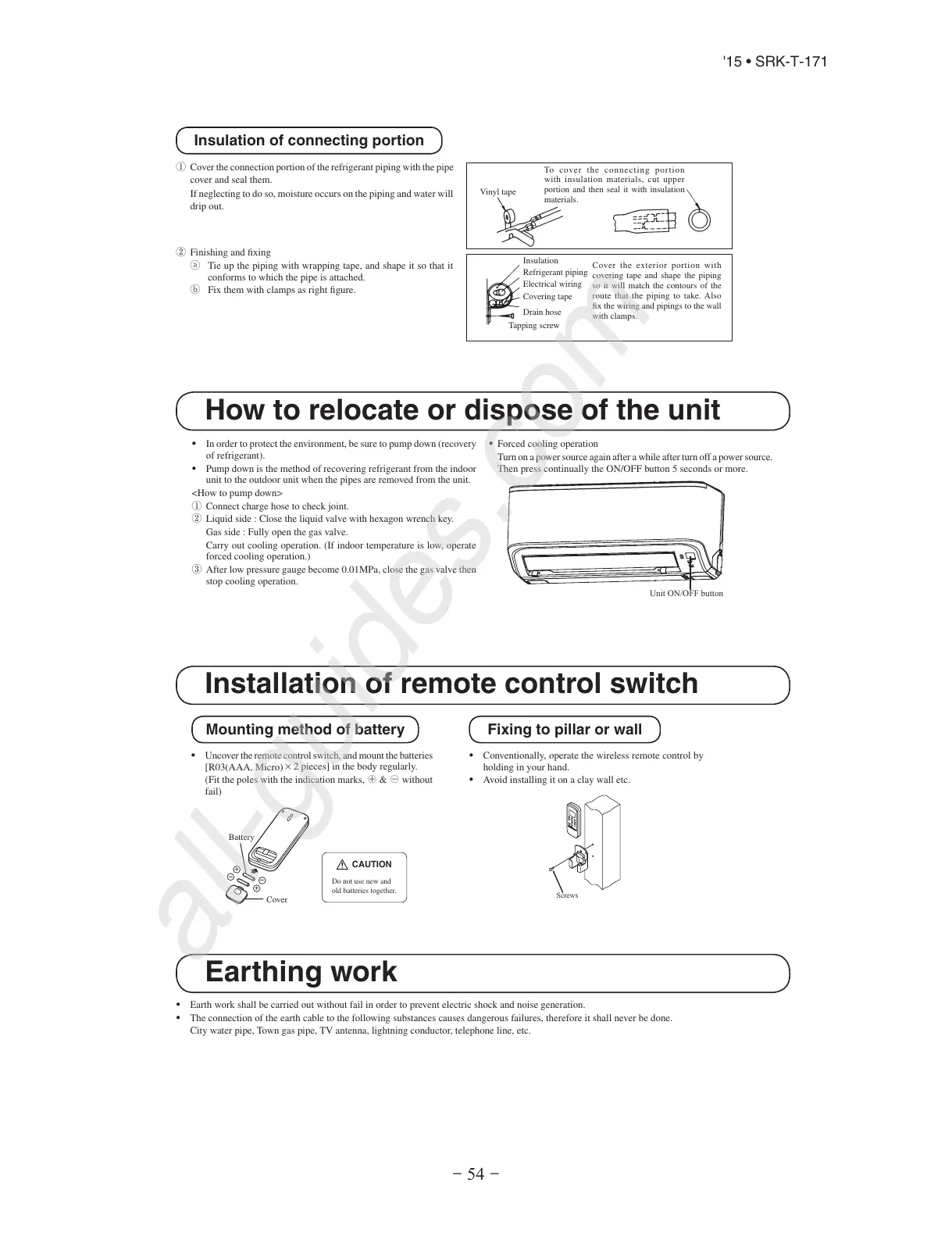

① Cover the connection portion of the refrigerant piping with the pipe
cover and seal them.
If neglecting to do so, moisture occurs on the piping and water will
drip out.
② Finishing and fixing
ⓐ Tie up the piping with wrapping tape, and shape it so that it
conforms to which the pipe is attached.
ⓑ Fix them with clamps as right figure.
Vinyl tape
To cover t he con necti ng por tion
with insulation materials, cut upper
portion and then seal it with insulation
materials.
Cover the exterior portion with
covering tape and shape the piping
so it will match the contours of the
route that the piping to take. Also
fix the wiring and pipings to the wall
with clamps.
Insulation
Refrigerant piping
Electrical wiring
Covering tape
Drain hose
Tapping screw
How to relocate or dispose of the unit
• In order to protect the environment, be sure to pump down (recovery
of refrigerant).
• Pump down is the method of recovering refrigerant from the indoor
unit to the outdoor unit when the pipes are removed from the unit.
<How to pump down>
① Connect charge hose to check joint.
② Liquid side : Close the liquid valve with hexagon wrench key.
Gas side : Fully open the gas valve.
Carry out cooling operation. (If indoor temperature is low, operate
forced cooling operation.)
③ After low pressure gauge become 0.01MPa, close the gas valve then
stop cooling operation.
• Forced cooling operation
Turn on a power source again after a while after turn off a power source.
Then press continually the ON/OFF button 5 seconds or more.
Installation of remote control switch
Earthing work
+
+
-
-
• Uncover the remote control switch, and mount the batteries
[R03(AAA, Micro)×
2 pieces] in the body regularly.
(Fit the poles with the indication marks, ⊕ & ⊖ without
fail)
• Earth work shall be carried out without fail in order to prevent electric shock and noise generation.
• The connection of the earth cable to the following substances causes dangerous failures, therefore it shall never be done.
City water pipe, Town gas pipe, TV antenna, lightning conductor, telephone line, etc.
Battery
Cover
• Conventionally, operate the wireless remote control by
holding in your hand.
• Avoid installing it on a clay wall etc.
Screws
CAUTION
Do not use new and
old batteries together.
Unit ON/OFF button
Insulation of connecting portion
Mounting method of battery Fixing to pillar or wall
