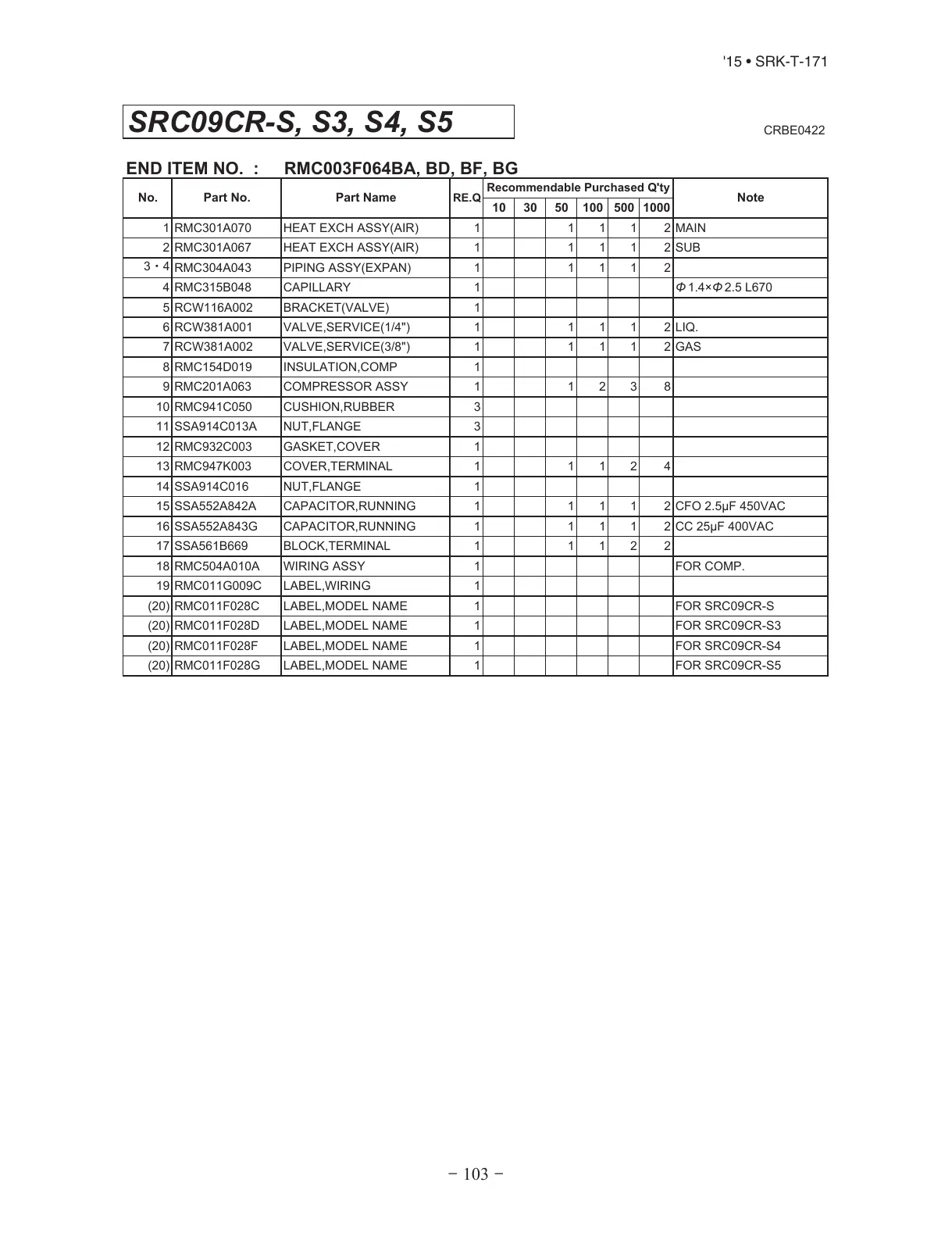

SRC09CR-S, S3, S4, S5
CRBE0422
END ITEM NO. : RMC003F064BA, BD, BF, BG
10 30 50 100 500 1000
1 RMC301A070 HEAT EXCH ASSY(AIR) 1 1 1 1 2 MAIN
2 RMC301A067 HEAT EXCH ASSY(AIR) 1 1 1 1 2 SUB
3࣭4
RMC304A043 PIPING ASSY(EXPAN) 1 1 1 1 2
4 RMC315B048 CAPILLARY 1 ĭ 1.4×ĭ 2.5 L670
5 RCW116A002 BRACKET(VALVE) 1
6 RCW381A001 VALVE,SERVICE(1/4") 1 1 1 1 2 LIQ.
7 RCW381A002 VALVE,SERVICE(3/8") 1 1 1 1 2 GAS
8 RMC154D019 INSULATION,COMP 1
9 RMC201A063 COMPRESSOR ASSY 1 1 2 3 8
10 RMC941C050 CUSHION,RUBBER 3
11 SSA914C013A NUT,FLANGE 3
12 RMC932C003 GASKET,COVER 1
13 RMC947K003 COVER,TERMINAL 1 1 1 2 4
14 SSA914C016 NUT,FLANGE 1
15 SSA552A842A CAPACITOR,RUNNING 1 1 1 1 2 CFO 2.5ȝF 450VAC
16 SSA552A843G CAPACITOR,RUNNING 1 1 1 1 2 CC 25ȝF 400VAC
17 SSA561B669 BLOCK,TERMINAL 1 1 1 2 2
18 RMC504A010A WIRING ASSY 1 FOR COMP.
19 RMC011G009C LABEL,WIRING 1
(20) RMC011F028C LABEL,MODEL NAME 1 FOR SRC09CR-S
(20) RMC011F028D LABEL,MODEL NAME 1 FOR SRC09CR-S3
(20) RMC011F028F LABEL,MODEL NAME 1 FOR SRC09CR-S4
(20) RMC011F028G LABEL,MODEL NAME 1 FOR SRC09CR-S5
NoteNo. Part No. Part Name
RE.Q
Recommendable Purchased Q'ty
To Next Page
