53
ADVANCED FEATURES Menu: CONVERGENCE
CONVERGENCE Menu
(Figure 47)
Your Mitsubishi TV has three picture tubes which
are aligned to properly converge the projected light
beams on the screen. Each picture tube projects a
single color of red, blue or green. During production,
your TV was carefully adjusted to properly align these
colors. As a special feature, you have the ability to
adjust the red and blue light beams in reference to
the fixed green light beam. This process is called
convergence. Convergence aligns the entire screen
at once. Select either Red Convergence or Blue
Convergence to begin alignment.
Convergence Screen
(Figure 48)
When the Red and Blue crosshairs are properly
converged, the center-screen crosshairs will appear
white. You can use , , , or to move the Red
and Blue crosshairs. Press VIDEO to switch between
Red and Blue. Press AUDIO for the Advanced
Convergence screen.
Advanced Convergence
(Figure 49)
After adjusting the Red Convergence and Blue
Convergence, you can fine-tune your TV by adjusting
the Red and Blue convergence at individual points.
Move the flashing bracket to a position needing
adjustment by pressing , , , or . Press ENTER
to select the position (flashing will stop). Move the
Red or Blue line by pressing , , , or . Press
VIDEO to switch between the Red and Blue lines.
A position is properly converged when all three lines
combine to appear white. Press ENTER to deselect
the position (flashing will resume), and move the
brackets to the next position needing adjustment.
When completed, press MENU to save your changes,
and exit the Advanced Convergence screen.
NOTE: This is considered a fixed image. Please see
Important Notes on page , or .
ENTER for menu or to start
MENU to return

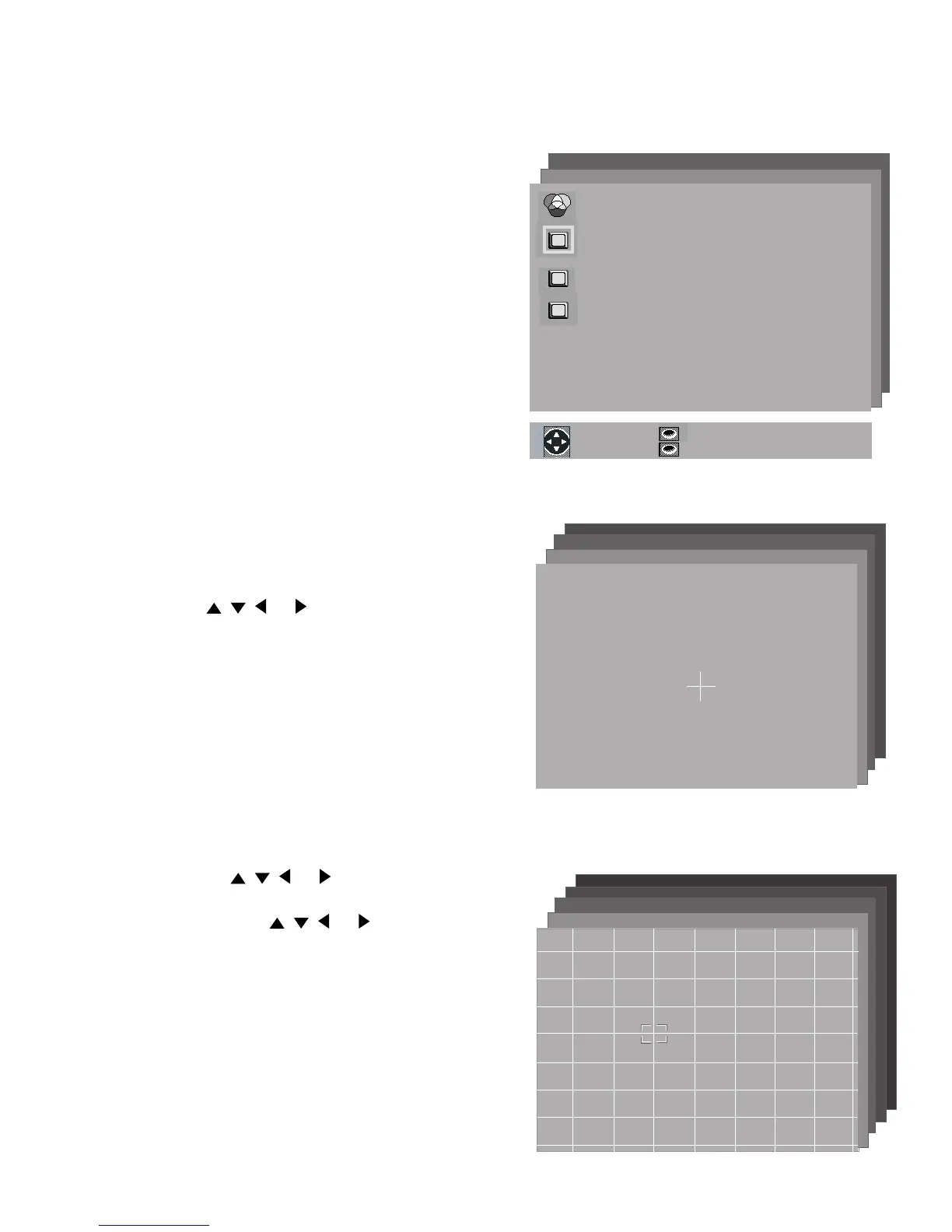

Figure 47. CONVERGENCE menu
Figure 48 . Convergence screen
Figure 49 . Advanced Convergence screen
