Mitsubishi XL1X S L 2 Service Manual

-
13 -
Power Assy
GN
a x2

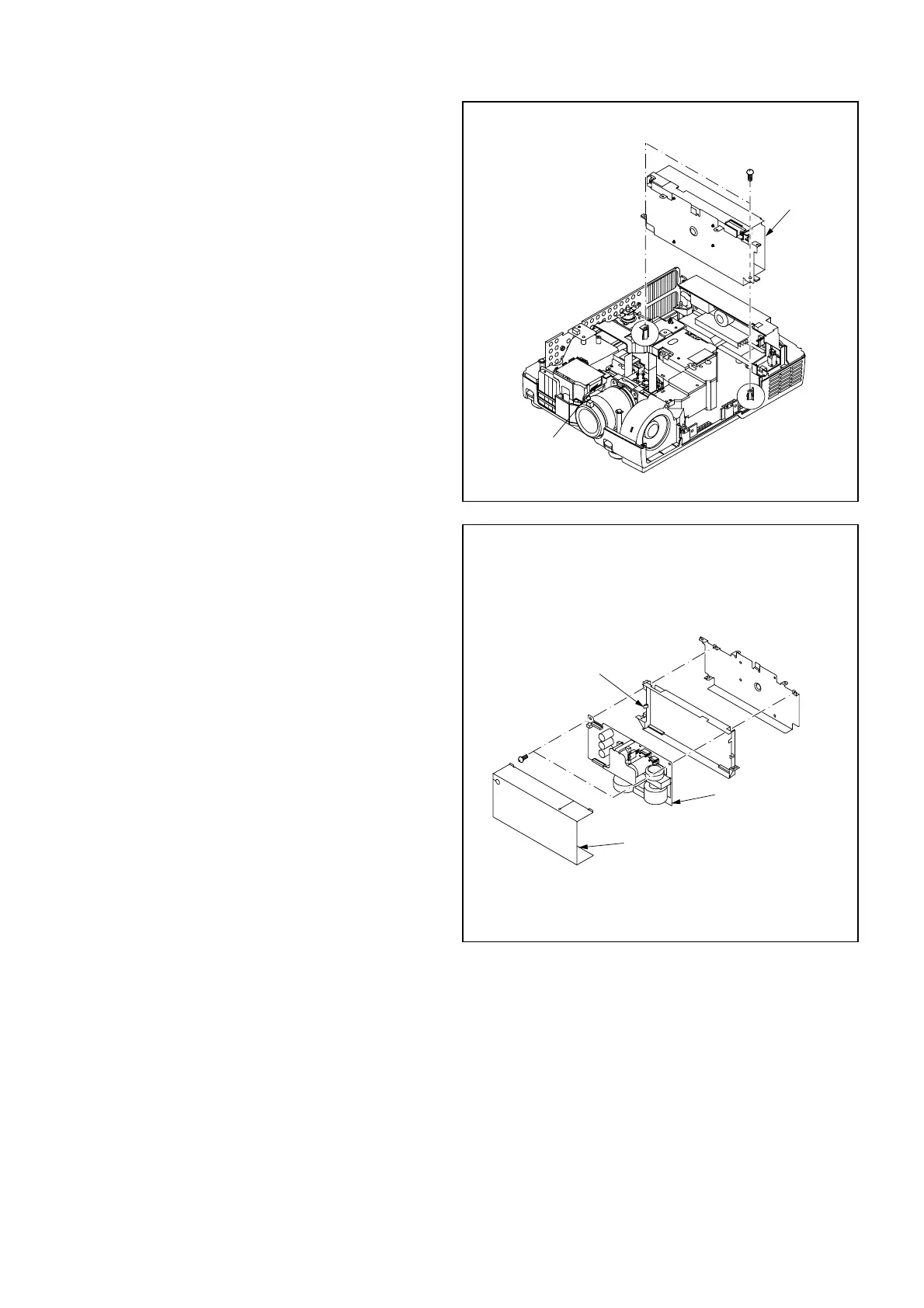

Fig. 3-6
a x2
POWER PCB ASSY
Power Barrier
b x1
Fig. 3-7
6. Removal of POWER ASSY
1. Remove the Top Case Assy and the Terminal Board
following “1.Removal of TOP CASE ASSY and
SPEAKER”. (Fig. 3-1)
2. Remove the Terminal Assy (MAIN PCB ASSY, INLET
PCB ASSY, and TERMINAL PCB ASSY) following
“4.Removal of TERMINAL ASSY (MAIN PCB ASSY,
INLET PCB ASSY, and TERMINAL PCB ASSY) ”.
(Fig. 3-4)
3. Disconnect the GN connector on the AUDIO PCB ASSY
as shown in Fig. 3-6.
4. Remove the two (a) screws and lift the Power Assy to
remove it as shown in Fig. 3-6.
7. Removal of POWER PCB ASSY
1. Remove the Top Case Assy and the Terminal Board
following “1.Removal of TOP CASE ASSY and
SPEAKER”. (Fig. 3-1)
2. Remove the Terminal Assy (MAIN PCB ASSY, INLET
PCB ASSY, and TERMINAL PCB ASSY) following
“4.Removal of TERMINAL ASSY (MAIN PCB ASSY,
INLET PCB ASSY, and TERMINAL PCB ASSY) ”.
(Fig. 3-4)
3. Remove the Power Assy following “6.Removal of
POWER ASSY”. (Fig. 3-6)
4. Remove the Power Barrier as shown in Fig. 3-7.
5. Remove the two (a) screws, release the (b) hook and
remove the POWER PCB ASSY as shown in Fig. 3-7.
