39

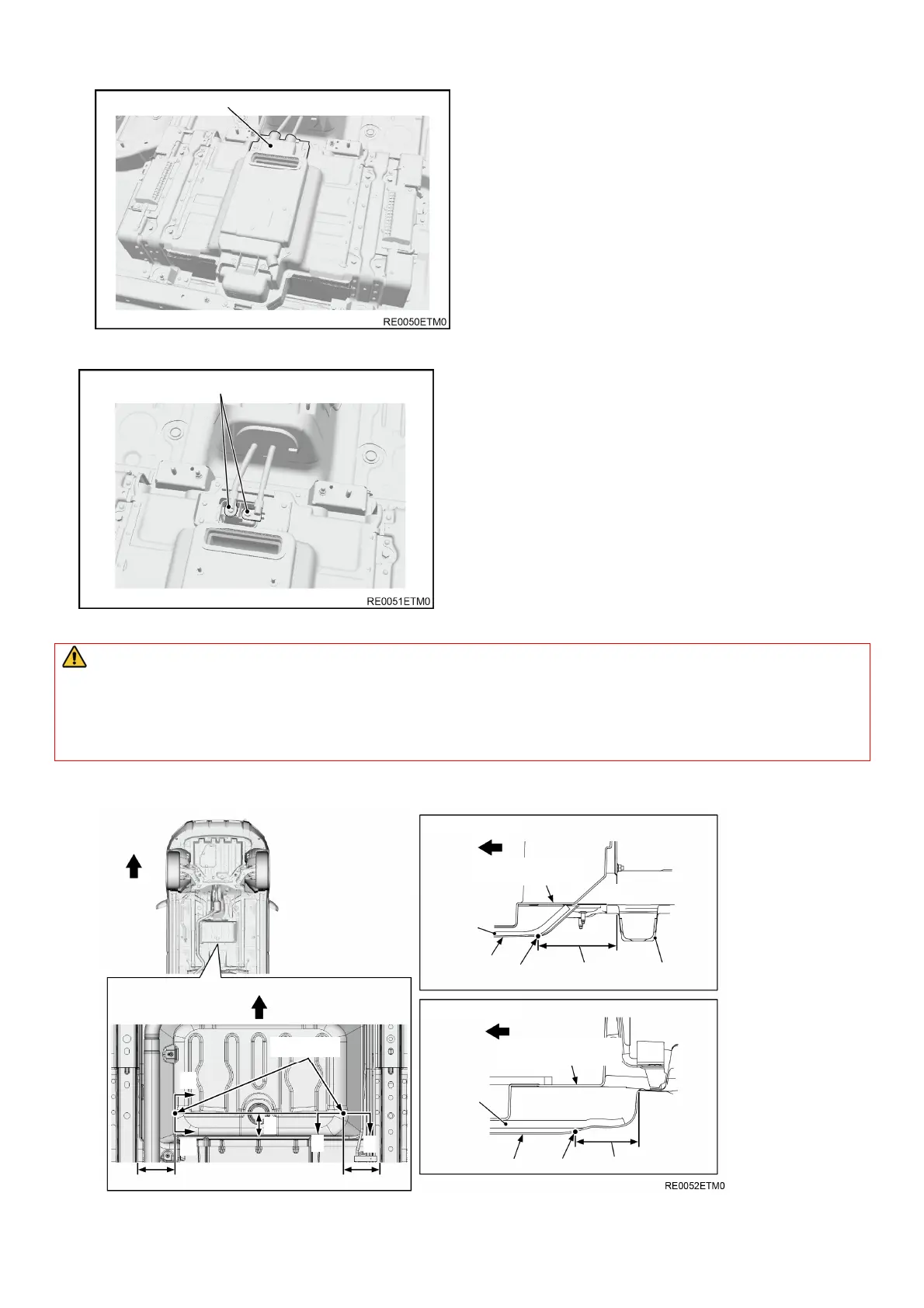

x) Remove the drive battery terminal cover (front).
6) Disconnect the drive battery cable terminals (P, N) from the drive battery side.
7) Prepare a container for collecting drained water.
CAUTION:
Care should be taken to ensure that the depth of the hole does not exceed 10 mm so that it does not penetrate
the drive battery tray cover.
Waste water from the drive battery should be disposed properly as industrial waste in accordance with local
regulations. As the waste water is an aqueous solution containing a tiny amount (1 to several ppm) of metals such
as P, Li, etc., inform an industrial waste disposal contractor and request reliable treatment.
8) Drill two holes about 10 mm depth with a drill of 10 mm diameter or less at the following location to drain
water that has accumulated in the drive battery tray section of the front floor.
Dimension C (from the inside of the side member to the vehicle centre direction): 120 mm
Dimension D (from the vertical surface of the drive battery rear side to the vehicle front direction): 75 mm
x
Drive battery cable terminals (P, N)
Vehicle front
Vehicle front
Hole points
B
B
D
A
A
C
C
Section A -
A
Section B - B
Vehicle
RH
Drive battery tray cover
(Do not penetrate this part.)
Heat
insulation
Vehicle body
Hole point
C
Side membe
Vehicle
front
Heat
insulation
Vehicle body
Hole point
D
Drive battery tray cover
(Do not penetrate this part.)
