Please Do Not forcible/reversely insert all sockets.
所有插座请勿强行反插。
Stays on
常亮
Signaled
有信号
Indicator light situation
指示灯状态
Meanings
含义
Flash quickly
快闪
a. No signal
无信号
b. Pull the trigger
扣动扳机
Flash slowly
慢闪
Low voltage
低电压
Flash twice
闪两下
Over heat protection
过热保护
Off
熄灭
Stuck protection
堵转保护
VCC: Powered by battery circuit. Provide the same voltage as the connected
battery. It can be used as cooling fan power. Please make sure the
battery voltage of the ESC is in the range of fan’s.
BVD: Receivers with BVD function can be directly connected to this interface
through an adapter cable, which is equivalent to connecting a battery.
VCC: 电池电路供电。提供与接入电池相同的电压。可用于散热风扇供电。请注意电调所接入
的电池在风扇的工作电压范围内。
BVD: 带BVD功能的接收机可直接通过转接线连接此接口，等同于连接电池。
Indicator
指示灯
VCC/BVD
Yellow wire A
黄线A
Blue wire C
蓝线C
White wire B
白线B
Power switch
电源开关
Heat sink
散热片

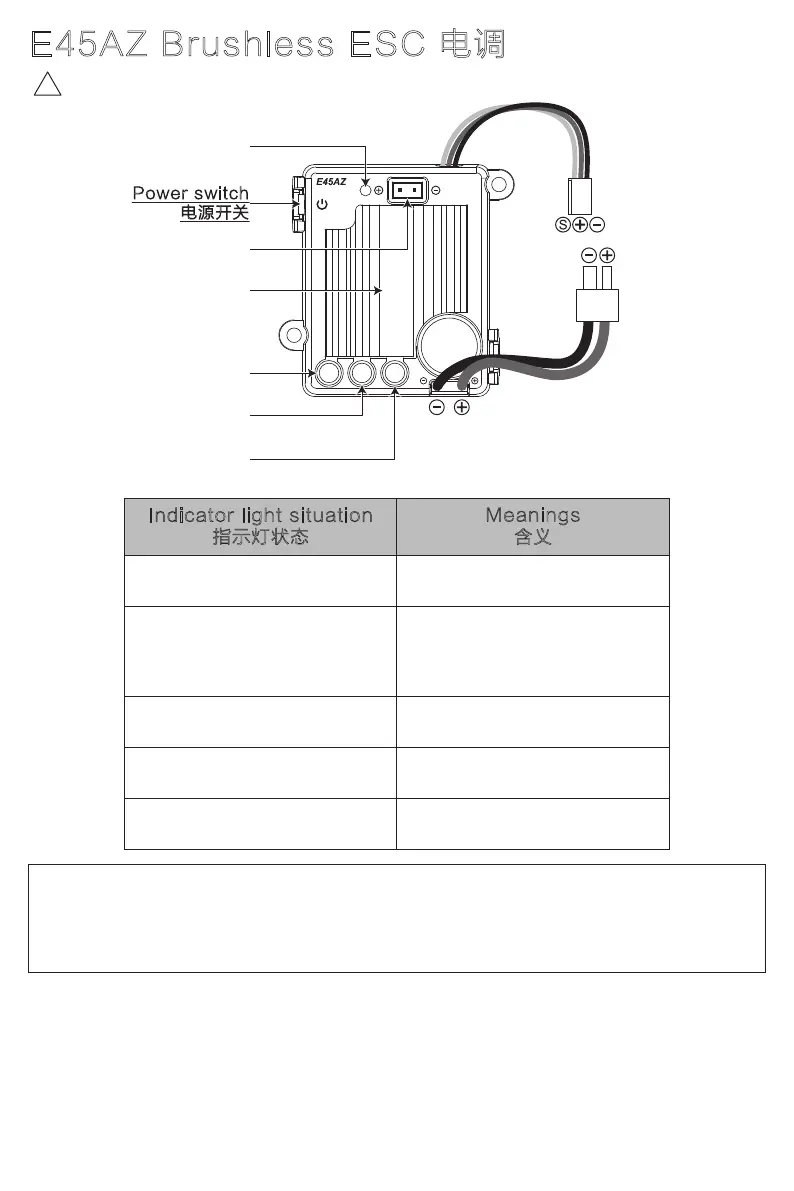

E45AZ Brushless ESC 电调
-6-
