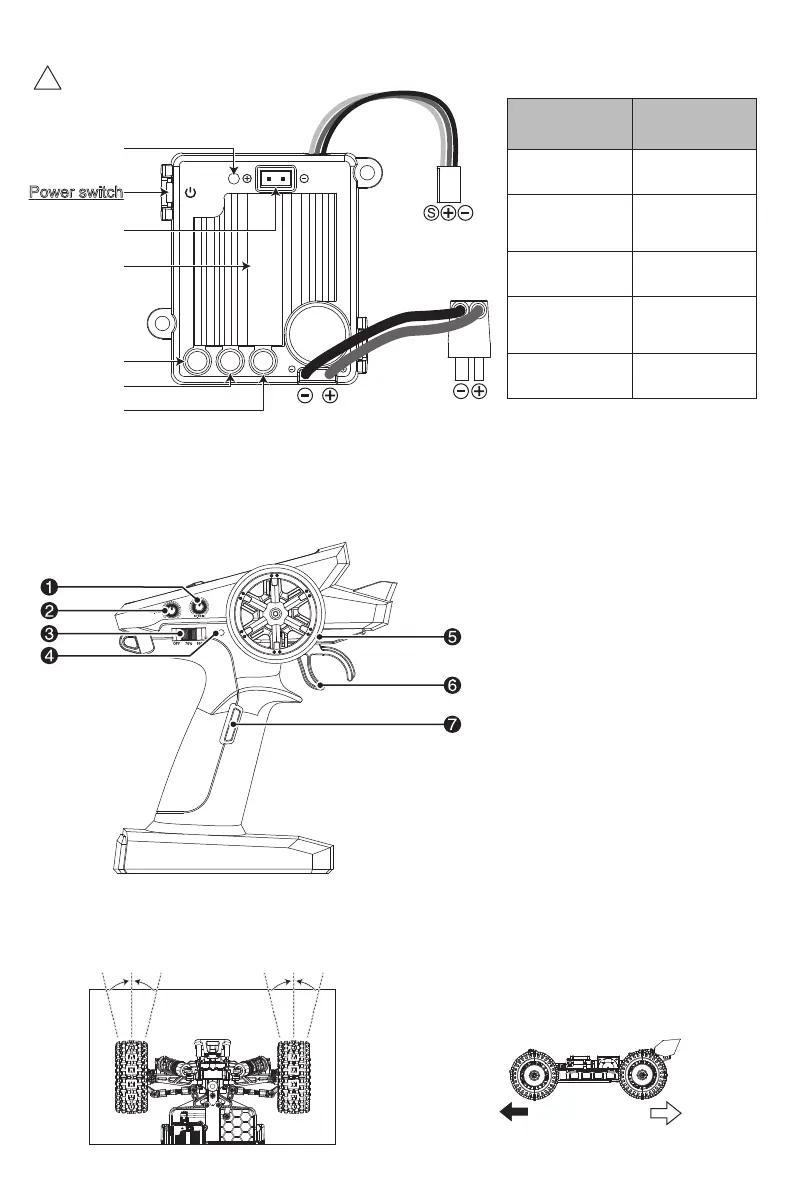

T3B Transmitter
① ST.TRIM
(Steering servo strimmer)
② TH.TRIM (Throttle trimmer)
③ Power switch
(OFF-70%TH-100%TH)
④ Indicator light
⑤ CH1: ST (Steering)
⑥ CH2: TH (Throttle)
⑦ CH3: Fn
If the car cannot go straightly during driving, it can
be adjusted through the ST.TRIM.
①ST.TRIM (Steering servo strimmer)
!
Please Do Not forcible/reversely insert all sockets.
E45A Brushless ESC
Stays on Signaled
E45A Indicator
light situation
Meanings
Flash quickly
a. No signal
b. Pull the trigger
Flash slowly Low voltage
Flash twice
Over heat
protection
Off Stuck protection
Indicator
VCC/BVD
Yellow wire A
Blue wire C
White wire B
Power switch
Heat sink
VCC: Powered by battery circuit. Please provide the same voltage as the connected battery. It can be used
as cooling fan power power. Please make sure the battery voltage of the ESC is in the range of fan’s.
BVD: Receivers with BVD function can be directly connected to this interface through an adapter cable, which
is equivalent to connecting a battery.
If the car can’t be stop when the TH in the
middle place, you can adjust the button to
stop the car.
②TH.TRIM (Throttle trimmer)
Forward
-5-
