This document provides installation and usage instructions for a roof rack system, specifically the P2211ADE00AL model, designed for the Kia Sorento (MQ4) MY 2020. The manual emphasizes safety, proper installation, and maintenance to ensure optimal performance and prevent damage.

Function Description

The P2211ADE00AL roof rack system is designed to securely transport additional cargo on the roof of the Kia Sorento (MQ4) MY 2020. It consists of two crossbars (front and rear) that attach to the vehicle's roof rails, providing a stable platform for various accessories such as ski/snowboard carriers (66700ADE10, 66700ADE00), roof boxes (66730ADE00, 66730ADE10), or bicycle carriers (66701ADE00/10). The system is intended to expand the vehicle's carrying capacity for recreational equipment or luggage that cannot be accommodated inside the car.

Important Technical Specifications

Model Number: P2211ADE00AL
Maximum Permissible Load: 75 kg (165 lbs). This weight limit includes the weight of the roof rack itself and any accessories mounted on it, plus the cargo. It is crucial not to exceed this limit to ensure vehicle stability and safety.
Minimum Distance Between Front and Rear Crossbars: 700 mm (27.5 inches). This measurement is critical for proper load distribution and stability, unless otherwise specified by the vehicle manufacturer.
Recommended Maximum Driving Speed with Load: 130 km/h (80 mph). Exceeding this speed with a loaded roof rack can significantly impact vehicle handling and safety.
Torque for Fastening Screws: 6 Nm. This specific torque ensures that the roof rack components are securely fastened without over-tightening, which could cause damage.
Material: The components appear to be made of durable, lightweight materials, likely aluminum for the crossbars and robust plastics or composites for the mounting feet and covers, designed to withstand various weather conditions and road stresses.
Dimensions: The front and rear crossbars are designed to fit the specific roof rail dimensions of the Kia Sorento (MQ4) MY 2020. The document specifies a distance of 726 mm (28.6 inches) from the front edge of the roof rail to the center of the front crossbar, and a maximum distance of 750 mm (29.5 inches) between the inner edges of the mounting feet on the crossbars. A minimum clearance of 10 mm (0.4 inches) is required between the roof and the underside of the crossbar.

Usage Features

Vehicle-Specific Design: The P2211ADE00AL is specifically designed for the Kia Sorento (MQ4) MY 2020, ensuring a precise fit and optimal integration with the vehicle's roof rails.
Secure Attachment: The system utilizes robust clamping mechanisms that attach to the vehicle's existing roof rails. The installation process involves tightening screws to a specified torque (6 Nm) to ensure a secure and stable connection.
Load Distribution: Users are instructed to distribute the load evenly across the roof rack and keep the center of gravity as low as possible. For small, heavy loads, it is recommended to place them on one side of the crossbar rather than in the middle.
Cargo Securing: Emphasizes the importance of securely fastening cargo to prevent it from loosening, shifting in any direction (forward, backward, or sideways), or causing damage. Cargo should not protrude beyond the vehicle's outline.
Lockable System: The roof rack features a lockable mechanism (indicated by a padlock icon), which helps prevent theft of the roof rack itself and provides added security for the mounted cargo. It is advised to keep the roof rack locked during transport.
Compatibility with Accessories: The system is compatible with a range of genuine Kia accessories, including various ski/snowboard carriers, roof boxes, and bicycle carriers, allowing for versatile cargo transport options.
Driving Behavior Awareness: Users are warned that driving with a mounted (and loaded) roof rack will alter the vehicle's handling characteristics, including increased sensitivity to side winds, changes in cornering behavior, and braking distances. Adjusting driving speed accordingly is recommended.
Pre-Drive Checks: Regular checks of all fastening parts and screw connections are mandatory before each journey, especially after a short initial drive. This ensures that all components remain securely attached.

Maintenance Features

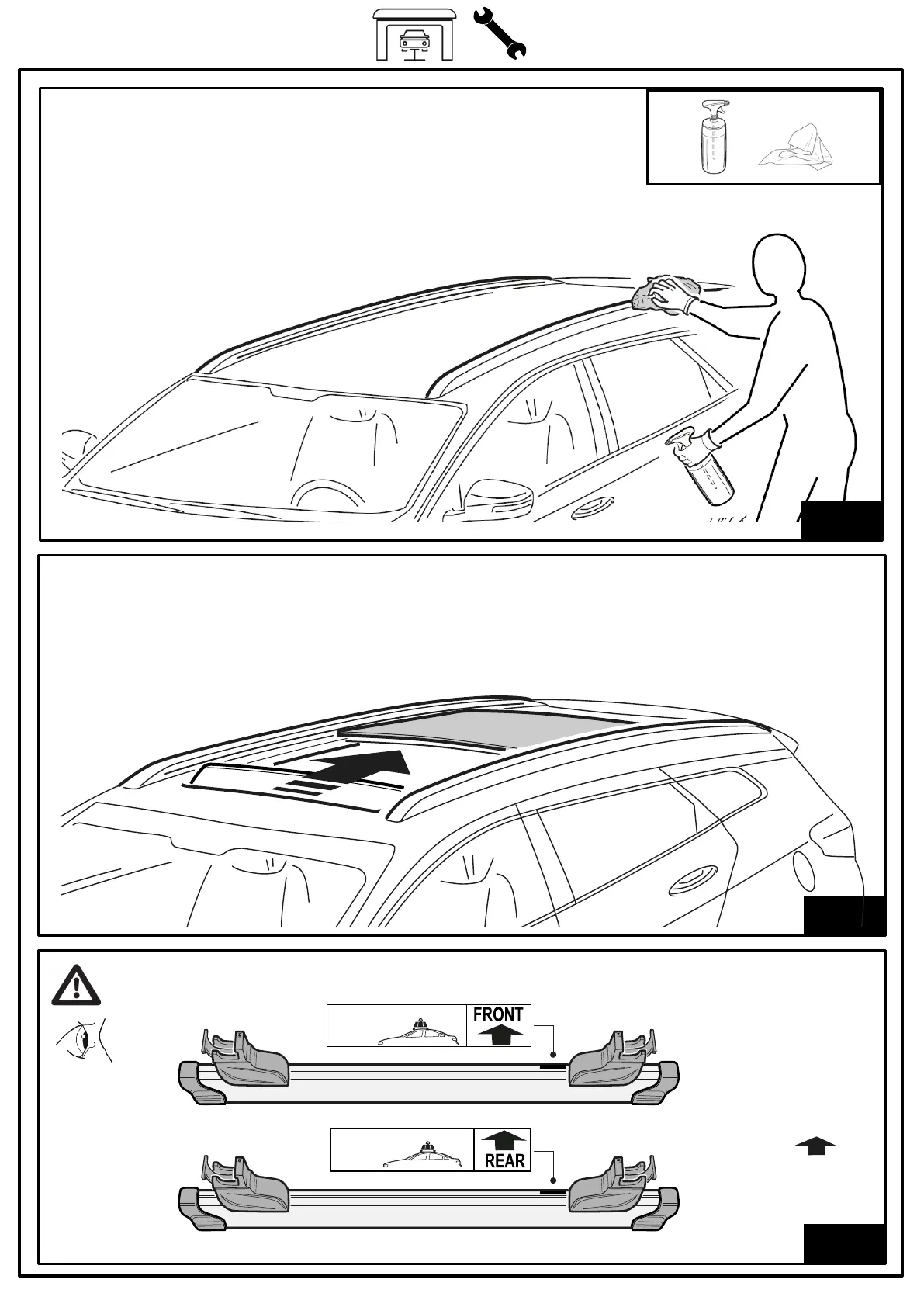

Regular Cleaning: To prevent paint fading or damage under the mounting feet, it is recommended to clean the roof from dust and dirt before attaching the roof rack. Additionally, the roof rack should be removed periodically to clean the areas where the feet rest on the roof.
Seasonal Removal: For safety and to reduce air resistance and fuel consumption, the roof rack should be dismounted when not in use. This also helps in maintaining the vehicle's original driving characteristics.
Avoid Automatic Car Washes: The manual explicitly states that the vehicle should not be taken through an automatic car wash with the roof rack mounted, as this could cause damage to the roof rack or the vehicle.
No Modifications: Users are strictly advised not to make any modifications to the product, as this could compromise its safety and performance, and would void any warranty claims.
Professional Installation/Guidance: The document implies that assembly should be carried out by a competent installer. In case of any questions or uncertainties regarding installation or usage, users are advised to contact their local dealer for further information. This suggests that while DIY installation is possible with the provided instructions, professional guidance is available and recommended for complex issues.
Documentation Retention: The installation manual should always be kept with the vehicle's documents for future reference, especially when changing vehicles or for warranty purposes.
