MODA MINI GRAZE
®
INTERIOR COLOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
3 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 01/2/2019
7
6
8

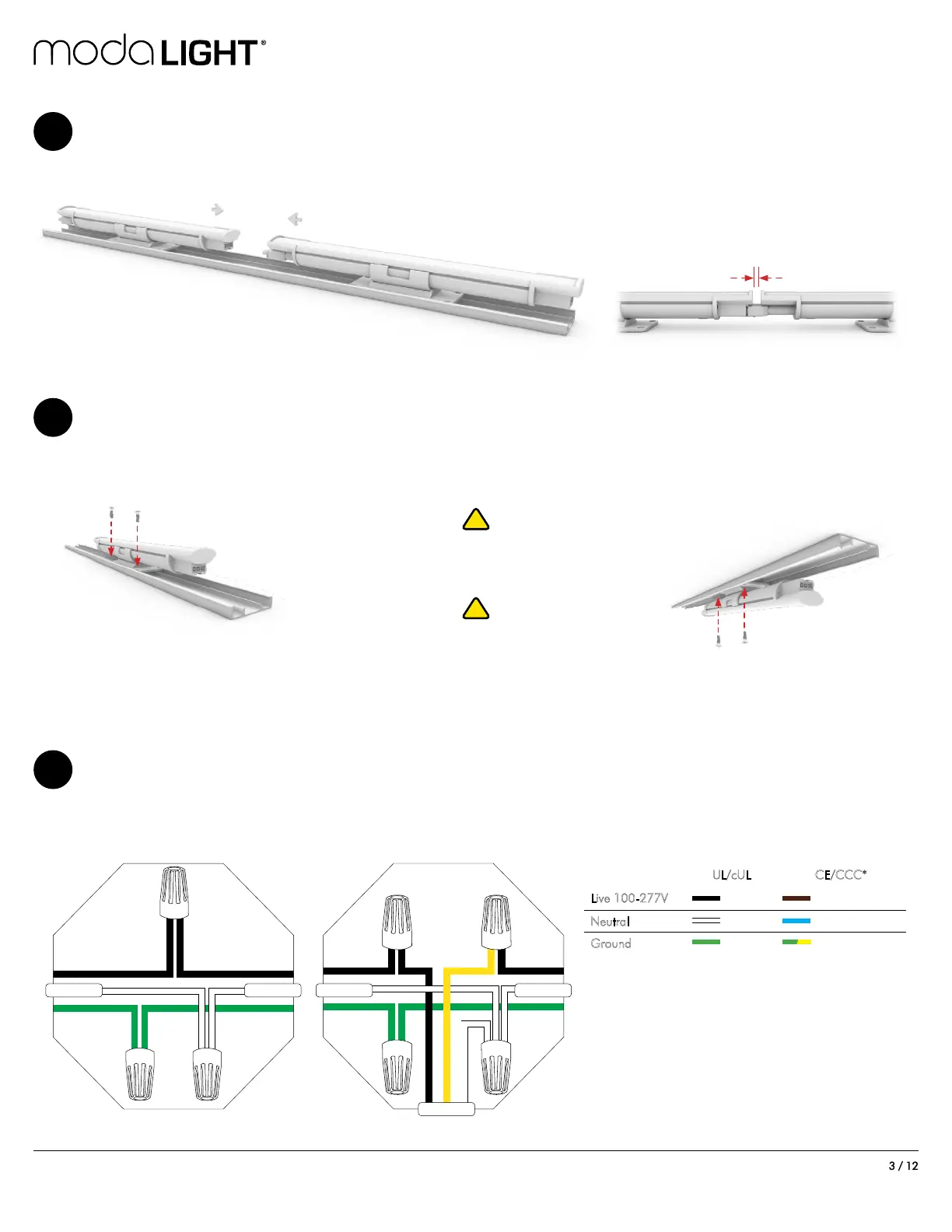

Screw Moda Mini Graze Interior into the mounting track
Atornille Moda Mini Graze Interior al canal de montaje
Vissez Moda Mini Graze Interior dans la voie de montage
!
Use appropriate mounting screws suitable for each surface
Use tornillos de montaje adecuados para cada superficie
Utilisez des vis de montage appropriées pour chaque surface
Tight torque may damage bracket
Mucha torsión puede dañar el soporte
Un couple serré peut endommager le support
!
Wiring
Cablería
Cables
Snap Moda Mini Graze Interior mounting track then slide to connect fixtures
Encaje Moda Mini Graze Interior en el canal de montaje y luego deslice para conectar accesorios
Accrochez Moda Mini Graze Interior dans la piste puis faites glisser pour connecter les appareils
Ceiling mounted
Instalación en techos
Plafond monté
UL / cUL Non-dimming UL / cUL ELV Dimming
LEADER CABLE100-277V AC LEADER CABLE100-277V AC
ELV DIMMER
UL/cUL CE/CCC*
Live 100-277V Black Brown
Neutral White Blue
Ground Green Green/Yellow
*Not illustrated
Minimum end to end spacing is 1/8” (3.5mm)
Espacio minimo de extremo a extremo es 1/8” (3.5mm)
L’espacement minimal entre les extrémités est 1/8” (3.5mm)
To Next Page
