Modern Forms Lotus - Page 13

FR-W1809
Lotus Instructions 13
2
1

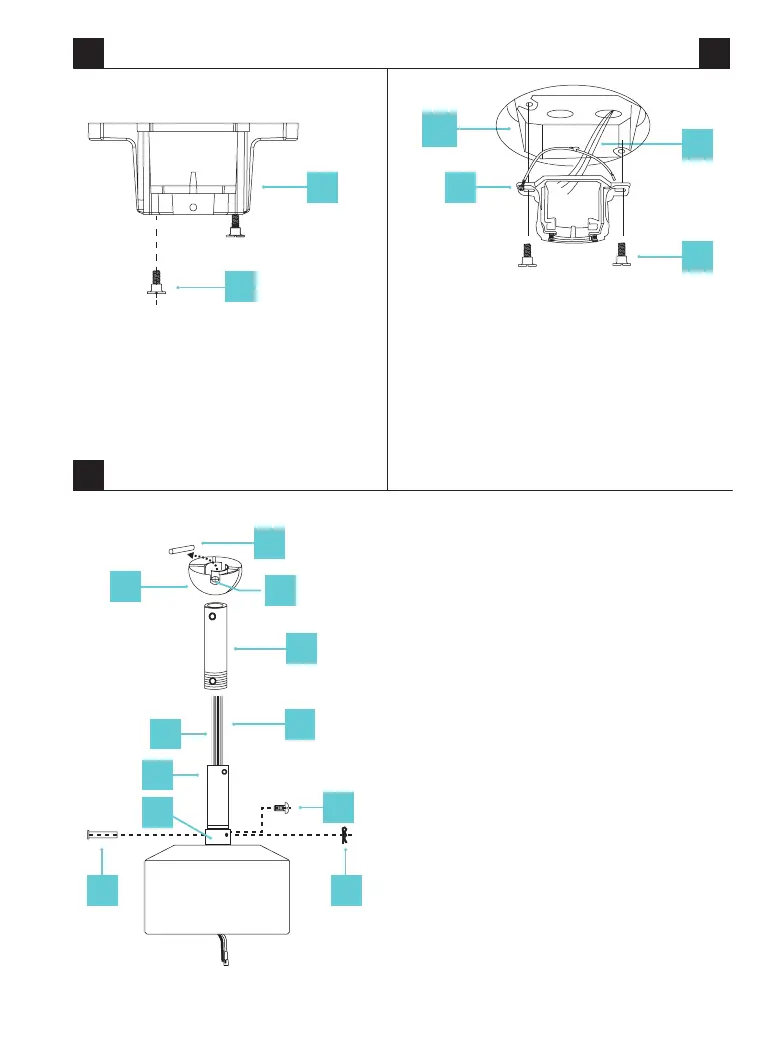

1. 120V Wires
2. cUL Listed Electrical Box
3. Mounting Bracket
4. Mounting Screws
(supplied with outlet box)
2B
2A
1. Mounting Bracket
2. Screw
2
1. Cross Pin
2. Hanger Ball
3. Screw
4. Downrod
5. Safety Cable
6. Motor Wires
7. Downrod
8. Screws
9. Collar
10. Cotter Pin
11. Clevis Pin
4
1
5
8
1011
6
7
9
3
2
1
2
3
4
