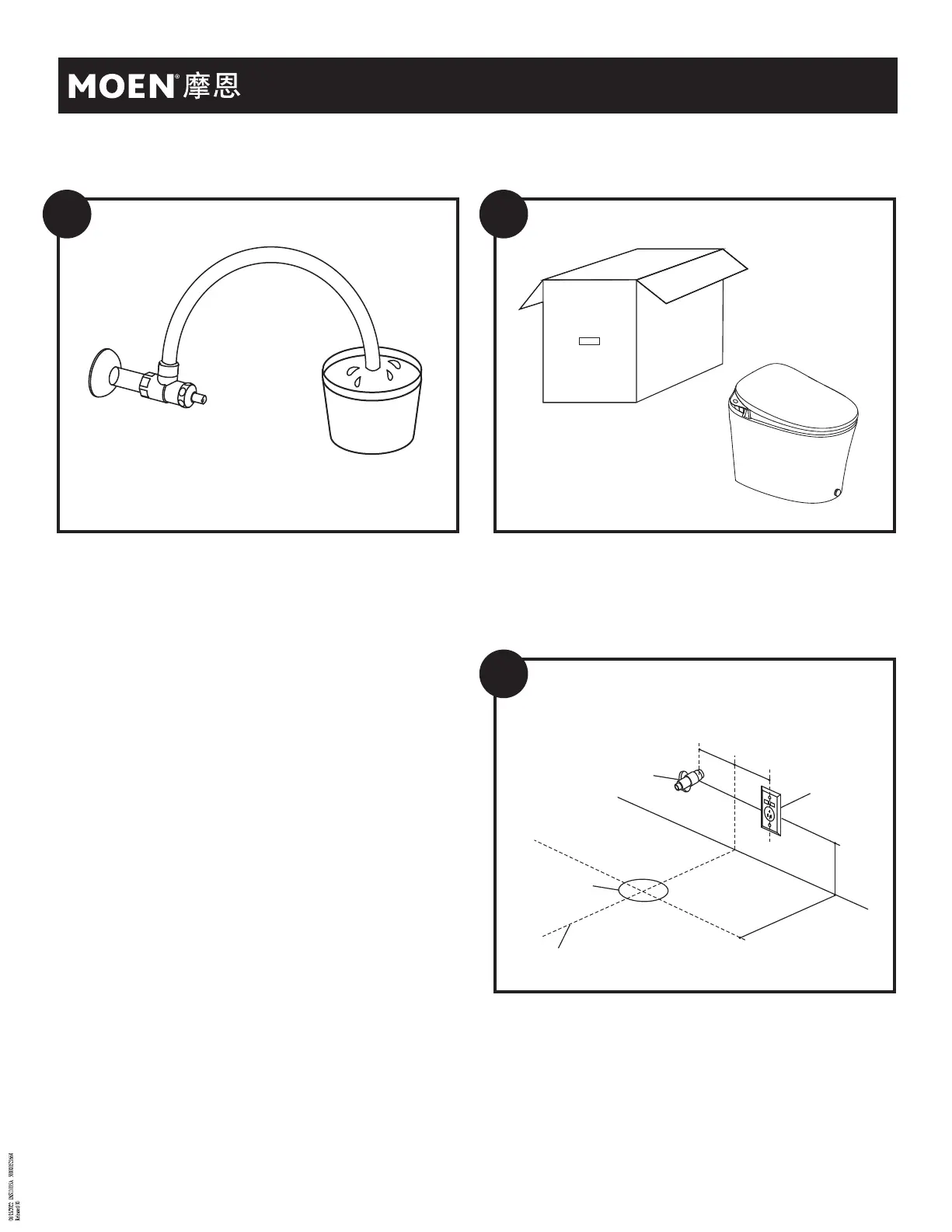

二.安装步骤 Installation Steps
水压的确认
最低动态工作水压为0.14MPa，另外最高静态水压为0.75MPa。
最低水流量测定方法。
打开供水角阀，测量10秒钟流出的水量超过3升。
(使用工具:秒表、量杯)。
※如无法满足以上条件，则无法达到最佳的冲水效果， 需增加增
压泵来增压。
Confirmation of water pressure
The minimum dynamic operating water pressure is 0.14MPa,
and the maximum static water pressure is 0.75MPa.
Determination method for minimum water flow
Open the angle valve for water supply.
The measured water flow for 10 seconds should exceed 3L.
(Tools: stopwatch, measuring cup.)
※If the above conditions cannot be met, the best flushing effect
cannot be achieved and an additional booster pump is
required to increase the pressure.
将包装箱向上提取
依据下图，将相关配件放置在一边备用，再将包装箱向上提取。
Extract the packing box upwards.
Based on the following drawing, place the relevant accessories
aside for backup, and then extract the packing box upwards.
在地面排污口上画十字标记
将地面清洁干净，同时将水分擦干。
※地面的清洁度及干燥度会影响后续产品固定的牢固度。
Draw a cross mark on the floor drain.
Clean the floor and wipe out the water at the same time.
※The cleanliness and dryness of the floor will affect the
firmness of the subsequent product fixing.
3
以前的供水角阀
The previous
angle valve
地面排污口
Floor Drain
十字标记
Cross Mark
带接地、防水、
防溅电源插座
With a grounded,
waterproof,
splash-proof
power outlet
300mm
300mm
305/400mm
5
300mm
To Next Page
