Installation Instructions

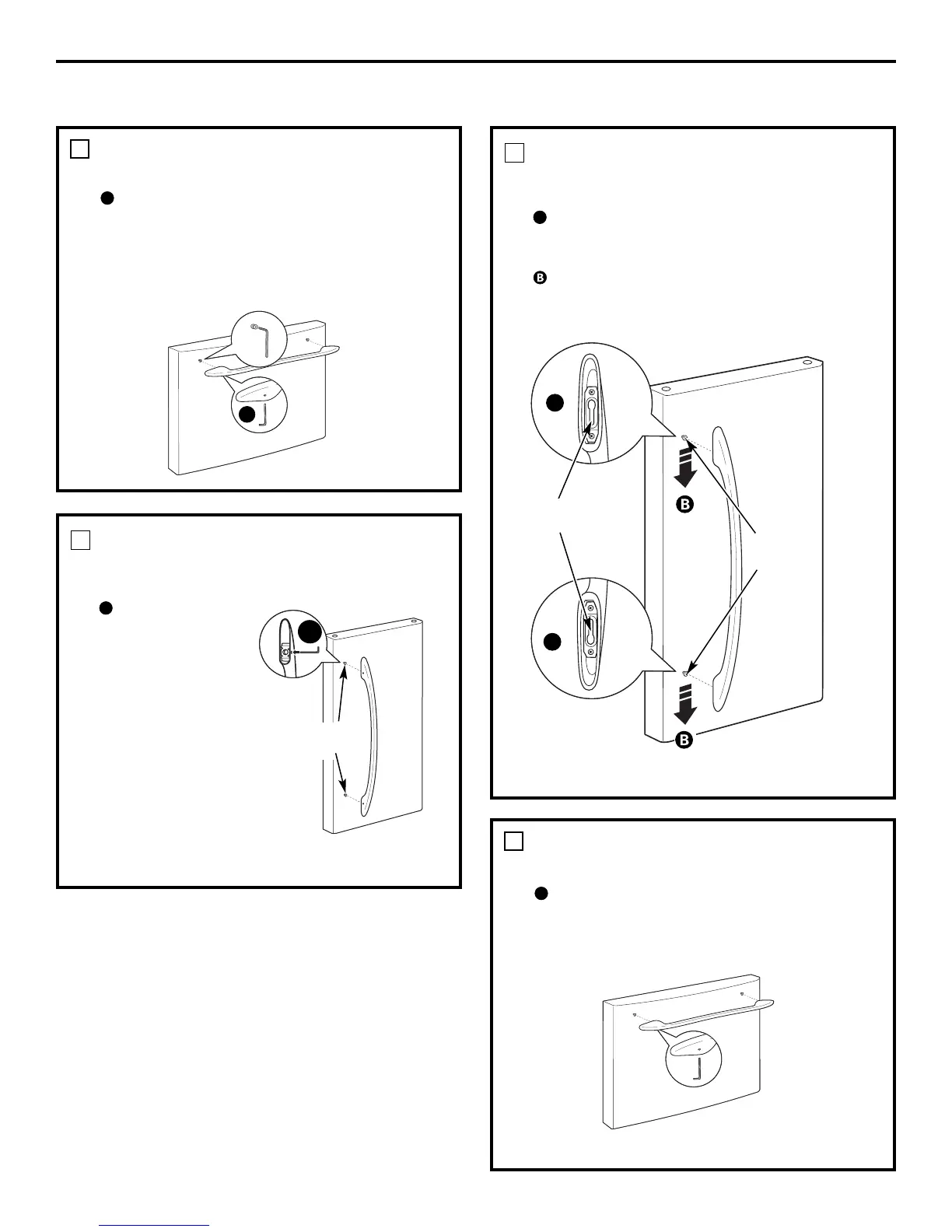

REMOVE THE FREEZER DOOR HANDLE
Stainless steel and plastic handles:
Loosen the set screws located on the
underside of the handle with the 1/8″ Allen
wrench and remove the handle.
NOTE: If the handle mounting fasteners need
to be tightened or removed, use a 3/16″ Allen
wrench.
A
5
A
ATTACH THE FREEZER DOOR HANDLE
Stainless steel and plastic handles:
Attach the handle firmly to the mounting
fasteners and tighten the set screws on
the bottom of the handle with a 1/8″ Allen
wrench.
A
ATTACH THE FRESH FOOD
DOOR HANDLE
Stainless steel handle:
Attach the
handle to the
handle mounting
fasteners and
tighten the set
screws with a
3/32″ Allen
wrench.
NOTE: For
Double Door
models follow
the same
procedure on the
opposite door.
A
6
A
Mounting
Fasteners
(appearance may vary)
7
(appearance may vary)
ATTACH THE FRESH FOOD
DOOR HANDLE (cont.)
Plastic handle:
Attach the handle to the handle mounting
fasteners by aligning the slots with the
handle mounting fasteners.
Slide it down until it is firmly locked into
position.
A
6
(appearance may vary)
Mounting
fasteners
Slots on back of
handle
A
A
