MoJack EZ Max Lift
Assembly Instructions

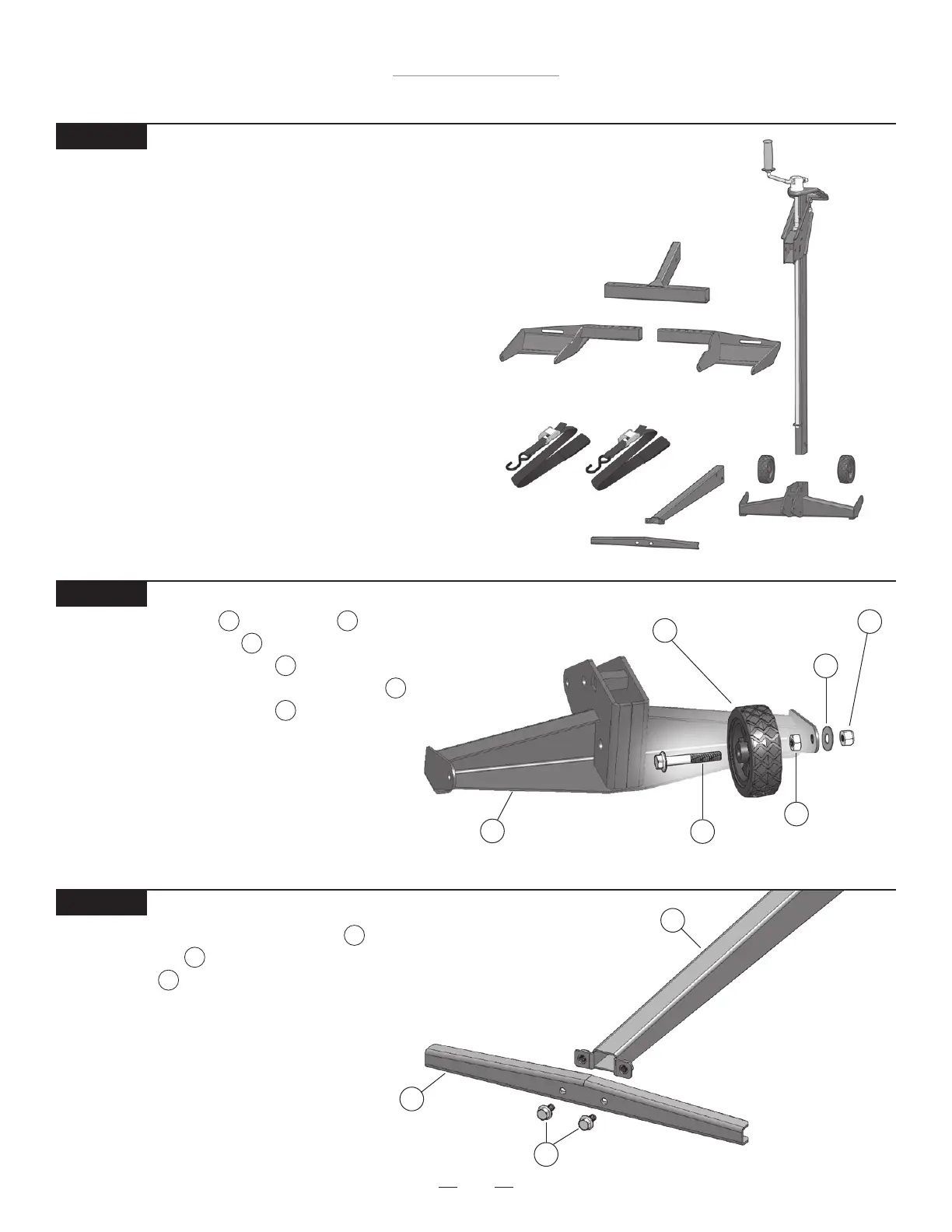

STEP 1
Remove lift from package.
Inventory items to be certain all parts and hardware
are present. If any parts or hardware are missing,
please contact MoJack at 1-877-575-3173 or
email us at parts@themojack.com.
Base Support Channel
5
Base Floor Tube
3
Flange Bolts
12
STEP 3
5
Assemble the Base Support Channel to the
Base Floor Tube by inserting the two
Flange Bolts and tighten with 12mm wrench.
3
12
STEP 2
Assemble the Wheel to the Base
by inserting Flange Bolt through the
wheel and threading the Nut . Insert
Flange Bolt through the Base, add Washer
and secure with Nylock Nut .
Repeat with second Wheel.
Note: Do not over tighten Nylon Lock Nut.
Base
4
Wheel
8
Flange Bolt
11
Washer
14
Nut
15
Nylock Nut
13
8 4
11
15
14
13
