Electrical Systems
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
5•134
EXECUTIVE
If 50 amp shore power service is available, all that is necessary is to
connect the motorhome to the 50 amp shore power service using the supplied
shore power cord. The cord is located in the compartment on the driver’s side
of the motorhome. After connecting the unit to shore power, wait approximate-
ly one minute for the inverter to “stabilize” charging of the batteries before
starting air conditioners or other large AC loads. In many instances 50 amp
shore service is not available. Proper electrical adapters must be used to
connect the supplied shore power cord to the shore service available. When
connecting to anything other than 50 amp shore service, use caution not to
overload the supplied shore service breaker. Appliances and outlet loads will
have to be operated in sequence, rather than all at the same time.

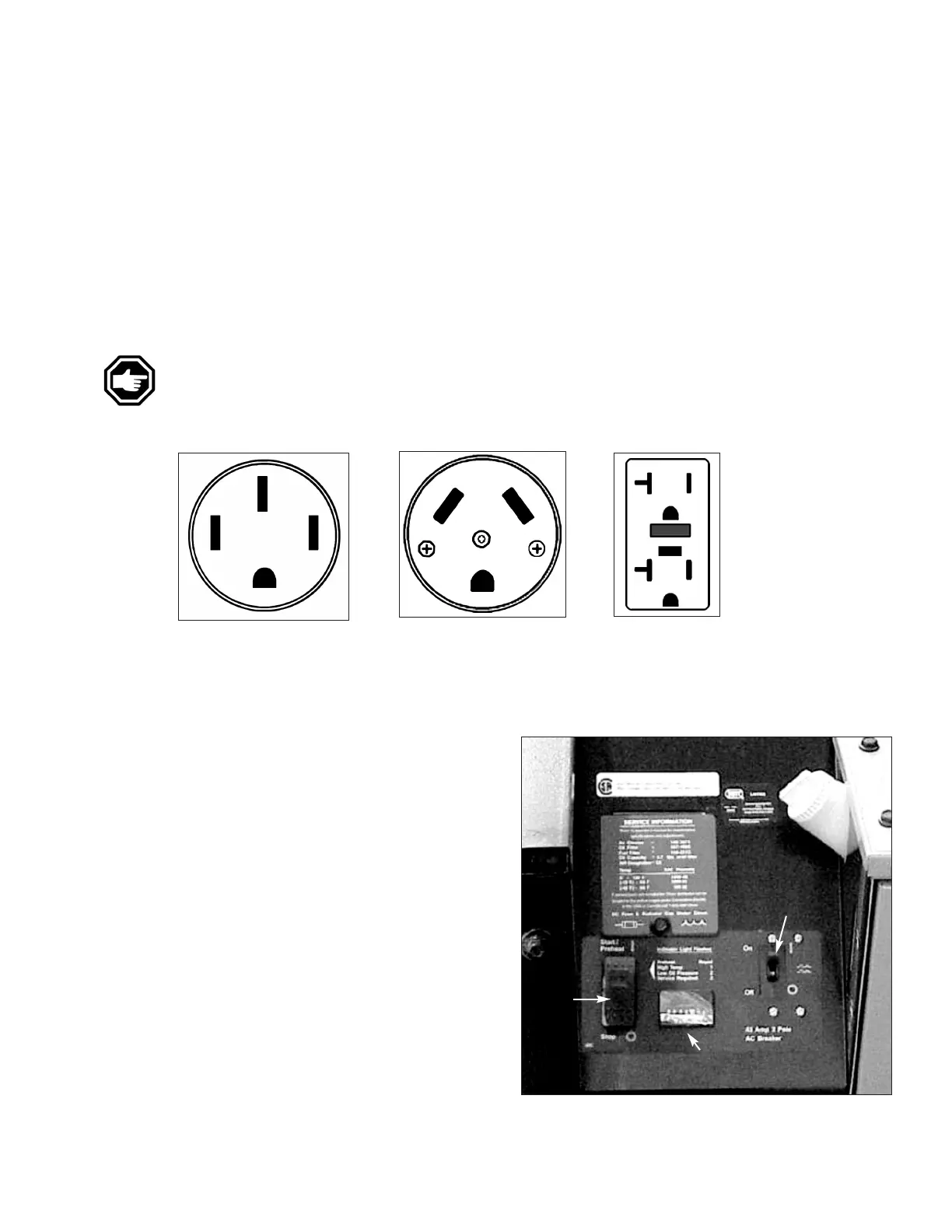

NOTE: Below are the three types of shore power outlets most
commonly used.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
The generator is located in the front compartment
of the motorhome. The generator can be started from
the following locations:
• The generator remote switch, located on the
shifter panel.
• The generator control panel, located on the
generator.
Generator control panel:
1. Start/Stop Switch.
2. Hour Meter.
3. Output Breaker.
50 AMP Outlet.
30 AMP Outlet. 20 AMP Outlet.
Getting Started
GENERATOR
Generator Control Panel
2
1
1
3
