Monaco Executive 2001 - Dash Gauges and Indicators; Dash Lamp Indicators Explained

Electrical Systems
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
5•162
EXECUTIVE
1. Low Water:
Indicates coolant level in the overflow tank is below acceptable level.
2. Ant Up:
Indicates TV antenna is not resting flat in the storage cradle.
3. Gen Door:
Indicates the generator door is open.
4. Step out:
Alerts the driver to possible problem with the entry step. Usually the step is
in the extended position.
5. Check Gauge:
Alerts the driver to a problem which can be seen on the dash gauges.
6. ABS:
Indicates ABS possible fault in the ABS Brake system. Also indicates faults
codes for service technicians.
7. Alt Fail:
Indicates a failure within the alternator charging system.
8. Left Arrow:
Indicates left turn indicator circuits active.

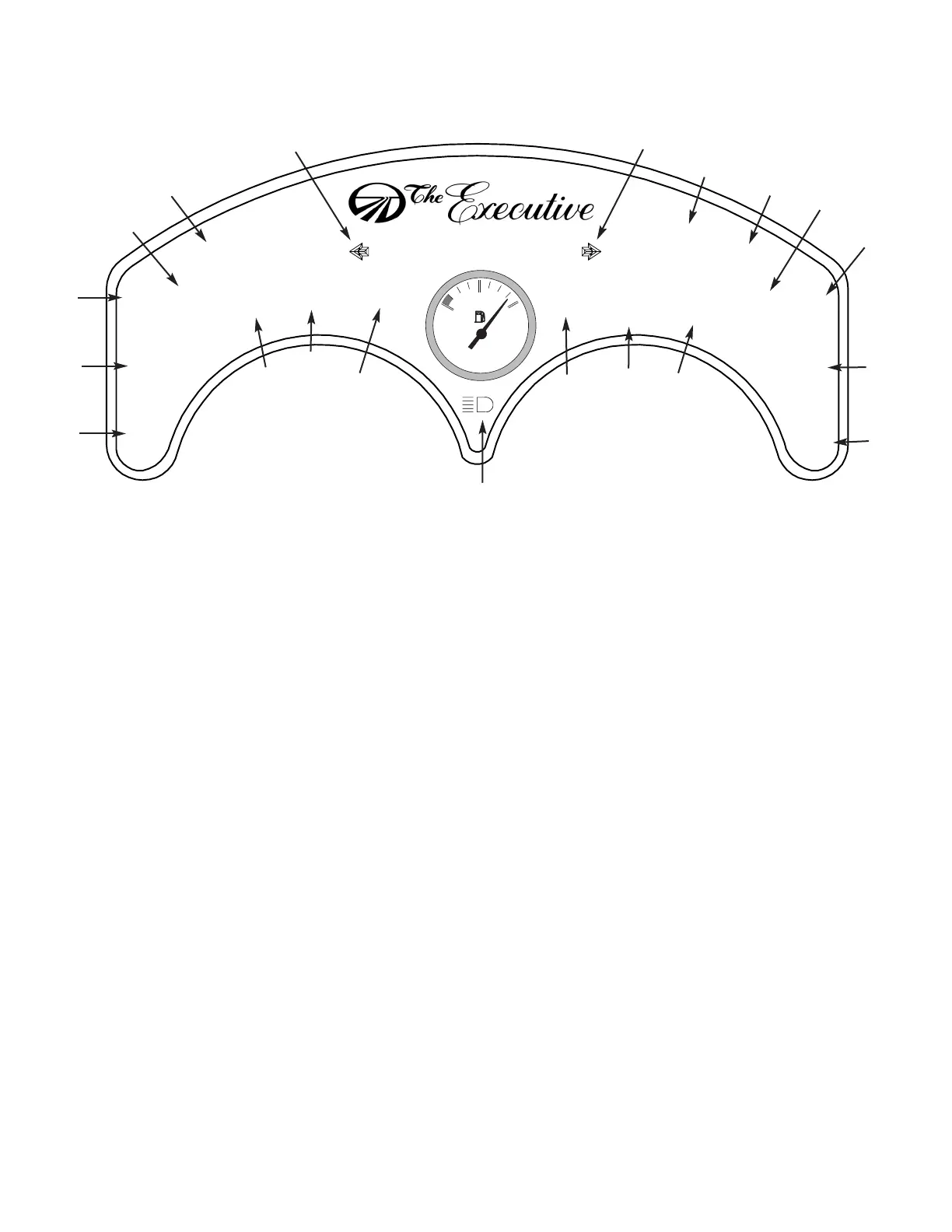

DASH LAMP INDICATORS
