NOTE: Be sure you have sufficient clearance on the inside of the
motorhome (drivers seat, etc.) before you retract the slide-out room.
If your motorhome has ceramic tile floor, make sure the the floor is
clean before you retract the slide-out room. Dirt or grit that is
trapped under the slide-out room could scratch the floor. Never move
the motorhome without having the slide-out room retracted.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
To move the slide-out room manually,
retract the motorhome leveling jacks (see
“Leveling Jacks”). Locate the Slide Room
hydraulic pump on the lower left front frame
of the chassis. Turn the T-handles counter-
clockwise approximately six turns each. The
T-handles may turn easily at first, however,
they will become difficult to turn as the
internal springs are compressed. The room
may move slightly as the valves are opened
and internal pressure is released. At this point,
it will be possible to push the slide-out room
back into the travel position.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Manually Overriding Your Bedroom Slide-Out
1. Disconnect the battery cables from the battery.
2. Lift up the mattress and base board to gain access to the
slide-out mechanism.
3. If the bedroom slide-out motor has a lever on the back
side, rotate the lever counterclockwise about 1/8 turn
(looking from the rear of the motor). This will release the
brake that locks the room in place. If the motor does not
have a lever, use a 1/2” wrench to remove the four motor
mounting bolts. Remove the motor.
4. Use an appropriate wrench (a 3/4” wrench/ratchet or an
adjustable wrench) on the override to move the room in or
out. The override is located on the opposite side of the
slide-out rail from the motor.
5. Once the room is in, apply pressure to the wrench so that
the room is sealed. Return the brake lever to it’s normal
downward position to lock the room in place. Install the
transit bar (if so equipped). If the motor does not have a
brake lever, apply pressure to the wrench so that the room
is sealed and install the transit bar (if so equipped).
Appliance & Equipment
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
EXECUTIVE
3•53
Manual Override
Manual Override -
Bedroom Slide-Out

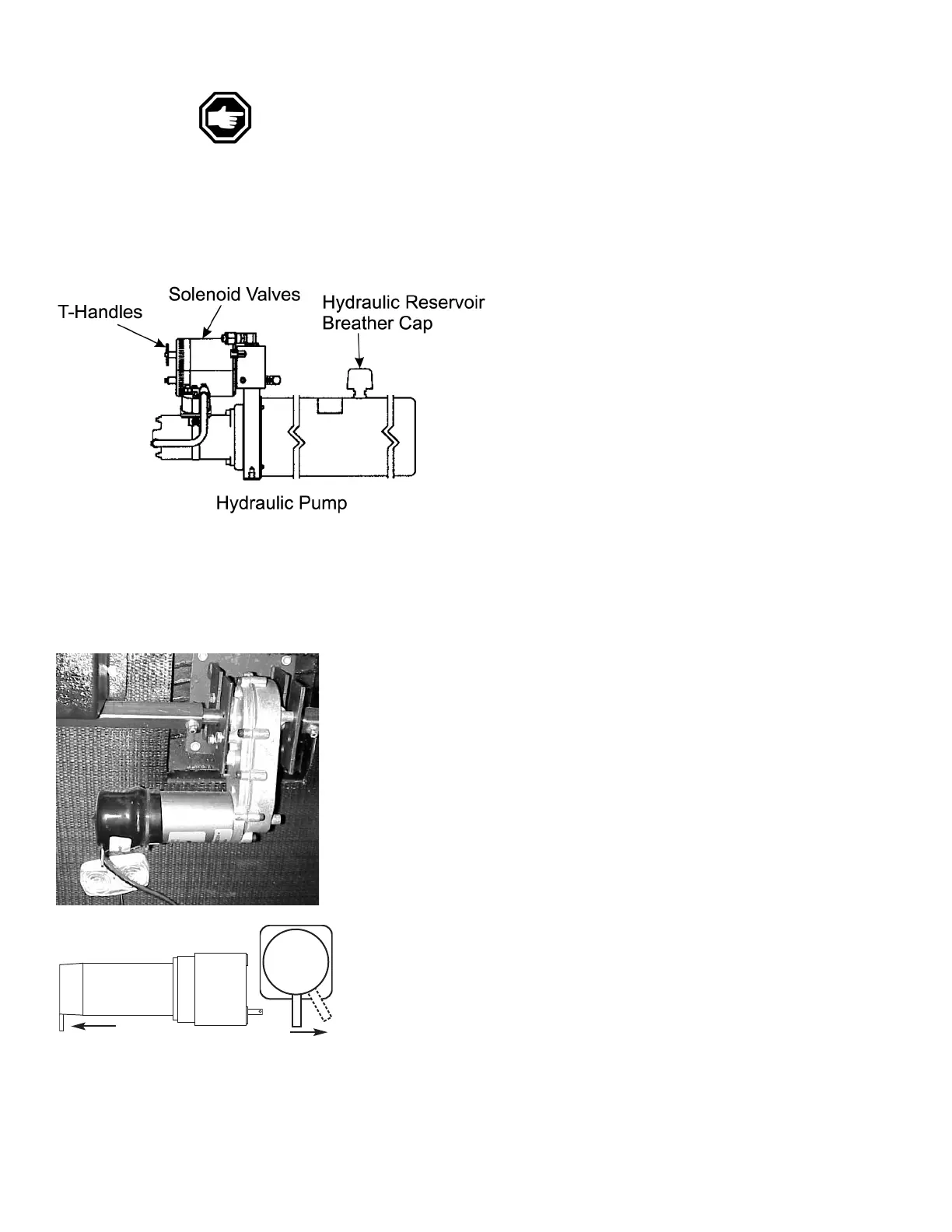

Location of slide motor lever.
Brake lever.
Rotate approx.30°
counterclockwise
to release the
motor brake.
