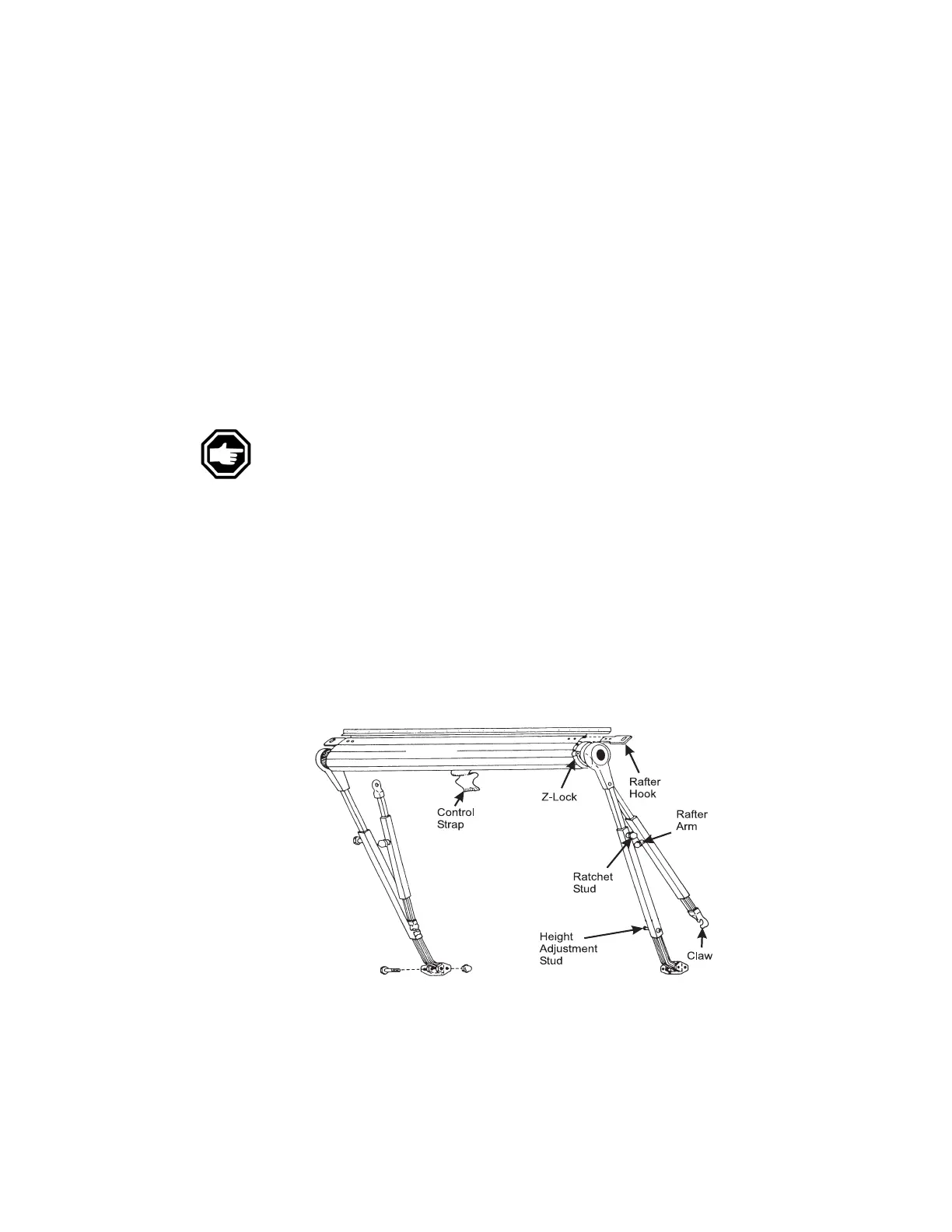

To Extend the Patio Awning:
1. Insert the pull rod into the Z-Lock lever and pull down (fig. 1). This
releases the awning.
2. Insert the pull rod into the loop of the center control strap and unroll the
awning by pulling it toward you (fig. 2). Step under the awning and roll
or fold the control strap toward the backside of the roller and tuck it
under the restraining strap.
3. Release the rafter arm by pulling outward on the cap of the ratchet stud.
Raise the arm upward toward the case (fig. 4).
4. Lock the rafter arm in position by pressing down on the steel main arm
bar (fig. 5) until the ratchet stud clicks. At this point the fabric will be taut.
5. Raise the awning to the desired height by releasing the snap stud on
the main arm and pushing up and out on the roller assembly (fig. 6).
6. Repeat steps 3-5 for the other end of the awning.
NOTE: Leave the Z-Lock open when the awning is open to avoid
damage.
Extended or “CARAVAN” position:
1. Insert the pull rod into the Z-Lock lever and pull down (fig. 1). This
releases the awning.
2. Insert the pull rod in the loop of the center control strap and unroll the
awning to the desired extension.
3. To prevent billowing, release and raise the rafter arm (fig. 3) and hook the
claw of the arm into the slot of the rafter lock (fig. 7). This will require
the awning to be extended approximately 4½ feet.
4. Raise the awning to the desired height by following step 5 from above.
To Retract the Patio Awning:
1. Release the ratchet stud of the main arm and lower the awning to its
bottom most position.
2. Release the ratchet stud of the rafter arm and lift the claw out of the
rafter hook.
3. Place the claw casting on the protruding height adjustment stud. To lock
