MONO Bx Eco-connect Ovens 4/5/10-Tray | Steam Installation and Operation Manual

MONO FG0BX-UK-MAN-0200 | Rev. A21 (July 2021)

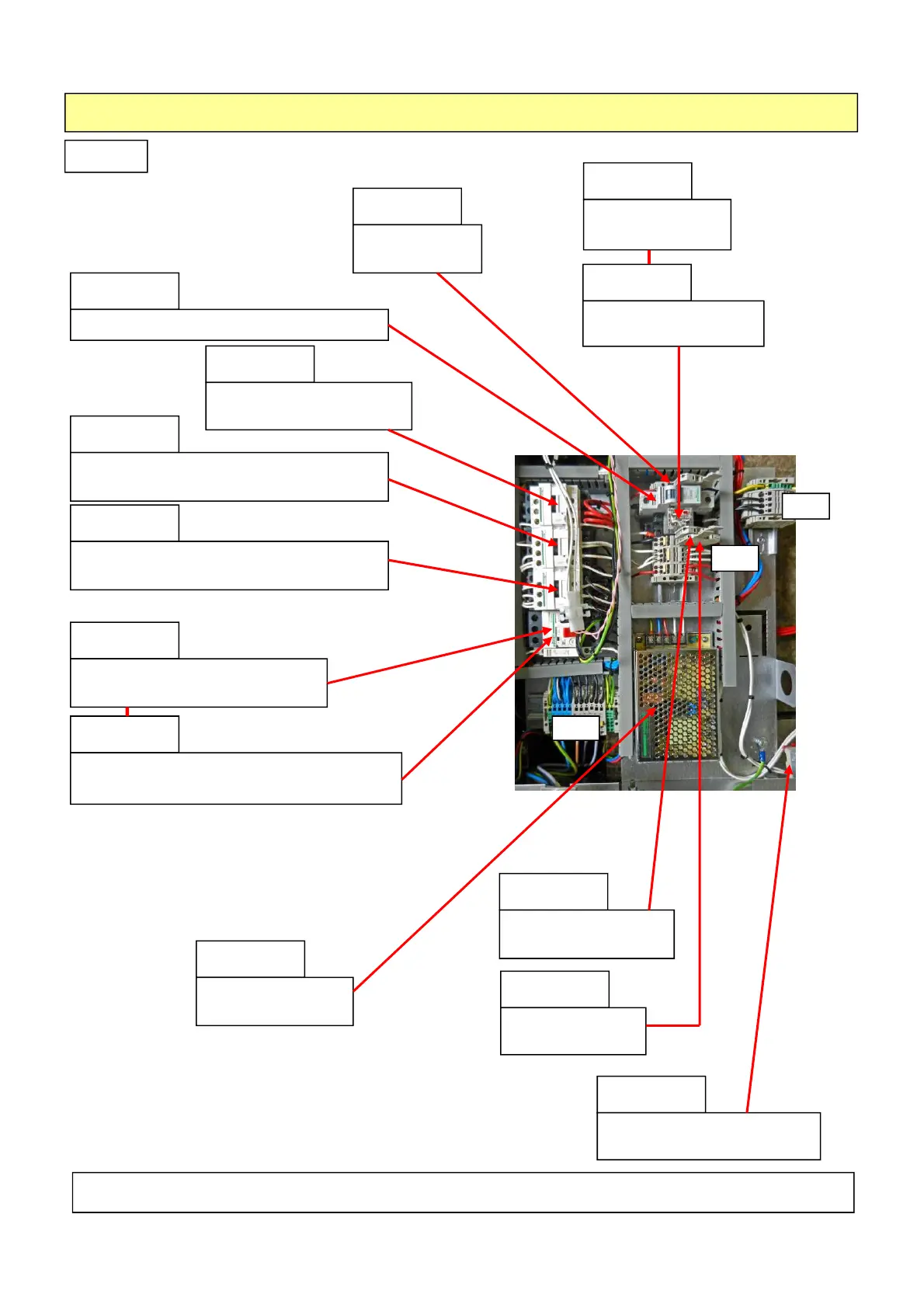

PART 4 / SECTION 2 – 4/5 TRAY 40 X 60 – MAIN PANEL

PART 27

FAN FUSE

B842-85-025

PART 3

CONTROL CIRCUIT MCB – B872-22-062

PART 28

AUX SOCKET FUSE

B842-85-039

PART 25

LIGHT FUSE

B842-85-042

PART 22

OVERHEAT THERMOSTAT

B888-30-014

PART 1

POWER SUPPLY

B801-93-005

PART 8

ELEMENT CONTACTOR

B801-08-021

PART 7

FAN MOTOR REVERSE CONTACTOR

B801-08-031

PART 6

FAN MOTOR FORWARD CONTACTOR

B801-08-031

PART 5a

FAN MOTOR OVERLOAD UNIT

B801-03-020

PART 5b

FAN MOTOR OVERLOAD AUX CONTACT

B801-14-012

PART 2a

LIGHT RELAY

B723-37-004

PART 2b

LIGHT RELAY BASE

B723-36-001

TB1

TB2

TB3

PART NUMBERS REFER TO DRAWING M158E25-75200 IN ELECTRICAL MANUAL
