COMPONENT MAINTENANCE MANUAL
BASIC PN 15900
38-31-09
Page 2
May 17/02
1. Bowl Assembly
2. Timer
3. Tank and Top Assembly
4. Motor-Pump-Filter Assembly
5. Drain Valve Assembly
6. Solenoid Valve Assembly
7. Liquid Level Transmitter
8. Tie Down Bracket
9. Holddown Rod

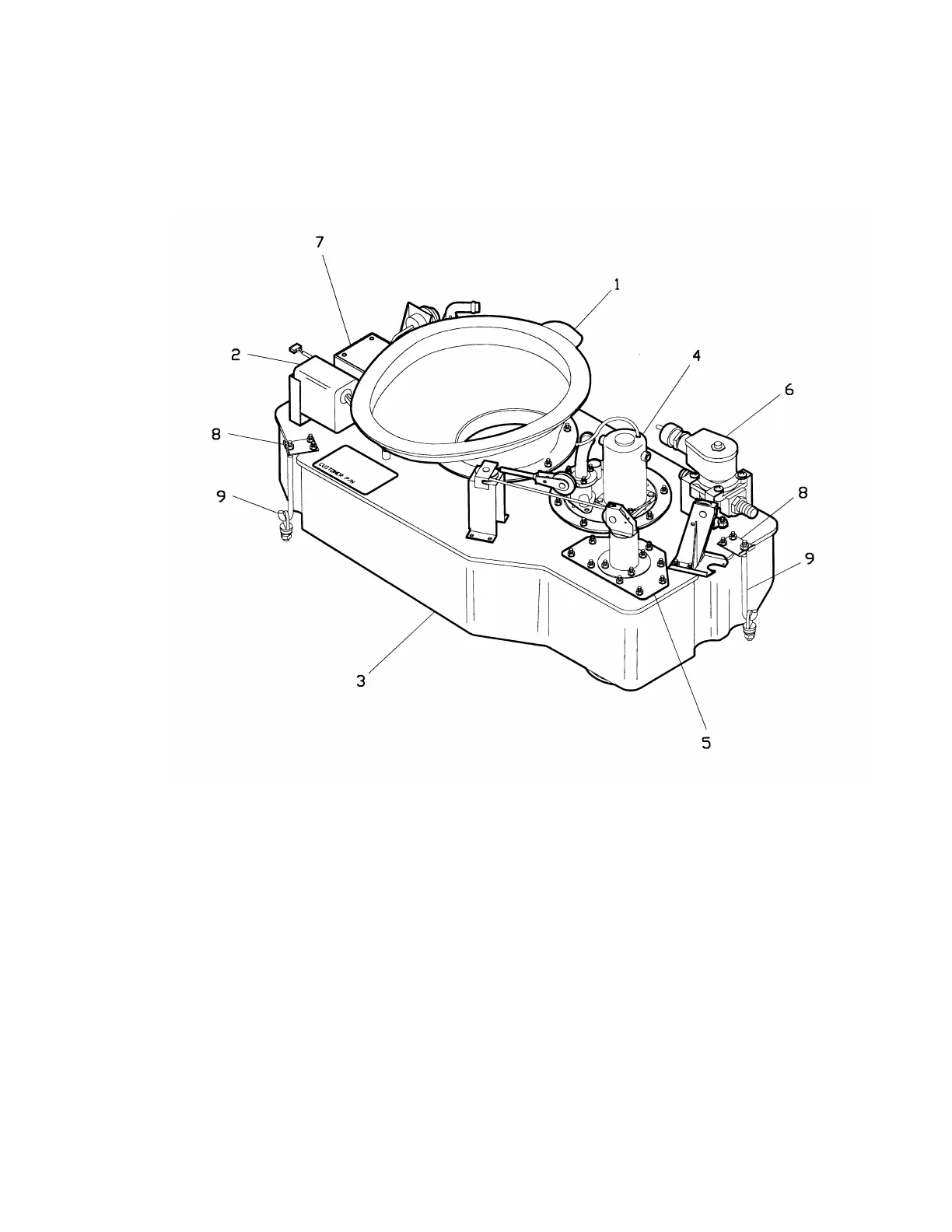

Typical Toilet Assembly
Figure 1
