COMPONENT MAINTENANCE MANUAL
BASIC PN 15900
38-31-09
Page 503
Feb 23/04

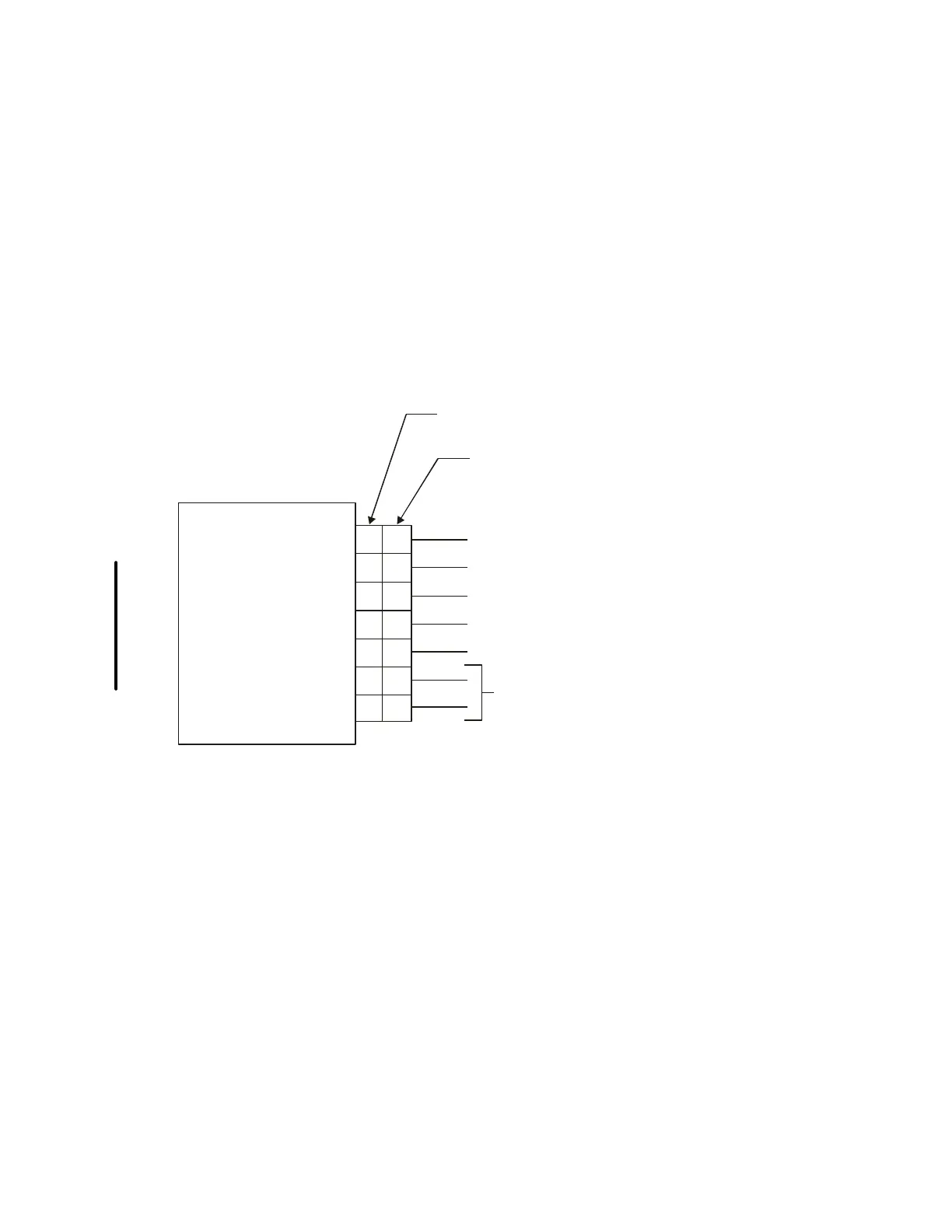

Transmitter Schematic Diagram
Figure 501
LIQUID
LEVEL
TRANSMITTER
13503-106
OR
13503-110
1 1
2 2
3 3
4 4
5 5
6 6
7 7
SPARES
+28 VDC
28 VDC RETURN
CASE GROUND
PRECHARGE INDICATION (OUTPUT)
FULL TANK INDICATION (OUTPUT)
MS24266R14B7S6 PLUG
MS24264R14B7P6 CONNECTOR
