INSTALLATION
size
Less than 8”
Wallboard height +5”
8”~11”
Wallboard height +9”
11”~13”
Wallboard height +11”
13”~16”
Wallboard height +14”
Space height
4. This mount is intended for flat screen televisions (LCD, LED, Plasma) only. The
mounted television should be between 55 ~ 80" and weigh between 55~132 lbs.

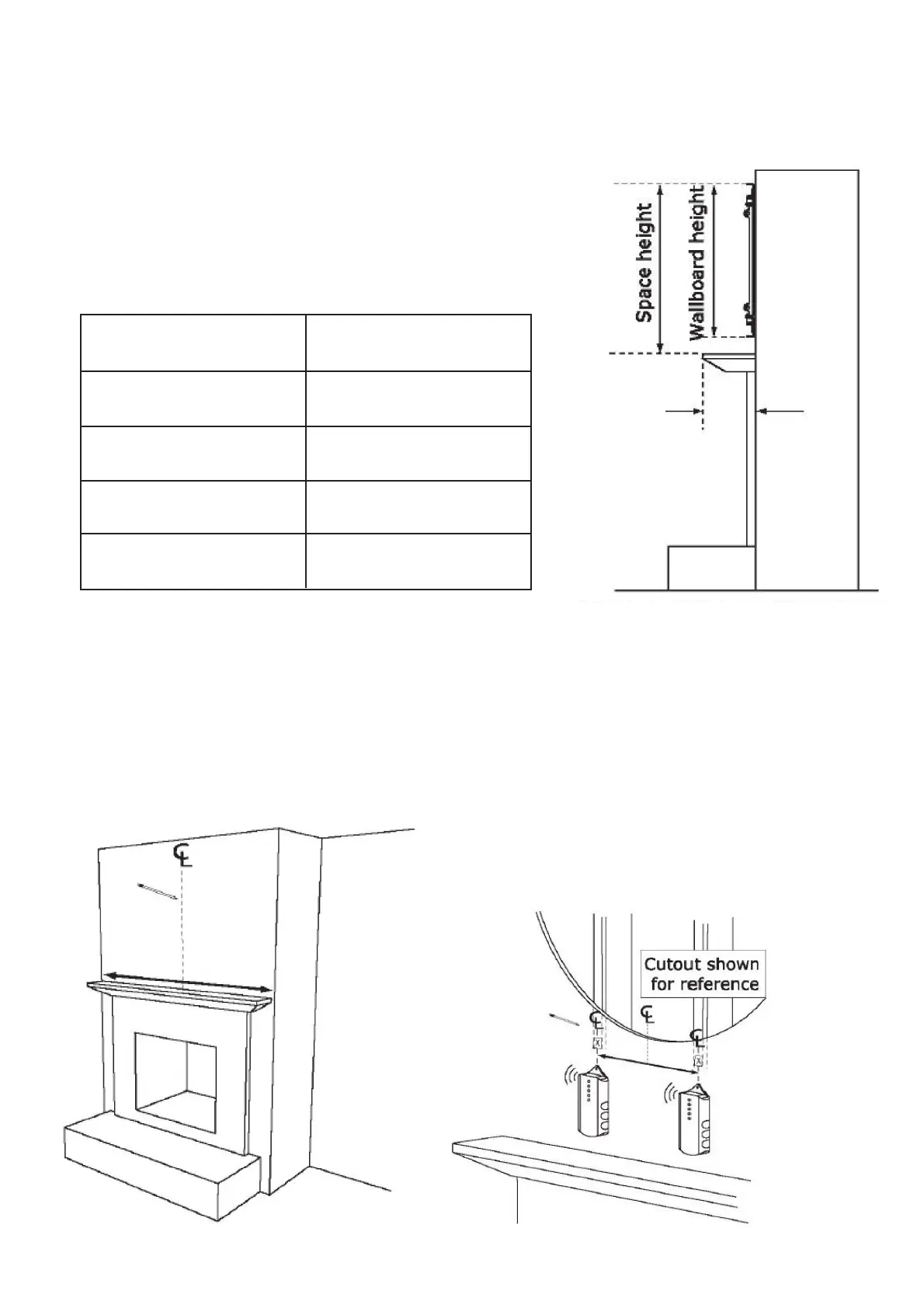

5. The vertical space above the mantel must be greater
than the height of the wallboard .The required vertical
space depends on how far the mantel extends out
from the wall.
Use a tape measure to determine the center point of the mantel. Mark the centerline with a
pencil or tape.
Use a stud finder to locate the two studs on the wall and measure the distance between the
two.
5
Mantel
Extends
