Monroe PLOW User Manual

10
IItteemm QQtt
yy
.. PPaarrtt NNuummbbeerr DDeessccrrii
pp
ttiioonn

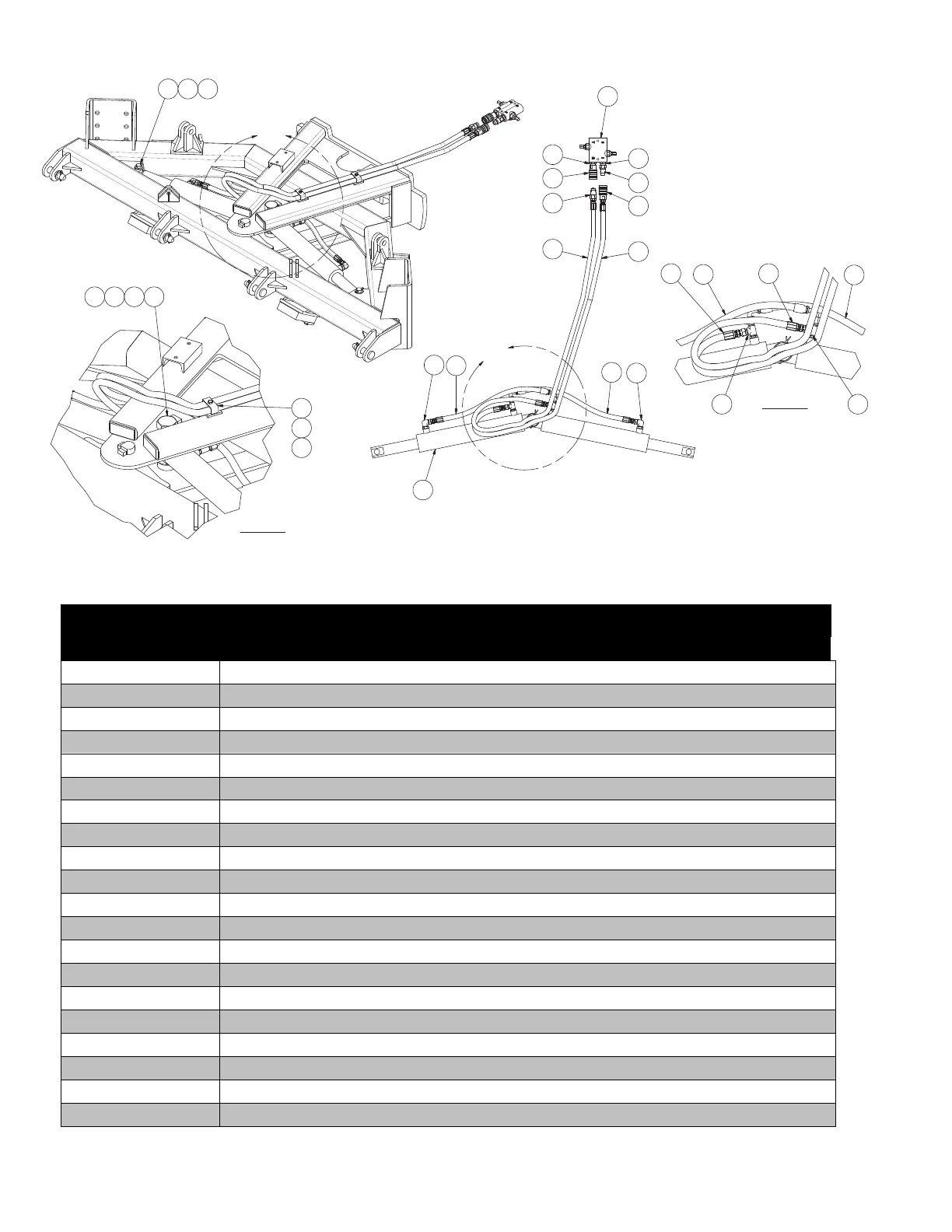

0000111100887700 RREEVVEERRSSIINNGG KKIITT,, PPLLOOWW,, 33 XX 1155 CCYYLL,, NNIITT,, HHDD 55"" PPUUSSHHFFRRAAMMEE
1 2 00121641 CYLINDER,3x15,DA,FOR UPA-FULL
2 2 05037297 FITTING,COUPLING,HYD,.5"MNPT
3 2 05037298 FITTING,COUPLING,HYD,.5"FNPT
4 2 6801-8-10 HYD FITNG,ADAPTER 90
5 2 6804-8-10-8 HYD FITNG,TEE
6 2 6401-10-8 HYD FITTING,7/8 ORB x 1/2
7 2 00055000 CLIP,HOSE HOLD DOWN,REVERSIBLE
8 4 05022026 PIN .250 x 2.000 OA,ROLL
9 4 05021202 BUSHING 1.50x1.00x10GA ZC
10 2 05022040 PIN 1.000 x 4.250 NO HEAD
11 1 05043066 VALVE,CUSHION,.875-14ORB,30GPM
12 2 05010620 BOLT .313-18 x 1.50 G8 HHCS ZC
13 2 05020909 NUT .313-18 GC TOPLOCK C&W
14 2 05044067 HOSE ASSY,.5"ID,26"OAL,2WIRE
15 1 05044068 HOSE ASSY,.5"ID,91"OAL,2WIRE,
16 1 05044069 HOSE ASSY,.5"ID,99"OAL,2WIRE,
17 1 00121642 BOLT MOD,1.50-6x8.00,.250 HOLE
18 1 05020401 NUT 1.50-6 G2 SLHEX ZC
19 1 05022005 PIN .250 x 3.000 COTTER
20 2 00110867 BUSHING 2.500 ODx1.563 IDx.812
DETAIL A
SCALE .15
DETAIL B
SCALE .15
A
B
14
14
1615
5 5
10 8 9
7
12
13
4
4
14
14
16
15
1
3
2
3
6
2
6
11
17181920
See page 16
