17

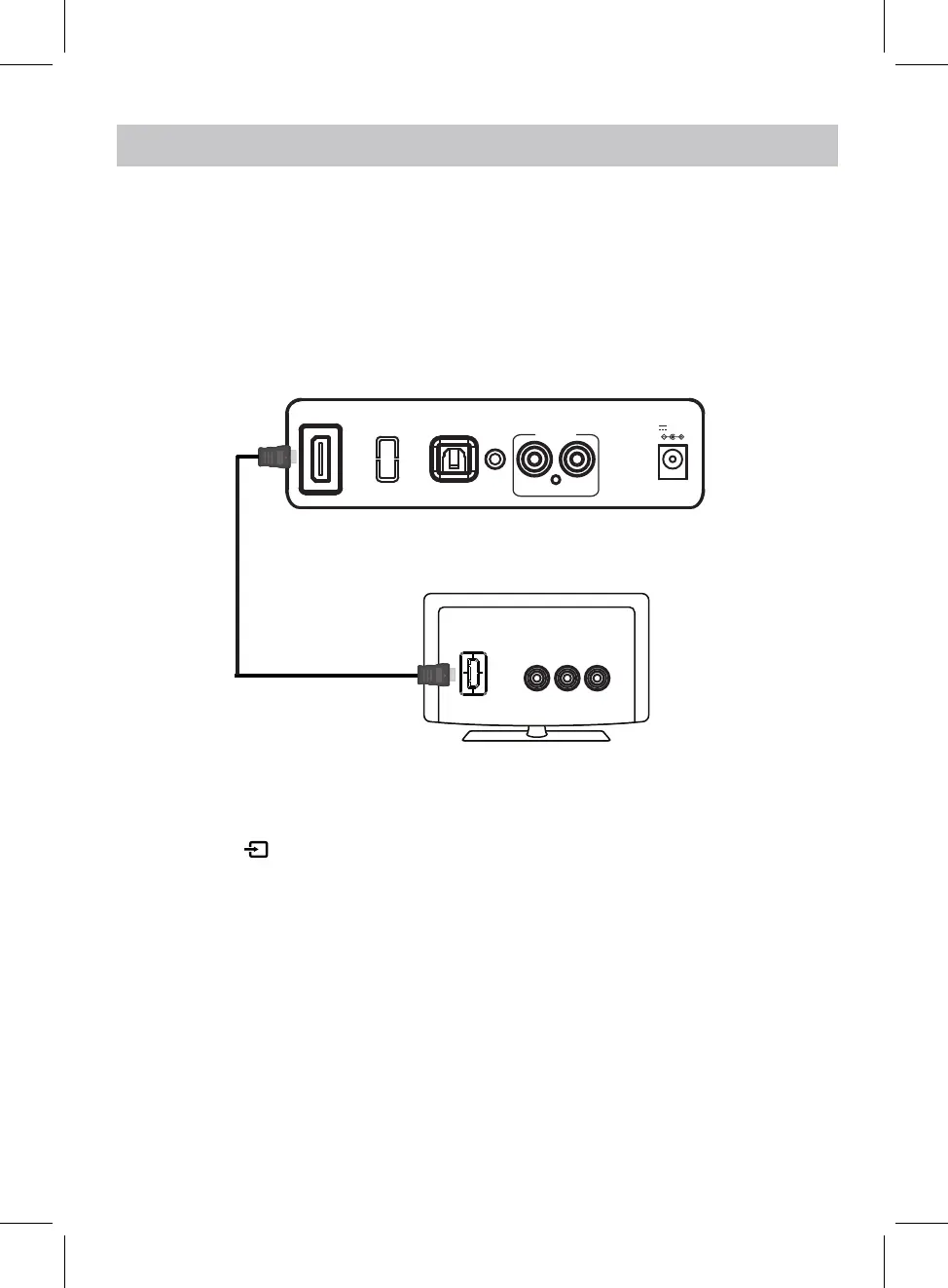

HdMI IN OPERATION
TV with HDMI IN arc port can be connected to this unit, and play audio through the
1. Plug one end of the HDMI cable into the HDMI IN arc port on the unit.
2. Plug the other end of the HDMI cable into the HDMI IN arc port on TV.
LR
Video
5. Power on the connected TV and start playback as usual.
3. Power on the unit as previously explained.
Rear View
HDMI IN arc
Explanation:
ARC (Audio Return Channel)
OPTICAL IN
LINE IN
AUX IN
RL
DC IN
DC 16V, 3.5A
NOTE: The HDMI input channel only works for TV with HDMI IN with ARC feature.
HdMI IN arc
speakers.
HDMI IN arc port
of the TV
4. Press the button on the unit or remote control repeatedly, or press the HDMI
IN button on remote control directly to switch to the
HDMI IN mode, the HDMI IN
indicator on front of the unit will turn Green.
