S508 26” Electric Bicycle
©2019 MONSTERPRO 8

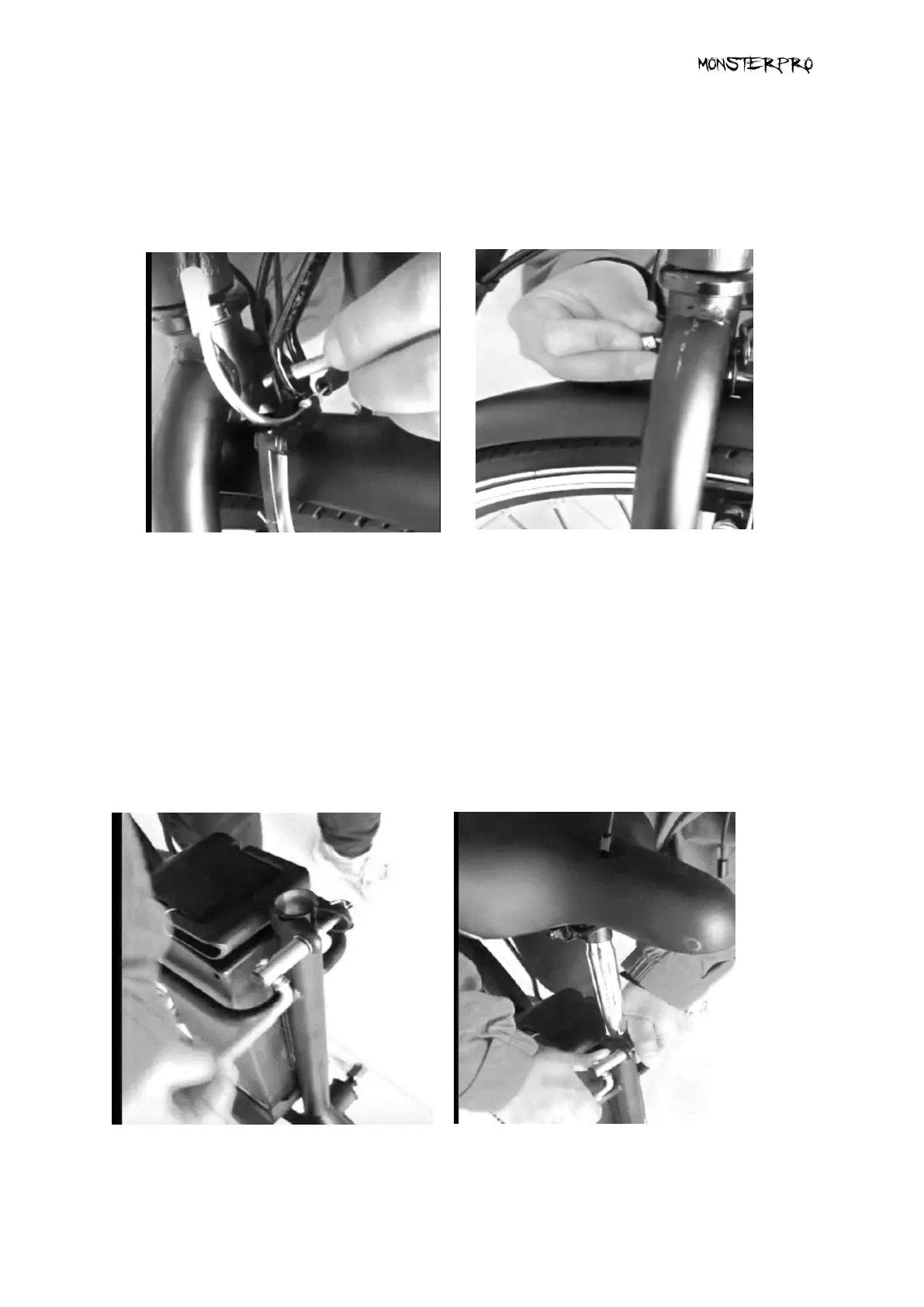

Front Mudguard & Headlight
Attach the mudguard and headlight’s mount stay to the lower of the twin fork blade mounts, using both a
small and large washer centre the guard and, tighten from the hex key end.
During tightening, recheck for centring and possibly raise or lower the guard.
Seat Post
Loosen the clamp and insert the seat post into the frame.
There is a minimum insertion marked on the seat post. This must be situated below the seat post clamp
when riding to avoid accidents and damage.
Slide the seat post down until it is to the desired height for riding.
Tight the clamp and make sure the post is un-moveable.
