Montarbo M3A User Manual

active, processor controlled, stage monitor M3A
8
ENGLISH

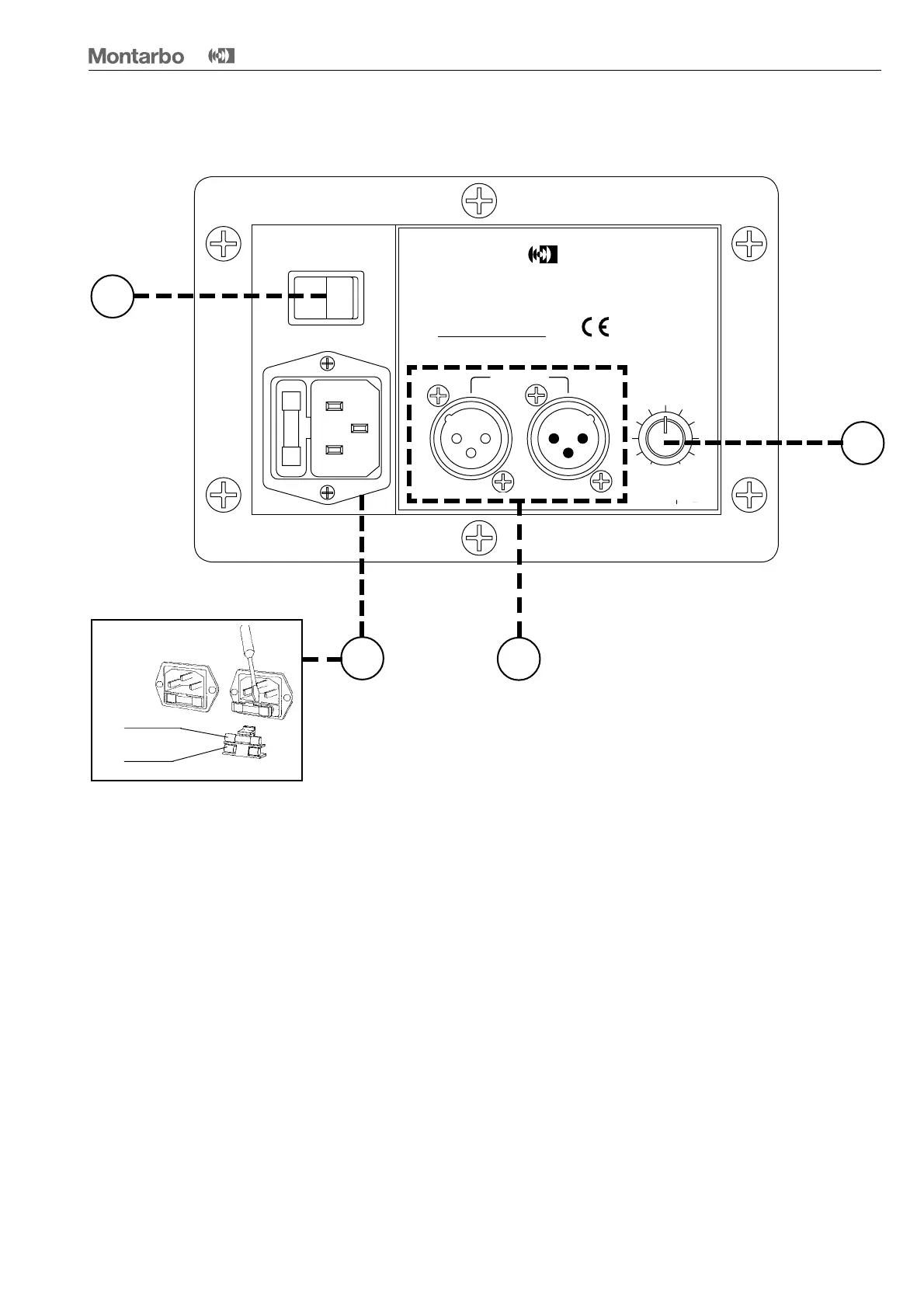

Control and connection panel
1 Balanced inputs - wired in parallel - with male and
female XLR sockets. This allows for any combination with
facility for daisy-chaining.
❚ Mixer output ➔ M3A input (female XLR socket)
❚ M3A output (male XLR socket) ➔ input of M3A to be
connected in parallel (female XLR).
☛ See 'connectors' and 'connection example' at pages
12 and 13
2 Main volume (VOL). Adjusts the input level of the built-in
power amplifier to adapt it to the output level of the mixer.
Note: if you are using a Montarbo mixer (or any other mixer
having an output level of 0dB), for optimum performance it
is advisable to set this control fully clockwise (to its maximum
setting).
3 Mains power switch.
4 I.E.C. power supply socket with built-in fuse.
