28

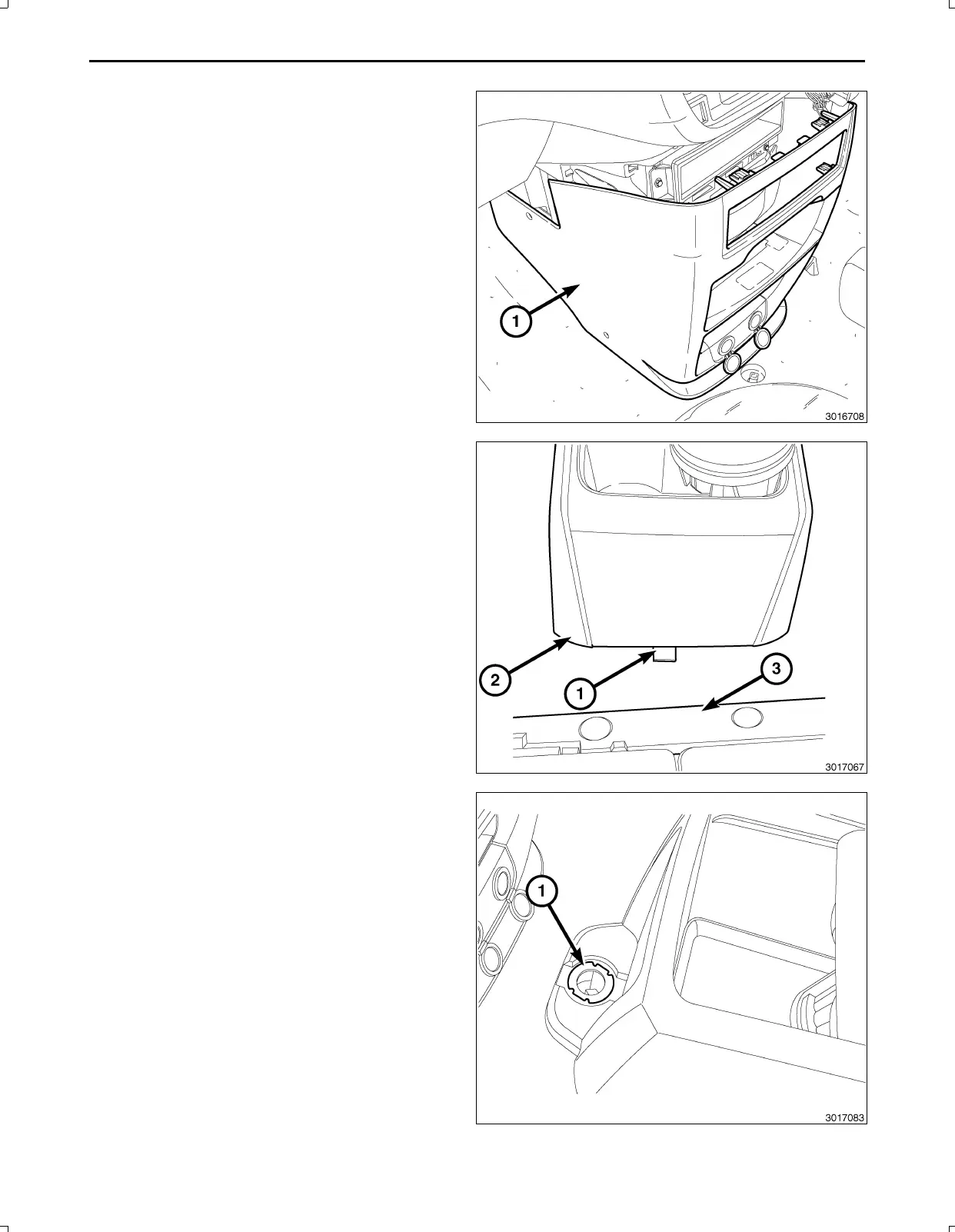

142.Position,connectandinstallthefourplasticretainers
thatsecuretheinstrumentpanelbin(1)totheinstru
mentpanel.
143.Positionthefloorconsole(2)intothevehicle.
144.Alignandpushthefloorconsole(2)rearwardtoen
gagetheretainingtab(1)fromthefloorbracket(3).
145.Installthefastener(1)tothefrontofthefloorconsole.
Tightenthefastenersecurely.
Jun30,2011K6861197
