(5/16 , 8mm)
(5/32 ,4mm )
"
"

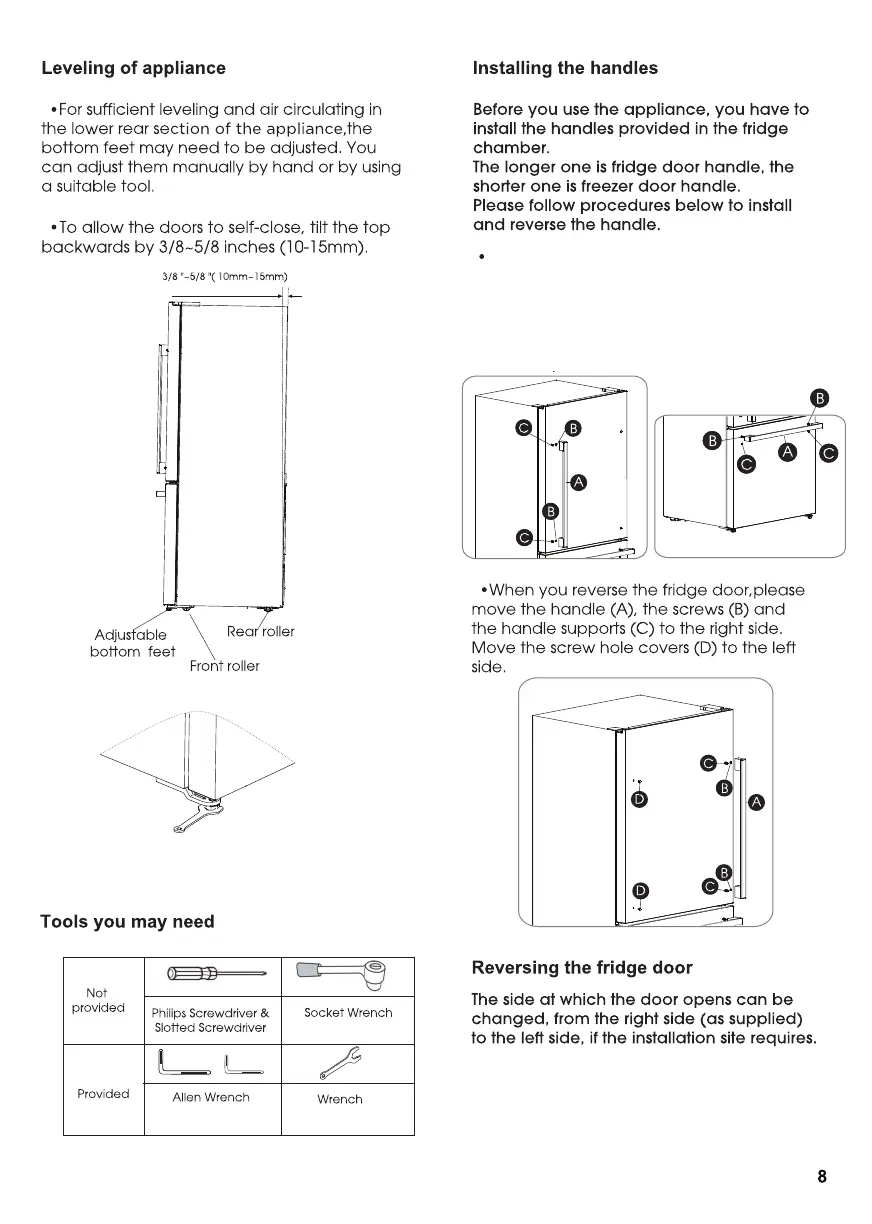

Take out the screw hole covers on the
doors, install the handle supports(C).
Place the handle (A) on the door by
fitting the handle over the handle supports (C),
then fasten the screws (B) with 3mm Allen
wrench (provided in plastic bag).
adjusting bottom feet
( 1/8 ,3mm )
"
