5.
11
3.
Connect 1/4’’ extension tubing to shutoff
valve outlet.
Flush the tubing. Turn the main water
supply on and flush out the tubing until
the water is clear. Then, shut the water
off at the water valve after about a quart
of water has flushed through the tubing.
4.
Outllet Valve
Packing Nut
Saddle-Type
Shutoff Valve
Compression Nut
1/4” Extension
tubing
Ferrule(sleeve)
Connect the extension tubing line with
the line on the back of the fridge via
the coupler. Fully insert the extension
tubing into the coupler, and then insert
the clip onto the coupler to lockup the
tubing. Do the same with the other
end. After both clips are inserted,
check the line to make sure it is held
firmly by the clip.
Note:
Ensure that the water line does not get
pinched or bent when installing.
This can result in improper water flow
through the line and will affect the
functionality of the fridge.
Clip
Water line Water line
Coupler
4.You need to purchase several item to
compalet this connection.You may find
these items sold as a kit at local hardware
store.
1. Power drill and 1/4’’ drill bit.
2. 1/2’’ or adjustable wrench.
3. Flatblade and Philips head screwdrivers.
1 ferrule
(sleeve)

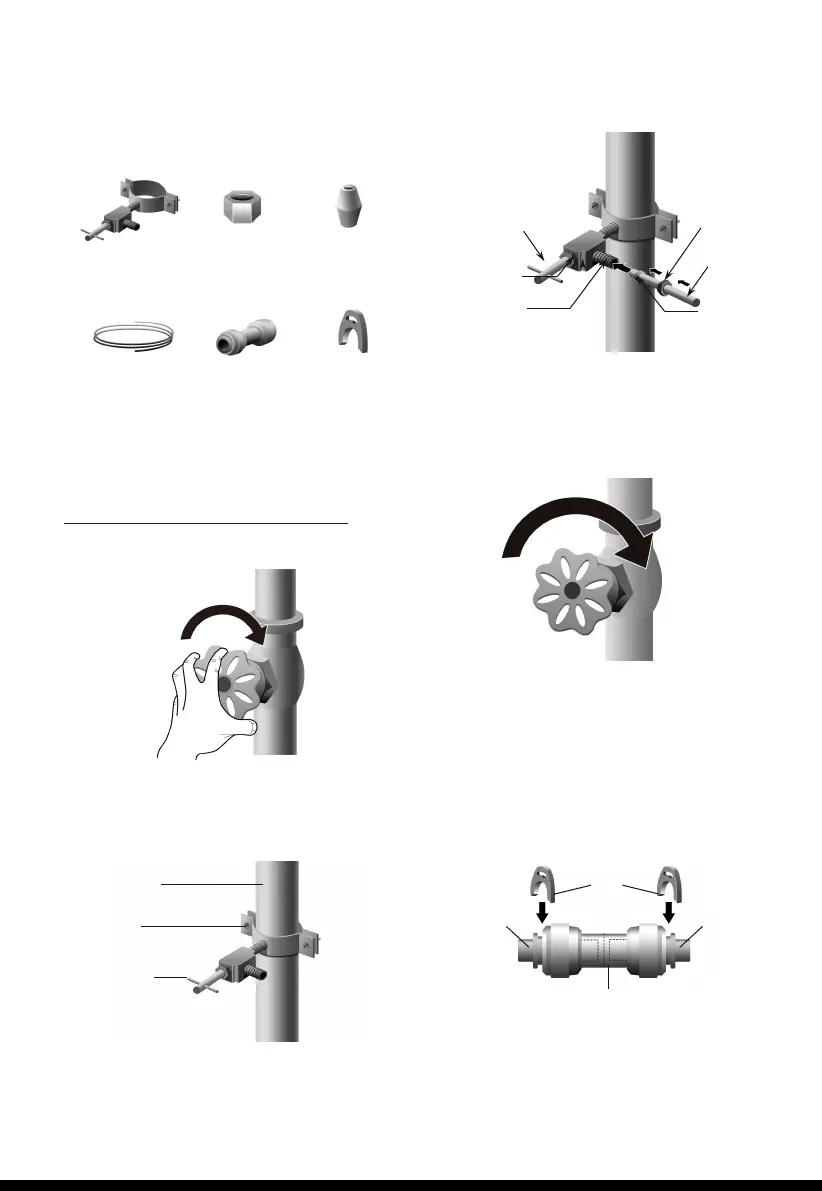

What you need to have before you start
Saddle-type
Shut offvalve
(1/4” outlet)
one 1/4”
compression
1/4” extension
tubing
1 Coupler 2 Clips
1.
2.
First, shut off the main water supply.
Connecting to the water supply line
Cold water line
Pipe clamp
Shut off Valve
Using a power drill and a 1/4’’ drill bit
drill into the cold-water line and
connect the saddle-type shutoff valve.
To Next Page
