Morel ULTIMO Series - Enclosure Volume Recommendations

ULTIMO SC 10’’
ULTIMO SC 12’’
ULTIMO TITANIUM 8’’
VB= 15lit (0.529 cu.ft)
VB= 35lit (1.236 cu.ft)
VB= 25lit (0.88 cu.ft)
Fb= 33Hz
Port- 2’’x9.4’’ long
( 6x23.8cm)
VB= 15lit (0.5 cu.ft)
Fb= 33Hz
Port- 2’’x17.7’’ long
( 6x45cm)

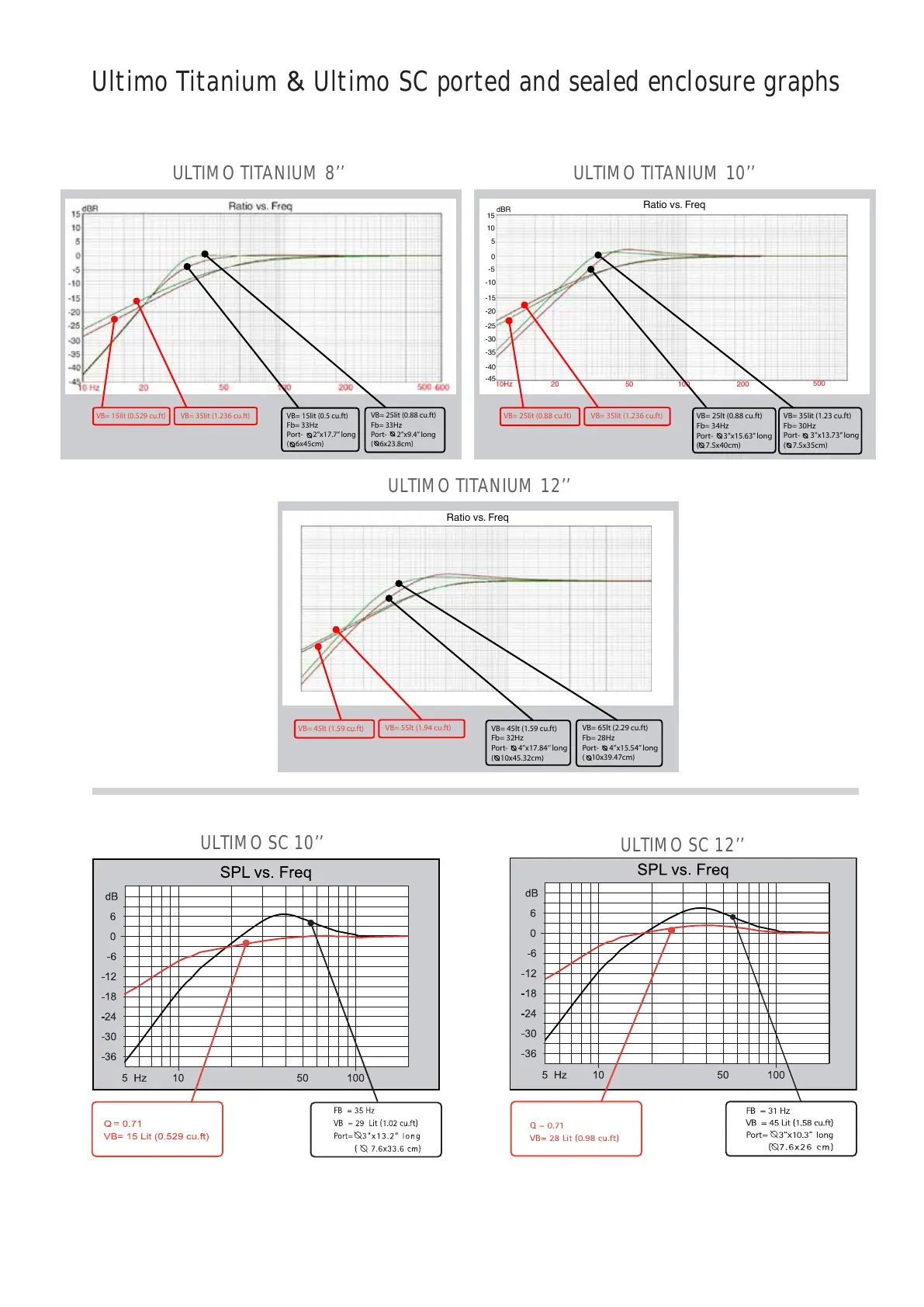

Ultimo Titanium & Ultimo SC ported and sealed enclosure graphs
ULTIMO TITANIUM 10’’
Ratio vs. Freq
VB= 25lit (0.88 cu.ft)
VB= 35lit (1.236 cu.ft)
VB= 35lit (1.23 cu.ft)
Fb= 30Hz
Port- 3’’x13.73’’ long
( 7.5x35cm)
VB= 25lt (0.88 cu.ft)
Fb= 34Hz
Port- 3’’x15.63’’ long
( 7.5x40cm)
-40
-45
-35
-30
-25
-20
-15
-10
-5
0
5
10
15
10Hz
dBR
20 50 100 200
500
Ratio vs. Freq
-40
-35
-30
-25
-20
-15
-10
-5
0
5
10
15
20
dBR
10Hz 20 50 100 200 500
Ratio vs. Freq
ULTIMO TITANIUM 12’’
VB= 45lt (1.59 cu.ft)
VB= 55lt (1.94 cu.ft)
VB= 65lt (2.29 cu.ft)
Fb= 28Hz
Port- 4’’x15.54’’ long
( 10x39.47cm)
VB= 45lt (1.59 cu.ft)
Fb= 32Hz
Port- 4’’x17.84‘’ long
( 10x45.32cm)
