A. PULLED MACHINE
Switch off the engine of the tractor and take off the ignition key.
Couple the linkage to the tractor drawbar.
Fix the pin and connect the PTO shaft on the PTO of tractor and fix the protection by the chain (07).
Push up the holder support turning it in up direction and be sure that lock pin is allocated in its own place.
(Fig. O9)
B. THREE POINTS LINKAGE MACHINE
Switch off the engine of the tractor and take off the ignition key.
Hook the machine to the three points tractor connection .
To compensate possible differences of upper arm, there are two fixing holes on the linkage.

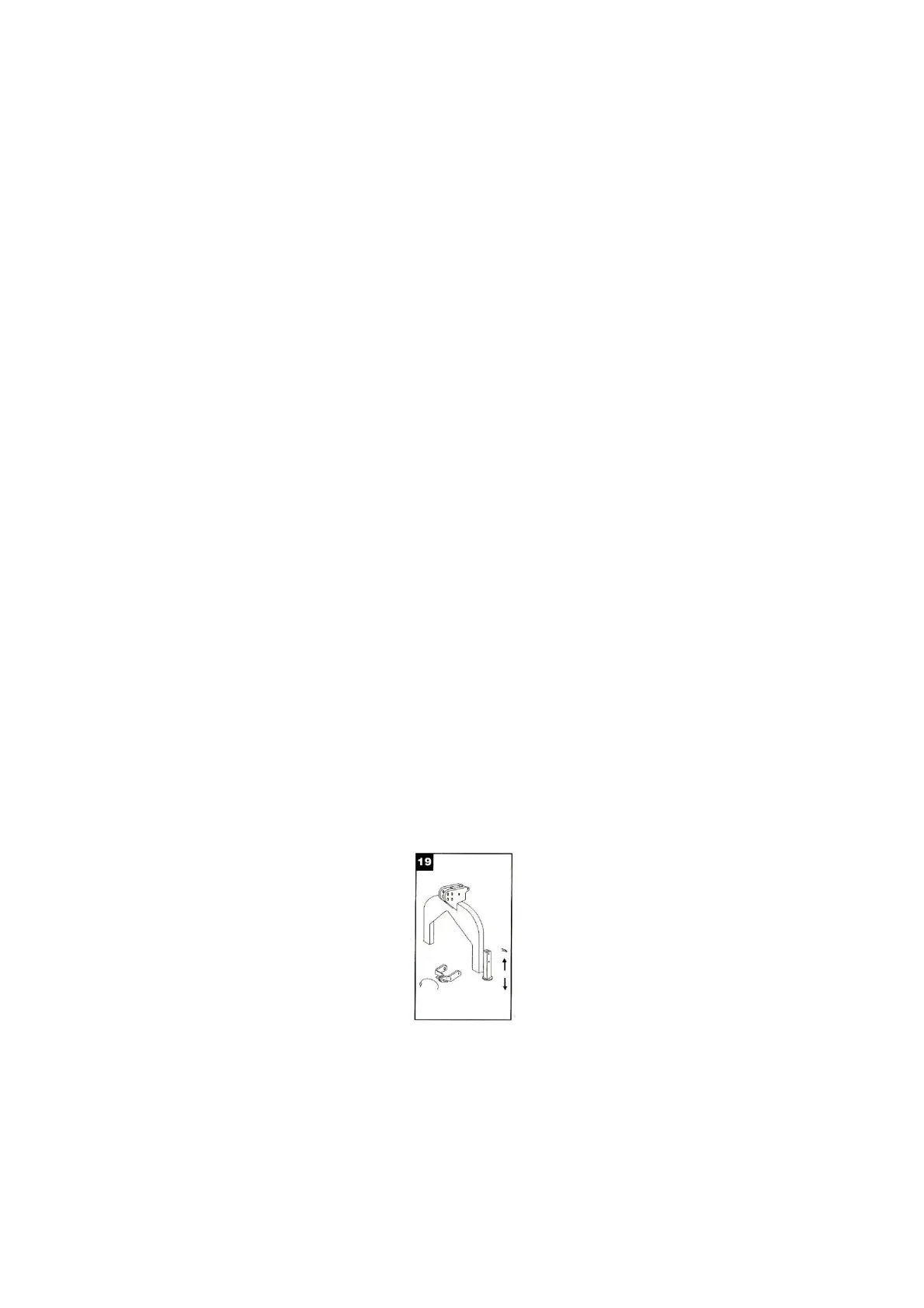

Push up the holder support. (Fig. 19)
For the connection to third point of lifting, there is a pin with two different diameter corresponding first or
second class of lifting.
Fix the coupling pins (both upper and lower) user the proper split-pins.
Adjust and lock the lower lifting arms to avoid lateral oscillations.
On the machines equipped with movable linkage make sure that hook linkage pin is fitted in .
These models are equipped by fork couplings with double pin to connect to
lower lifting arms.
It's enough to turn 180° the two couplings to have a connection first or second class. (Fig. 19)
Insert the cardan shaft to the tractor PTO shaft.
Make sure that protections are fixed by proper chains.
Push up the holder support and fix it in up position by proper split pin.
