morse SL-3 - Section 4 Throttle Cable Connection - Engine End

11
THE THROTTLE CABLE MUST BE DISCONNECTED FROM THE MOTOR BEFORE MAKING MOTOR IDLE
ADJUSTMENTS. ADJUSTMENT OF THE MOTOR IDLE WHILE THE THROTTLE CABLE IS STILL CONNECTED TO
THE MOTOR MAY CAUSE A JAMMING ACTION AGAINST THE IDLE STOP. AS A RESULT, THE CONTROL MAY
NOT FUNCTION PROPERLY AND DAMAGE TO THE CONTROL, THE CABLE AND/OR MOTOR COULD RESULT.
SECTION 4
THROTTLE CABLE CONNECTION - ENGINE END
4.1 Make sure the Control is in NEUTRAL DETENT.
4.2 The Fuel Lever should rest lightly against the Idle Stop
on the carburetor
4.3 Connect the Throttle Cable to the fuel lever.
THROTTLE CABLE MUST BE
FREE WHEN FUEL LEVER IS IN
THE IDLE POSITION TO
PREVENT HARD SHIFTING.

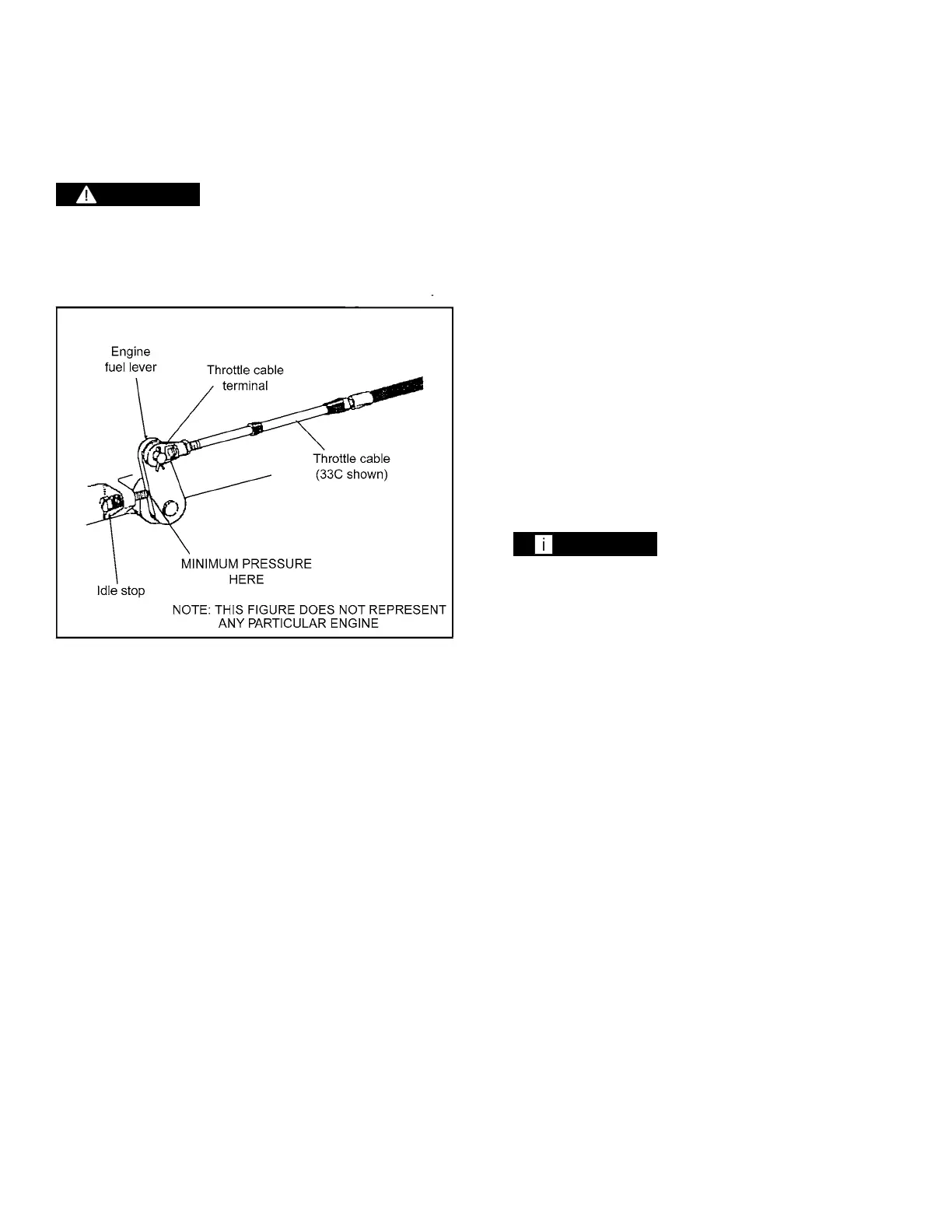

FIGURE 8 - THROTTLE CONNECTION
CAUTION
NOTE
