ON 3 WIRE SYSTEMS, REVERSE THE BLUE AND GREEN CONNECTIONS FOR OPPOSITE
“TRIM” OPERATION.
ON 5 WIRE SYSTEMS, REVERSE THE BLUE AND GREEN CONNECTIONS FOR OPPOSITE
“TRIM” OPERATION.
DO NOT CHANGE THE RED CONNECTION.
B. TRIM AND TILT SWITCHES
Refer to the wiring diagrams (Figure 10) for the correct “Trim” and “Tilt” switch connections and wire accordingly.
COLOR KEY
B = blue
G = green
P = purple
R = red
W = white
ABBREVIATION
Dn = down

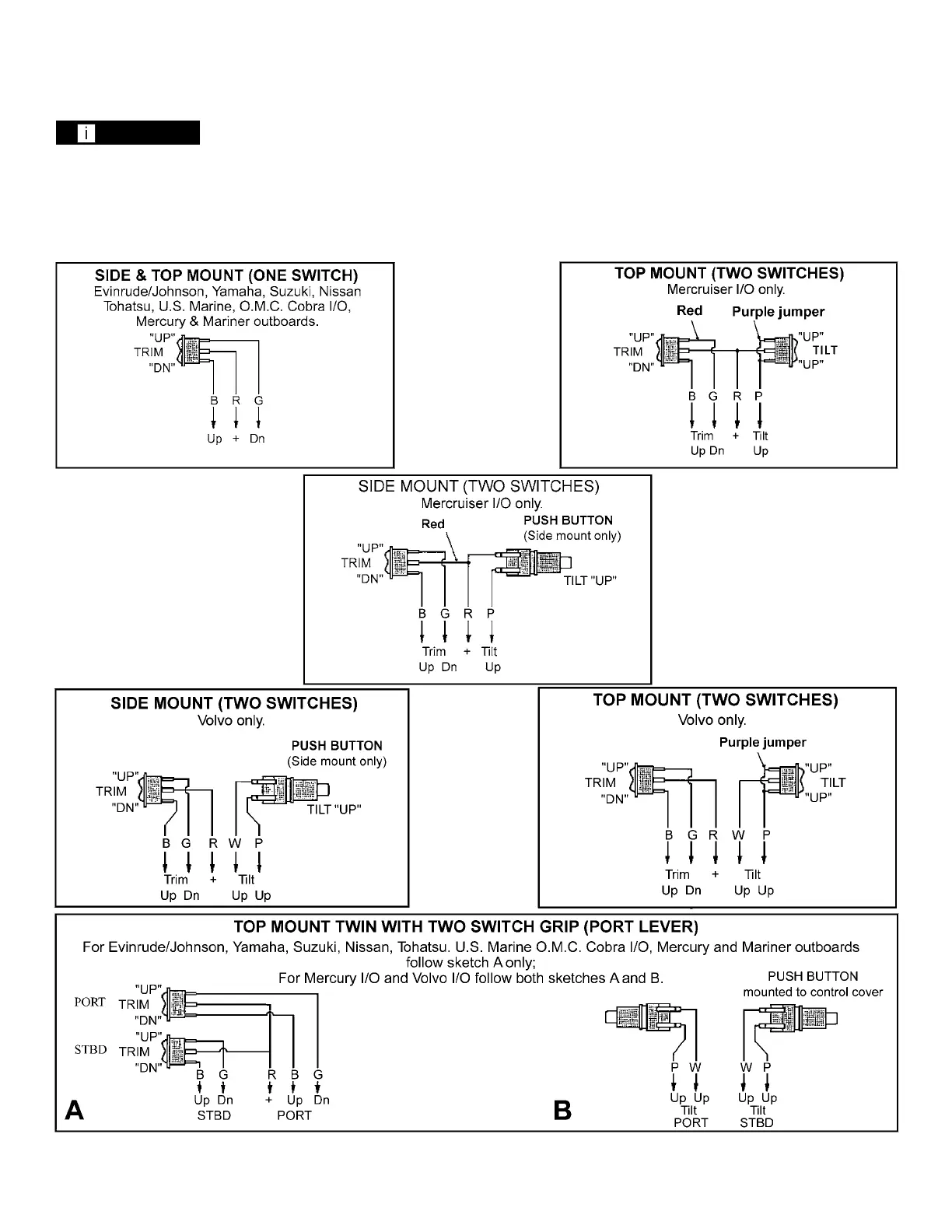

FIGURE 10 - “TRIM” & “TILT” SWITCH CONNECTIONS
