8

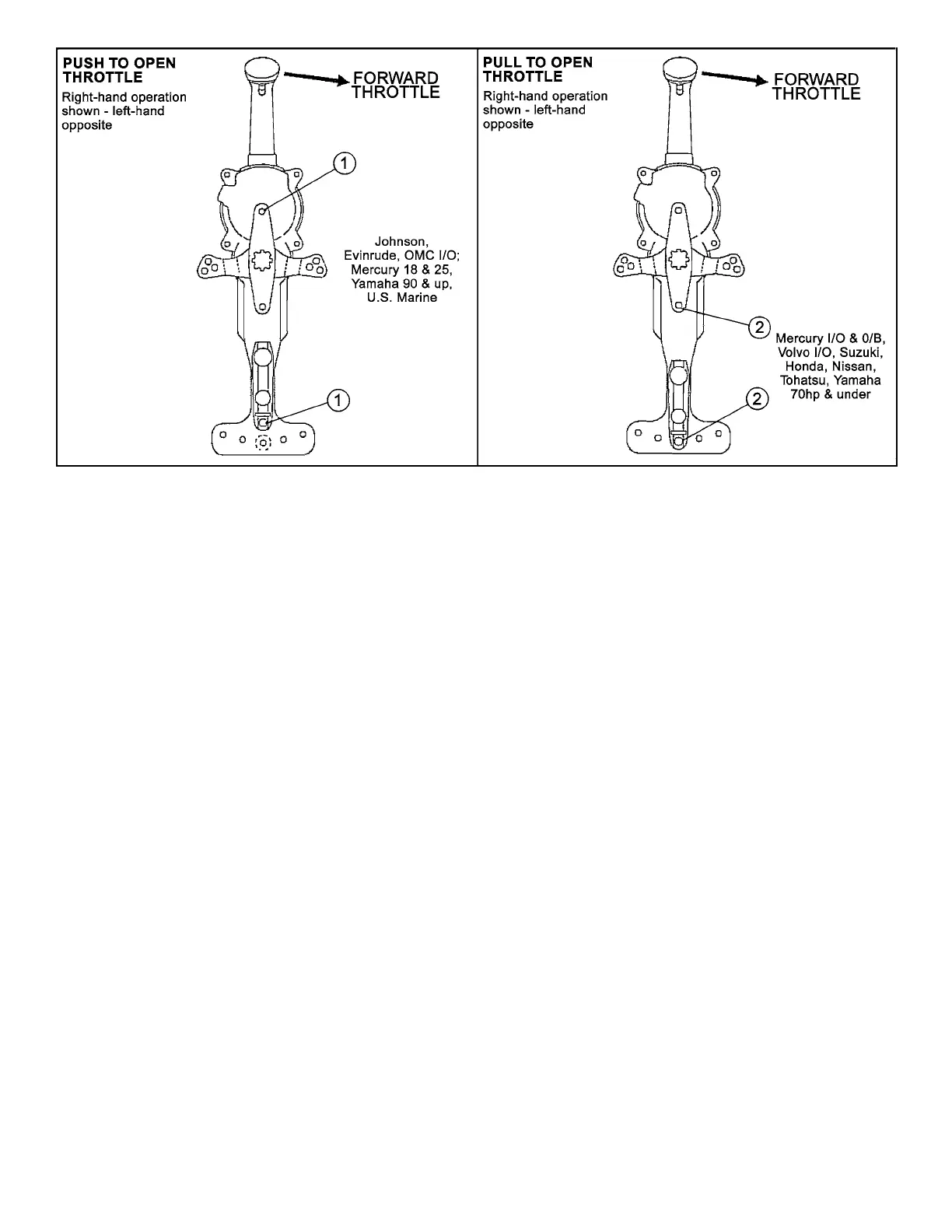

FIGURE 3b CONTROL CABLE CONNECTING POINTS - BY THROTTLE ACTUATION TYPE
OMC/BRP applications would include:
Outboards: Evinrude and Johnson
I/Os (Stern Drives): OMC, some Volvo
Mercury applications would include:
Outboards: Mercury, Mariner, most Force
I/Os (Stern Drives): MerCruiser
Inboards: Mercury and MerCruiser
(Where a particular engine brand is noted in the illustrations above, those cable mounting locations are for
OEM type cables (not the “universal” 3300/33C type)
