MASKINFABRIK

HARALDSVEJ

21

DK-8900

RANDERS

TLF.

+

45864351

55

FAX.

-t-

45 86 43 51 00

Instructions

manual

MORS0

Mitring

machine

Model

F

OPERATING

INSTRUCTIONS

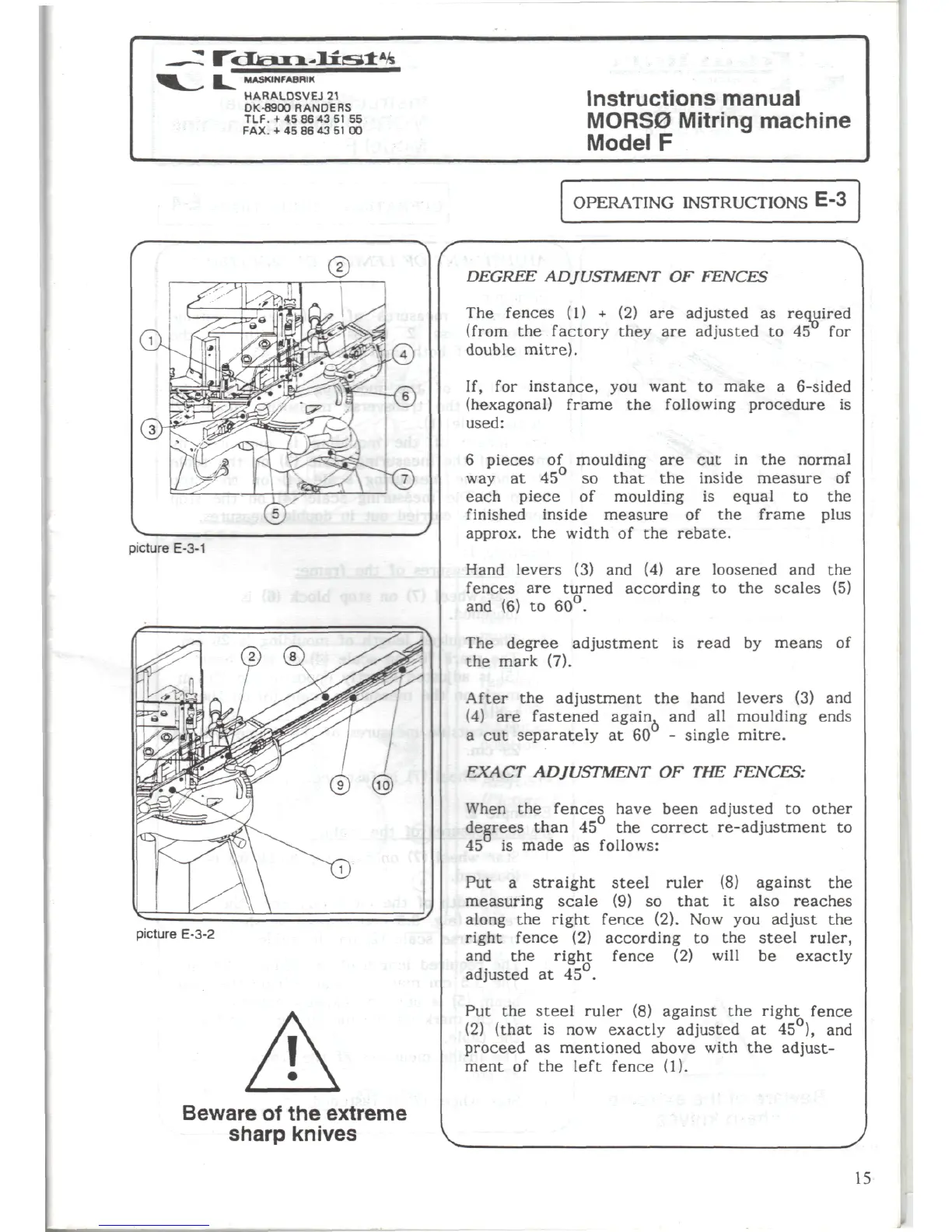

E-3

®


E-3-1


E-3-2

Beware

of

the

extreme

sharp knives

DEGREE

ADJUSTMENT

OF

FENCES

The

fences

(1) + (2) are

adjusted

as

required

(from

the

factory they

are

adjusted

to 45 for

double

mitre).

If,

for

instance,

you

want

to

make

a

6-sided

(hexagonal)

frame

the

following

procedure

is

used:

6

pieces

of

moulding

are cut in the

normal

way

at 45 so

that

the

inside

measure

of

each piece

of

moulding

is

equal

to the

finished

inside measure

of the

frame

the

width

of the

rebate.

plus

approx.

Hand

levers

(3) and (4) are

loosened

and the

fences

are

turned according

to the

scales

(5)

and

(6) to

6(T

o

The

degree

adjustment

the

mark (7).

is

read

by

means

of

After

the

adjustment

the

hand

levers

(3) and

(4)

are

fastened again,

and all

moulding

ends

a

cut

separately

at 60 -

single

mitre.

EXACT

ADJUSTMENT

OF THE

FENCES:

When

the

fences have been adjusted

to

other

degrees than

45 the

correct

re-adjustment

to

45

is

made

as

follows:

Put

a

straight

steel

ruler

(8)

against

the

measuring

scale

(9) so

that

it

also

reaches

along

the

right

fence (2).

Now you

adjust

the

right

fence

(2)

according

to the

steel

ruler,

and

the

right

adjusted

at 45 .

fence

(2)

will

be

exactly

Put

the

steel

ruler

(8)

against

the

right fence

(2)

(that

is now

exactly

adjusted

at 45 ), and

proceed

as

mentioned above with

the

adjust-

ment

of the

left fence (1).

15
