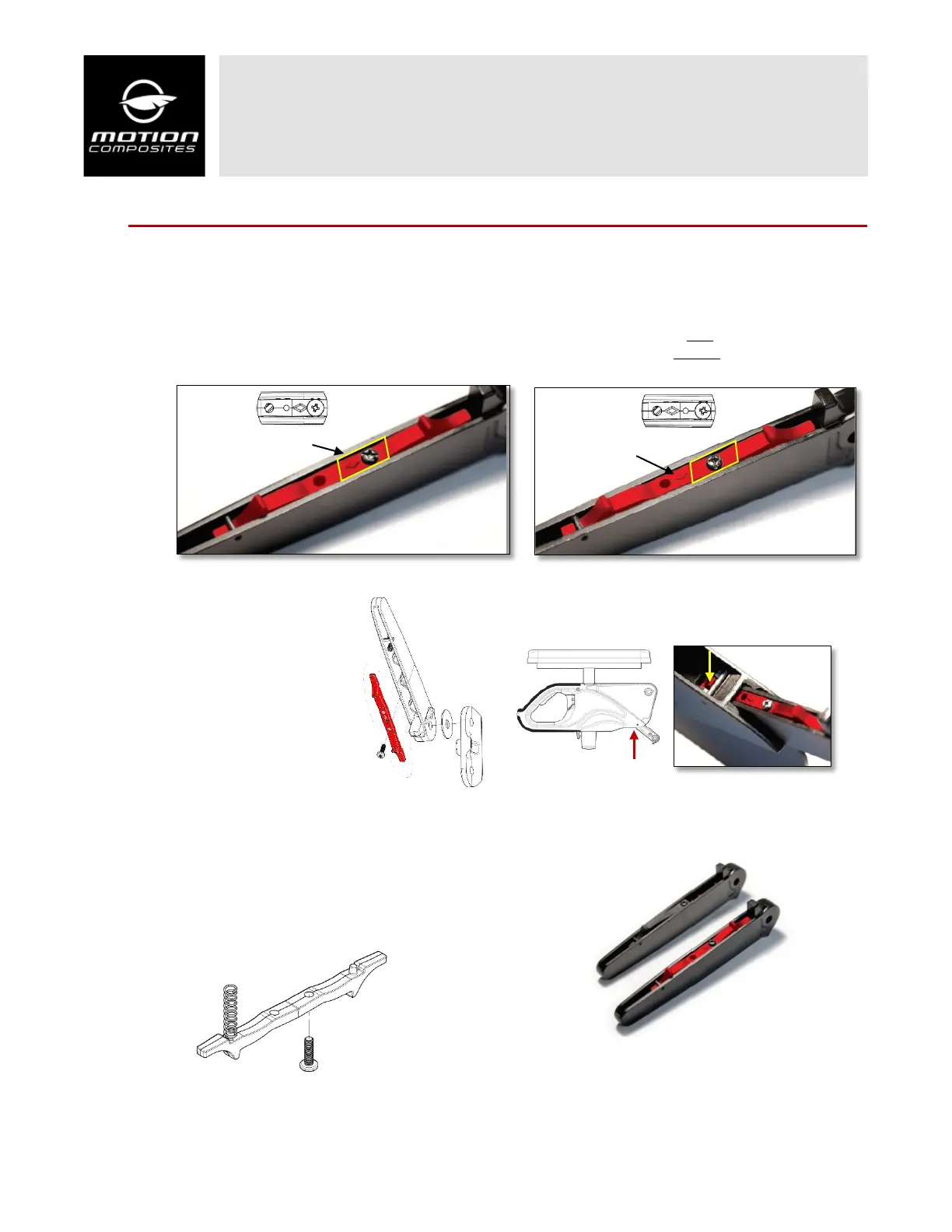

MC-MTKG-WI-0009 Last revision: 2021-09-07 Page 3 of 4
INSTRUCTION SHEET
ADJUSTING THE T-TYPE AND FLIP BACK
ARMRESTS
CHANGING THE REMOVAL MODE (FIXED OR REMOVABLE) OF A FLIP BACK ARMREST
Raise the armrest all the way up to access the screw installed on the double hook trigger (red plastic part) of the pivot arm
It is the orientation of the double hook trigger in relation to the screw that indicates whether the armrest is in fixed
mode (the user cannot remove the armrest) or in removable mode (the user can remove the armrest).
Fixed mode: The double hook trigger is installed and screwed into the hole marked with a diamond
Removable mode: The double hook trigger is installed and screwed into the hole without diamond
To change the armrest removal
mode:
Unscrew and remove the
screw
Remove the double hook
trigger
Change the side of the double
hook trigger and place it in
the pivot arm
Install and screw in the screw
When the double hook trigger is in the fixed mode, the
armrest can be removed by pressing on the level hook
with a screwdriver or another suita ble object
If the pivot arm is black, it is an old version.
You can order the replacement kit (part # 0033561) which
includes a double hook trigger, spring and screw to replace
the single hook trigger of the old model and take advantage
of the two armrest removal modes
Removable
mode
Diamond
Fixed mode
Diamond
Single hook trigger
Old model
Double hook trigger
New model
Replacement kit
