Installation Guide
08

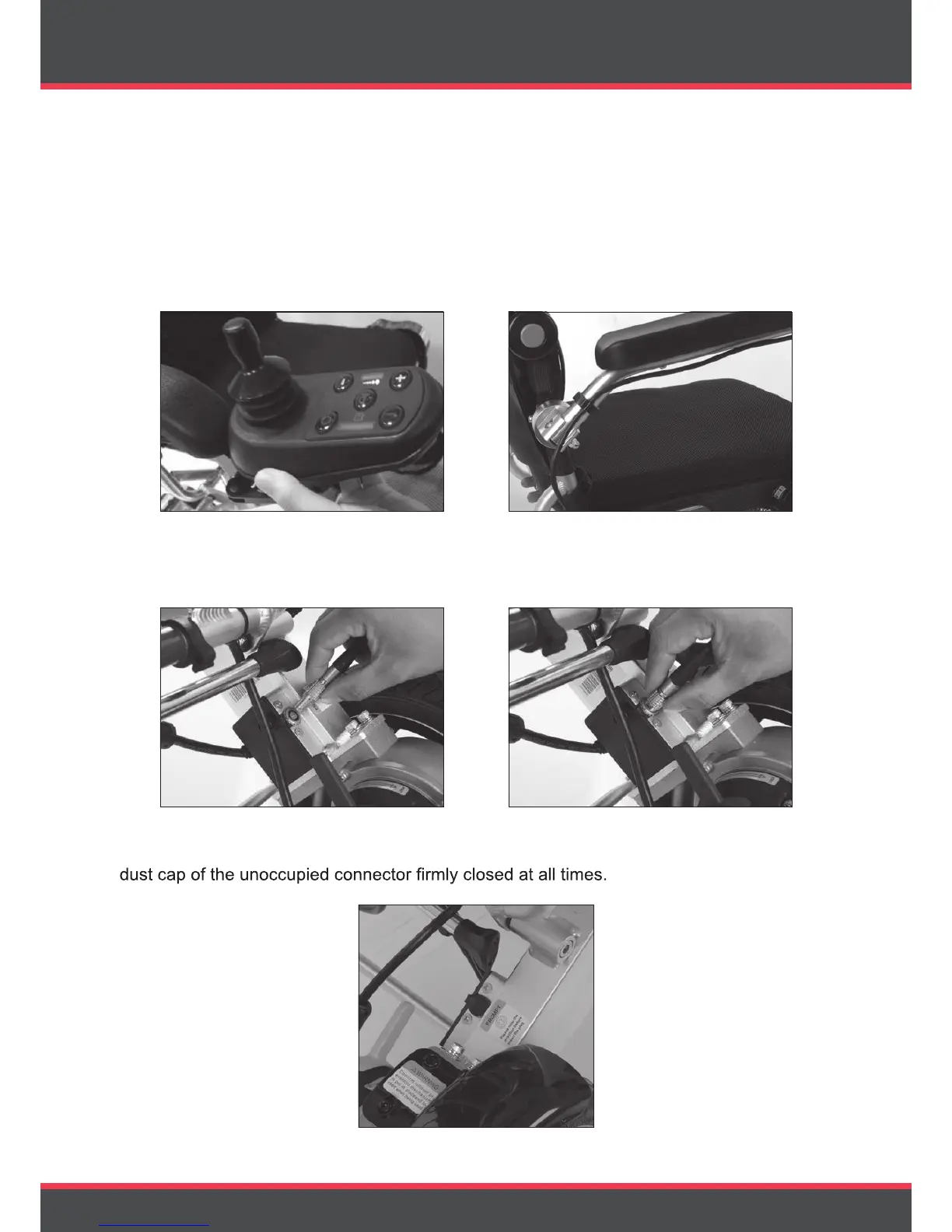

Mounting the Joystick:
The control panel can be mounted on the right or left armrest. P ut the q uick release clamp of
the j oystick control panel onto the metal grab bar and lock the q uick release handle tightly and
securely.
• As shown, route the control panel cable through the cable clip.
• As shown, plug the four – pin control plug from the j oystick control panel into the socket at
either side.
• There is a connector for the control panel on the left and right side of the chair. P lease keep the
