Motorola ASTRO APX 6000XE Series Quick Reference Card

Display Status Icons
Receiving a call or data.
Transmitting a call or data.
u
t
Blinks when the battery is low.
The more stripes, the stronger the
signal strength for the current site.
Direct radio to radio communication, not
using a repeater. Channel M13 only.
Radio is set at High power.
Scanning a scan list.
Blinking dot = Detects activity on the
physically selected channel.
O
H
i
j
On steady = View mode
Blinking = Program mode
On = AES Secure operation.
Off = Clear operation.
Radio is currently associated with the
system.
Data activity is present.
l
n
o
Menu Navigation
< or > to Menu Entry.
{, |, or } directly below Menu
Entry to select.
H to exit.
8
v
Send Audible Alert to a Radio
1 < or > until Page is displayed.
2 Press the button directly below Page.
3 Use the keypad to enter the required ID.
4 Press the PTT button to send the page.
Editing the Scan List
1 < or > until ScnL is displayed.
2 Press the directly below ScnL.
3 U or D to the entry you want to edit.
4 Press the button directly below Sel to
add the currently selected channel to the
scan list.
Press the button directly below Del to
delete the currently displayed channel
from the scan list.
Press the button directly below Rcl to
view the next member of the scan list.
Hold the radio vertically 1 to 2 inches from
your mouth. Press the PTT button, wait for
an acknoldgement beep, speak clearly and
slowly. Release the PTT when done.
Making a Radio Call

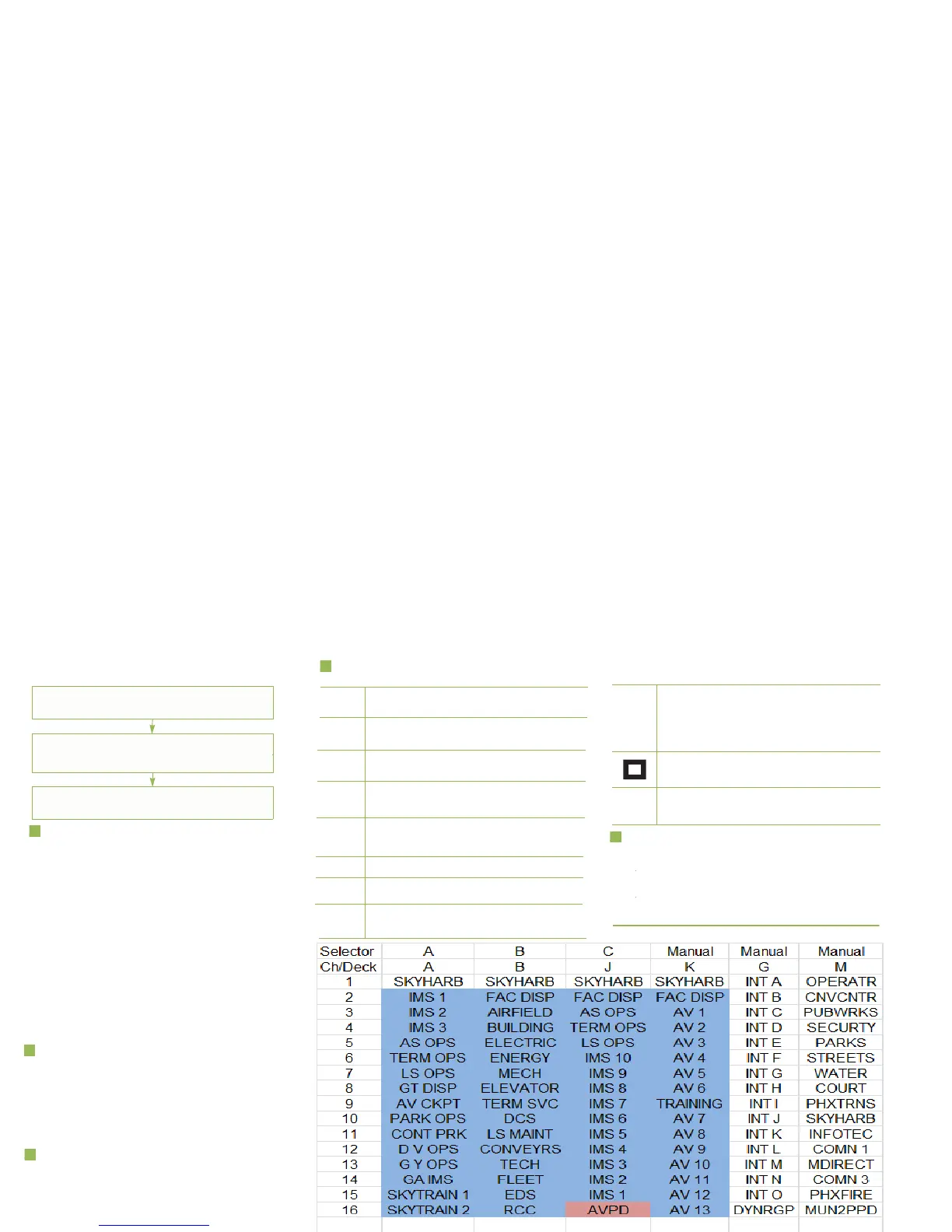

Changing Decks / Zones
Use the A/B/C selector switch at the top of
the radio, use the single dot side button, or
use the menu buttons on the front panel,
under the main display.

Motorola ASTRO APX 6000XE Series Specifications

General

Frequency Range	700/800 MHz, VHF, UHF Range 1, UHF Range 2
Operating Temperature	-30°C to +60°C
P25 Phase 1 & 2	Yes
Bluetooth	Yes
GPS	Yes
Weight	381 g (with standard battery)
Encryption	AES, DES-OFB
Intrinsically Safe	Yes
