Quick Reference Guide 7

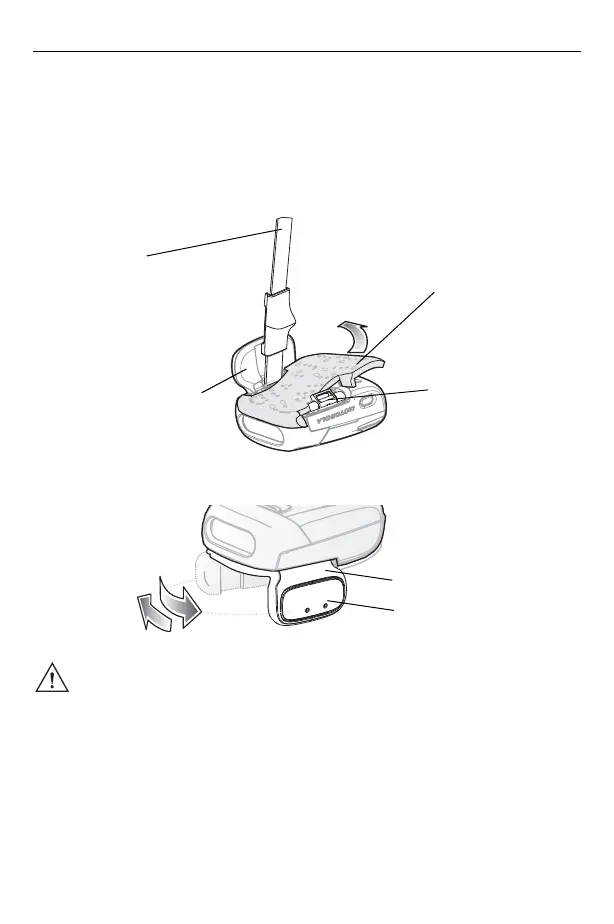

Change Trigger Position
The Trigger Swivel Assembly of the Imager rotates to provide left-hand or
right-hand use.
1. From the bottom of the Imager, hold and pull the Comfort Pad out of the
Imager.
2. Determine whether the Imager is used on the right or left hand and rotate the
Trigger Swivel Assembly.
3. Rotate the Trigger Swivel Assembly so that the Scan Trigger is positioned next
to the thumb when the Imager is placed on the index and middle fingers.
4. Position the Comfort Pad onto the Imager.
5. Press the Comfort Pad onto the Imager. When properly installed, the Comfort
Pad “locks” into place.
6. Insert the Finger Strap into the Strap Buckle.
CAUTION The Trigger Swivel Assembly only rotates 180° around the
bottom of the Imager. Do not rotate the Trigger Swivel Assembly
past the designed stops.
Finger Strap
Strap Buckle
Comfort Pad
Trigger Swivel
Assembly
Note: It is not necessary
to remove the Finger
Strap from the Trigger
Swivel Assembly.
Trigger Swivel Assembly
Scan Trigger
