Motorola SLVR L7 - Removing and Replacing the Display Module

34 September 23, 2005 6809495A77-O
Disassembly Motorola SLVR L7
Removing and Replacing the Display Module
1. Remove the battery cover, battery, rear housing, and transceiver PC board as
described in the procedures.
2. Turn over the chassis assembly and use the metal tweezers to release the six
display bracket latches located under the chassis assembly (see Figure 20).

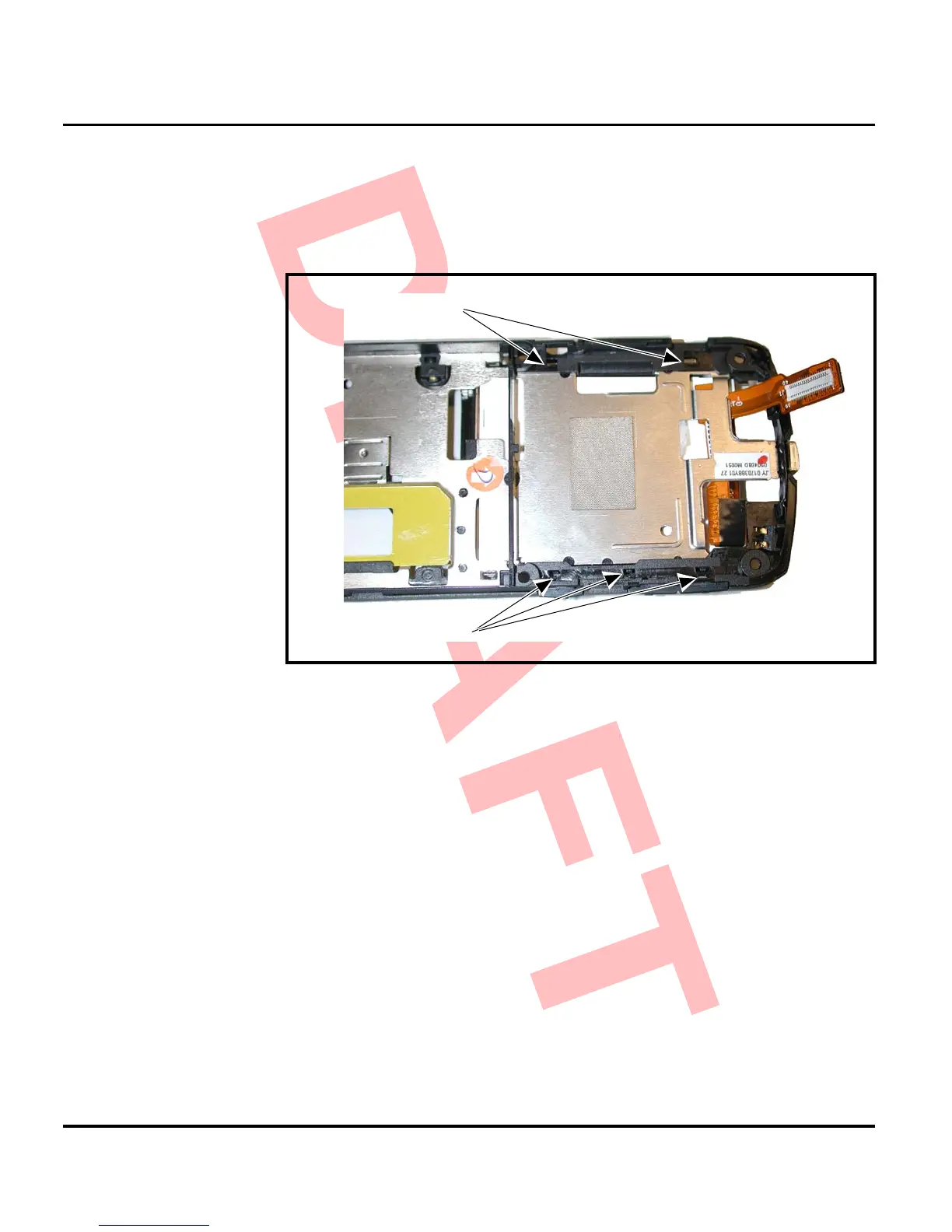

051046o
Figure 20. Removing the Display Module Latches
Display
bracket latches
Display
bracket latches
