Level 1 and 2 Service Manual Disassembly
4. Lift the rear housing from the front housing as shown in Figure 11.
Replacing the Rear Housing
1. Connect the flex cable connector to its socket on the transceiver board.
2. Align the 4 front housing catches with the matching slots in the rear housing
then firmly press the rear housing to the front housing until the catches engage
and the housings are properly assembled.
3. Replace the light guide, antenna, battery, and battery cover as described in the
procedures.
031753o

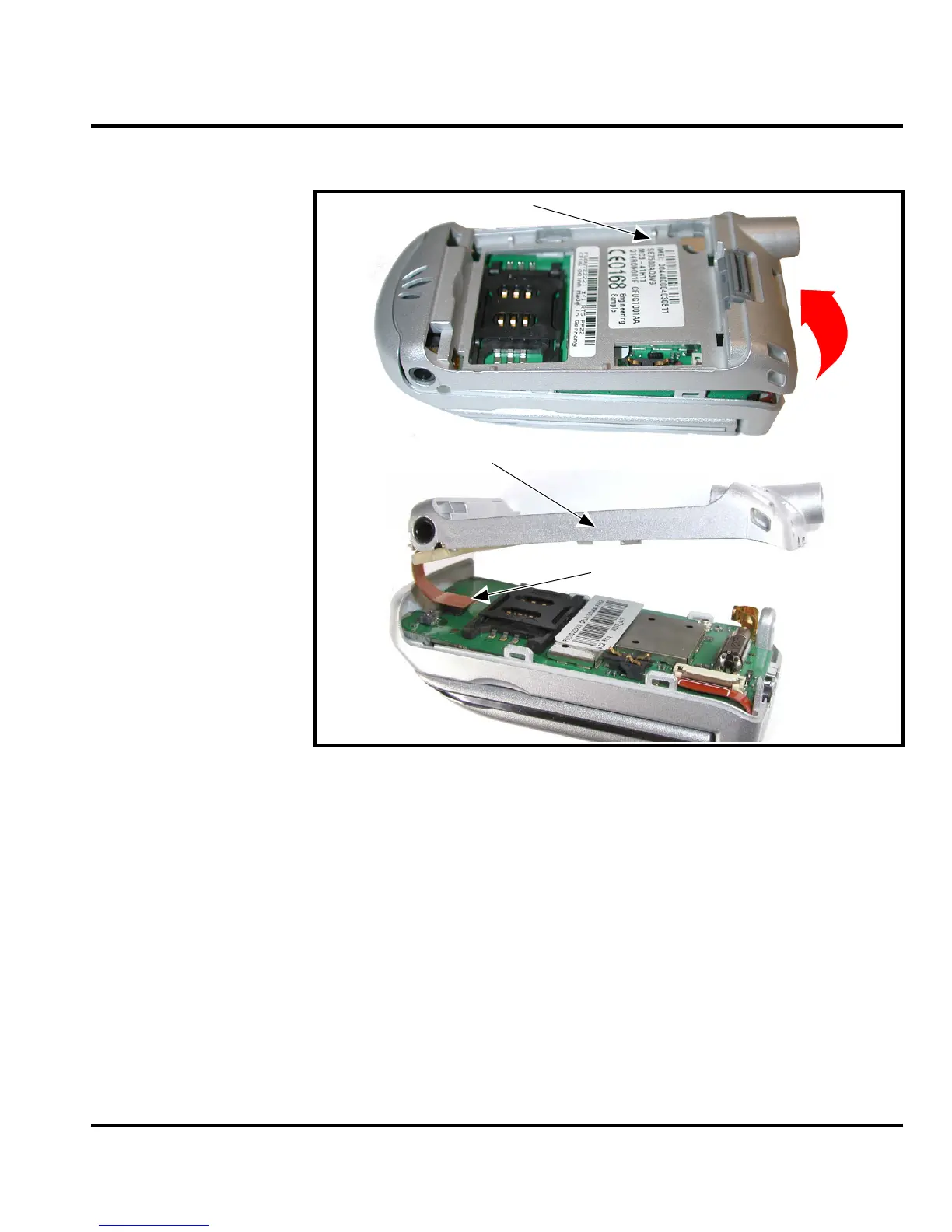

Figure 11. Removing the Rear Housing
Rear Housing
Rear Housing Flex Cable
Rear Housing
