Install a Hip Mount
The hip mount allows the user to mount the wearable terminal on the hip for use in voice picking applications.
An RS309, RS409 or RS419 scanner with an extended cable is required when using the hip mount.
Slide the wearable terminal into the hip mount.

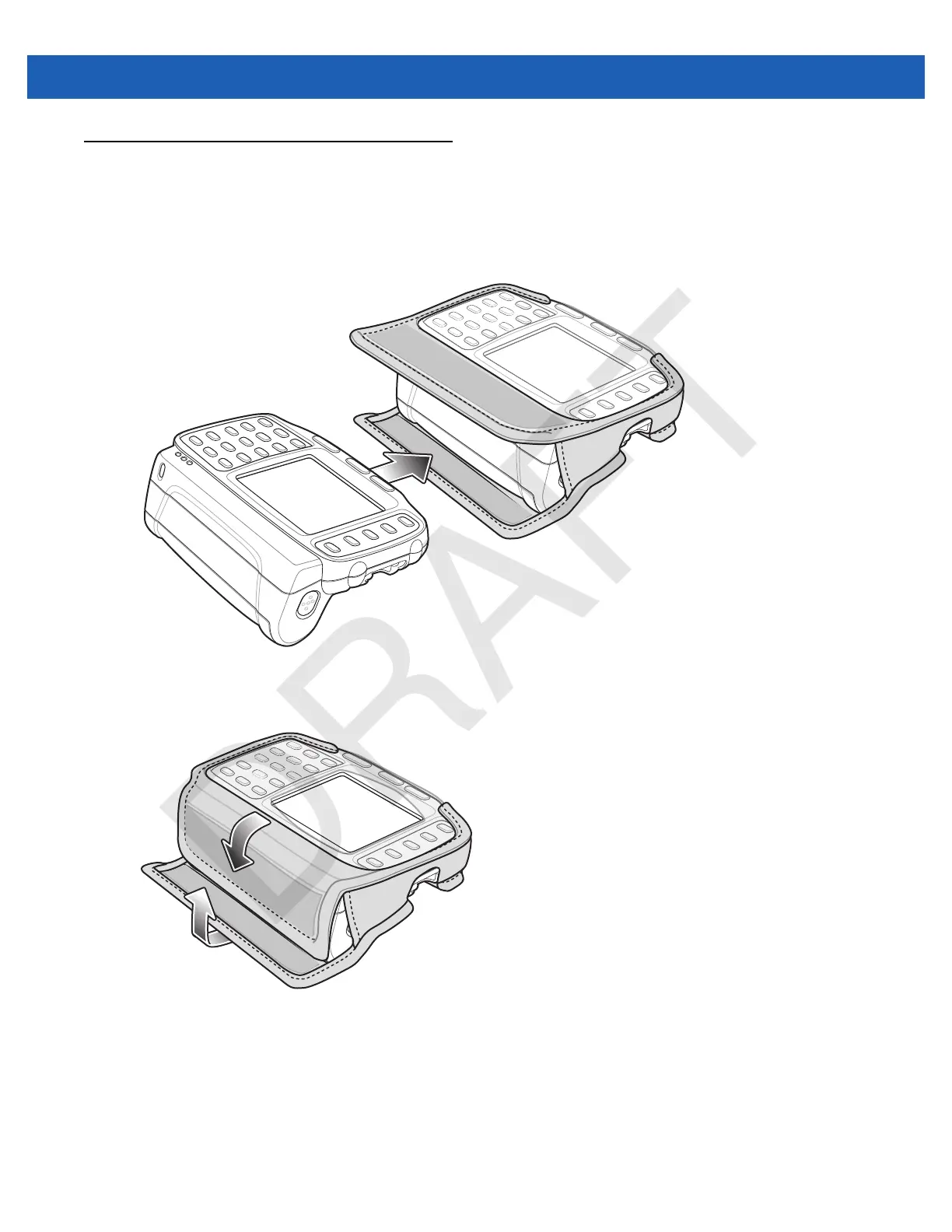

Figure 1-13 Insert Wearable Terminal into Hip Mount
Close the front flap followed by the back flap.
Figure 1-14 Close Hip Mount Flaps
Slide a belt through the belt loop on the back of the hip mount. The wearable terminal can be mounted
right-side up or up-side down depending upon user preference or application.
