This document provides installation instructions for the Mould King 16039 Lighting Kits, designed to add illumination to a building block model. The kit enhances the aesthetic appeal of the model by integrating various light components, primarily warm light strips and associated wiring.

Function Description:

The Mould King 16039 Lighting Kits are an accessory designed to illuminate a compatible building block model, specifically the Mould King 16039 set. The primary function is to provide internal and external lighting to the model, creating a more realistic and dynamic display. The kit includes warm light strips, cables, a battery box, and a multi-port socket to power the lights. The installation process is integrated with the building steps of the model, ensuring that the lighting components are seamlessly incorporated as the structure is assembled.

Important Technical Specifications:

The kit primarily utilizes warm light strips, which are flexible lighting units designed to be discreetly placed within the model. The wiring system involves thin cables that are intended to be routed between or under the building blocks and around studs to conceal them effectively. The power source is a battery box, which connects to a six-port socket to distribute power to the various light components. A 350mm dual interface cable and a warm light socket are also included, suggesting modularity and specific connection points within the lighting system. The design emphasizes a clean installation, with instructions for organizing and wrapping excess wires with tape to maintain a tidy appearance.

Usage Features:

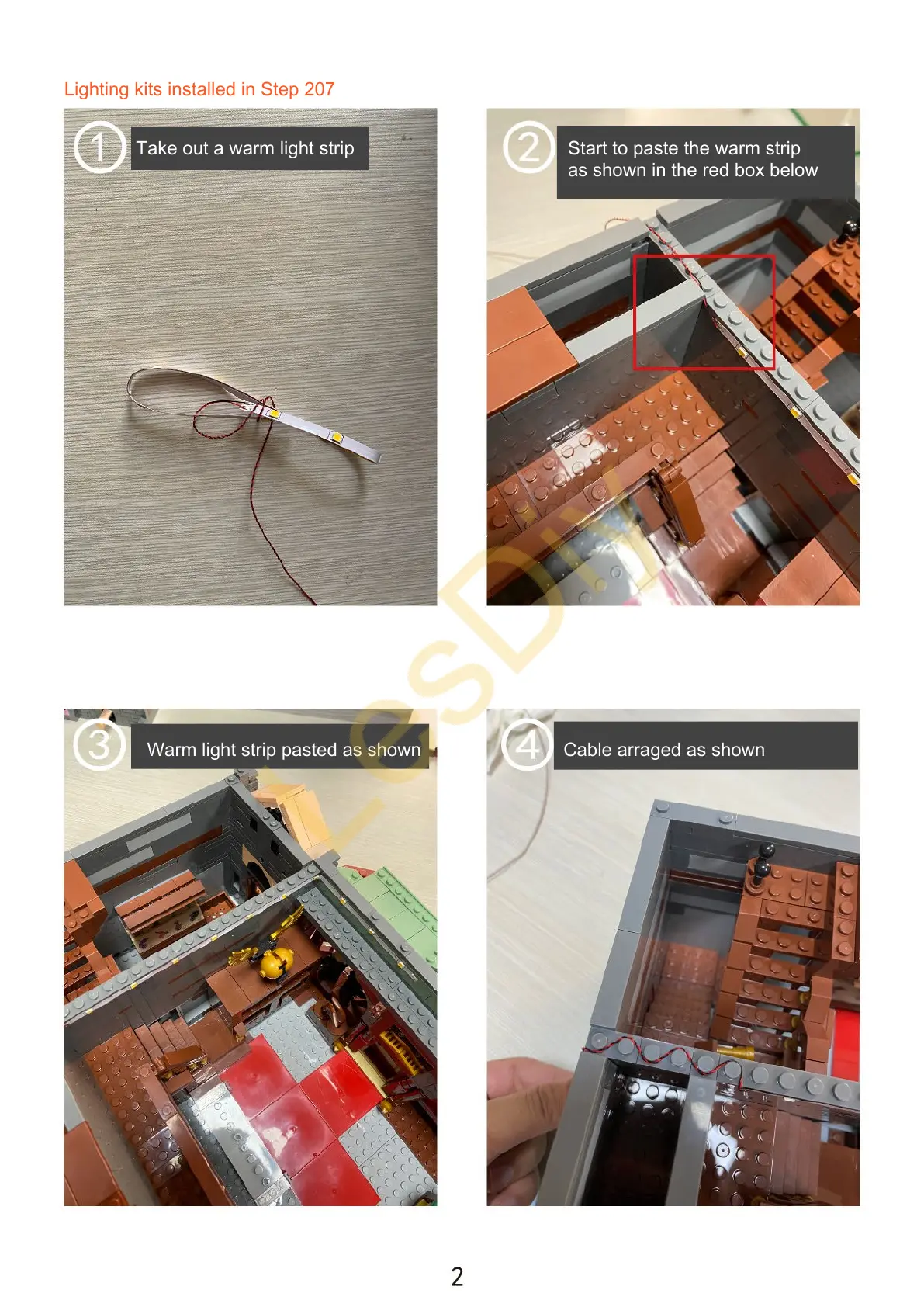

The lighting kit is intended to be installed during the construction of the Mould King 16039 building block model, specifically at designated steps (e.g., Step 207, Step 288, Step 435). This "build-in" approach ensures that the wires and light strips are integrated into the structure rather than being added as an afterthought. Key usage features include:

Integrated Installation: The instructions guide the user to install light strips and route cables at specific stages of the model's construction, ensuring optimal placement and concealment.
Discreet Wiring: Cables are designed to be placed between or under bricks and around studs, minimizing their visibility and maintaining the aesthetic integrity of the model.
Modular Connections: The kit uses wire sockets that require careful attention to direction during connection. The side of the socket with exposed wires should face the welded "=" symbol on the corresponding plug. This ensures correct polarity and prevents damage.
Warm Lighting: The primary light source consists of "warm light strips," which typically emit a soft, inviting glow, enhancing the ambiance of the model.
Centralized Power: A battery box connected to a six-port socket serves as the central power distribution unit, simplifying the power management for multiple light components.
Cable Management: Instructions include steps for organizing and wrapping excess wires with tape, promoting a neat and professional finish.

Maintenance Features:

While the document does not explicitly detail long-term maintenance, several aspects can be inferred:

Careful Handling of Connections: The instructions strongly caution against forceful insertion of plugs into sockets, emphasizing that "the pins of the socket will be bent or the socket will be overheated and damaged" if not handled correctly. This highlights the importance of gentle and correct connection to ensure longevity of the electrical components.
Wire Protection: By routing cables between/under bricks and around studs, the wires are protected from external damage, reducing the likelihood of wear and tear.
Battery Replacement: As the power source is a battery box, periodic battery replacement will be necessary to maintain the lighting functionality. The design suggests easy access to the battery box for this purpose, although specific instructions for battery replacement are not provided in this excerpt.
Troubleshooting Guidance (Implied): The warning about incorrect plug insertion and potential damage implies that if lights fail to work, checking these connections for bent pins or overheating would be a primary troubleshooting step.

In summary, the Mould King 16039 Lighting Kits offer an integrated and aesthetically pleasing solution for illuminating building block models. The design prioritizes discreet installation, modular connections, and careful cable management to achieve a polished final product. Proper handling during installation, particularly with electrical connections, is crucial for the kit's functionality and lifespan.
