moved sideways so that it is not in any of the
notches. Hold the base of the seat (7) and tip the
cover back.
On closing:
– check that the collector channel (8) is properly fit-
ted onto its support (9) and resting on the right-
hand guide;
– put the lever (3) into the «R» position and lower
the cover (1) to the height of the levers (3) and (6);
– first put the lever (6) into its housing followed by
lever (3). Lower the cover in line with the fasten-
ing screw.
When the cover (1) has been lowered check that:
– he channel exit (8) is correctly lined up with the opening in the rear
plate (10) and that it is resting on the support (11).
Then:
– fully tighten the fixing nut (5);
– put the lever (6) into the notch at position «7»;
– take the blocks (2) away, and reassemble the knob on the lever (3) and the
access hatch (4).
E
NGINE
Follow the instructions in the engine booklet.

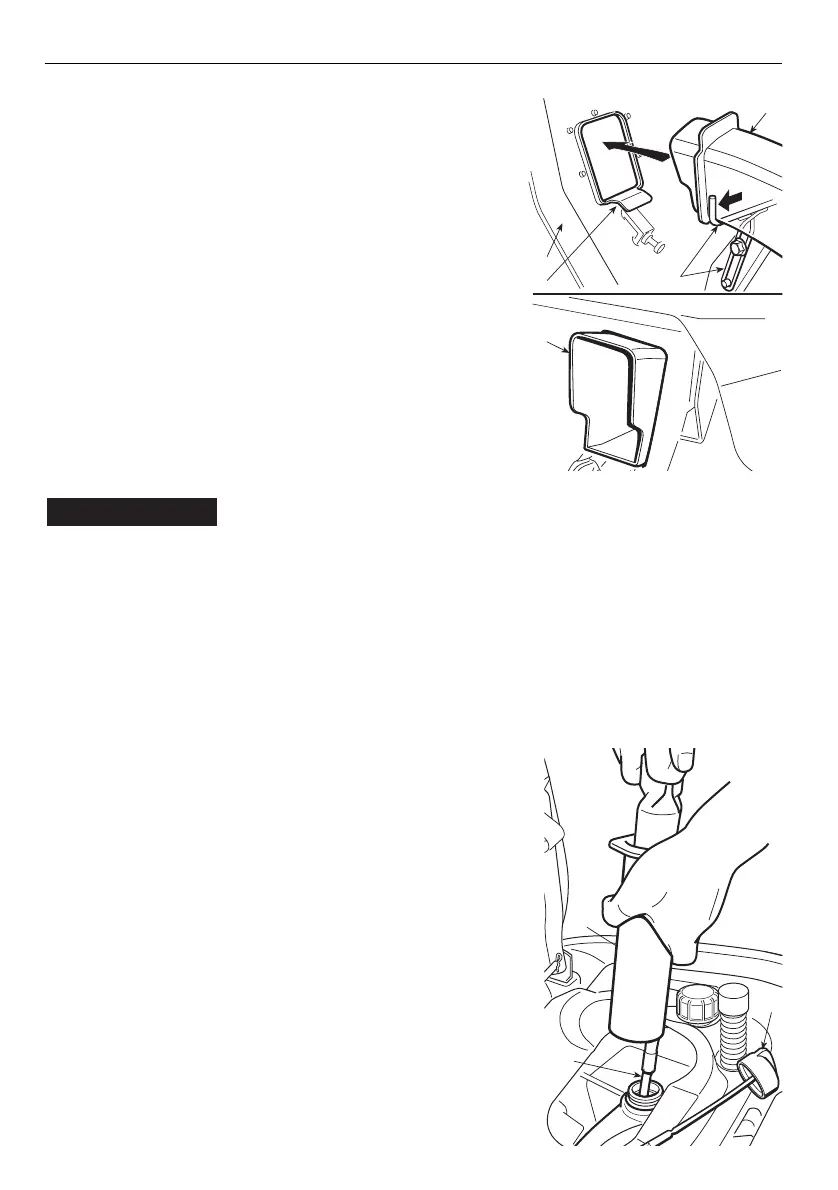

Drain the engine oil by unscrewing the oil fill plug (1)
and using the syringe supplied.
Fit the pipe (2) onto the syringe (3) and insert it right
into the hole. Drain all the engine oil, repeating if nec-
essary until there is no oil left in the engine.
REAR AXLE
These are permanently lubricated with grease that
does not need changing.

!
WARNING!
EN 30 MAINTENANCE
8
9
11
10
8
1
2
3
