8
ENGLISH
GB
IMPORTANT
Equipment which is marked with an asterisk (*)
comes as standard in certain models or countries.
Certain models do not have throttle control. The
engine’s speed is set for optimal function and min-
imal exhaust emissions.

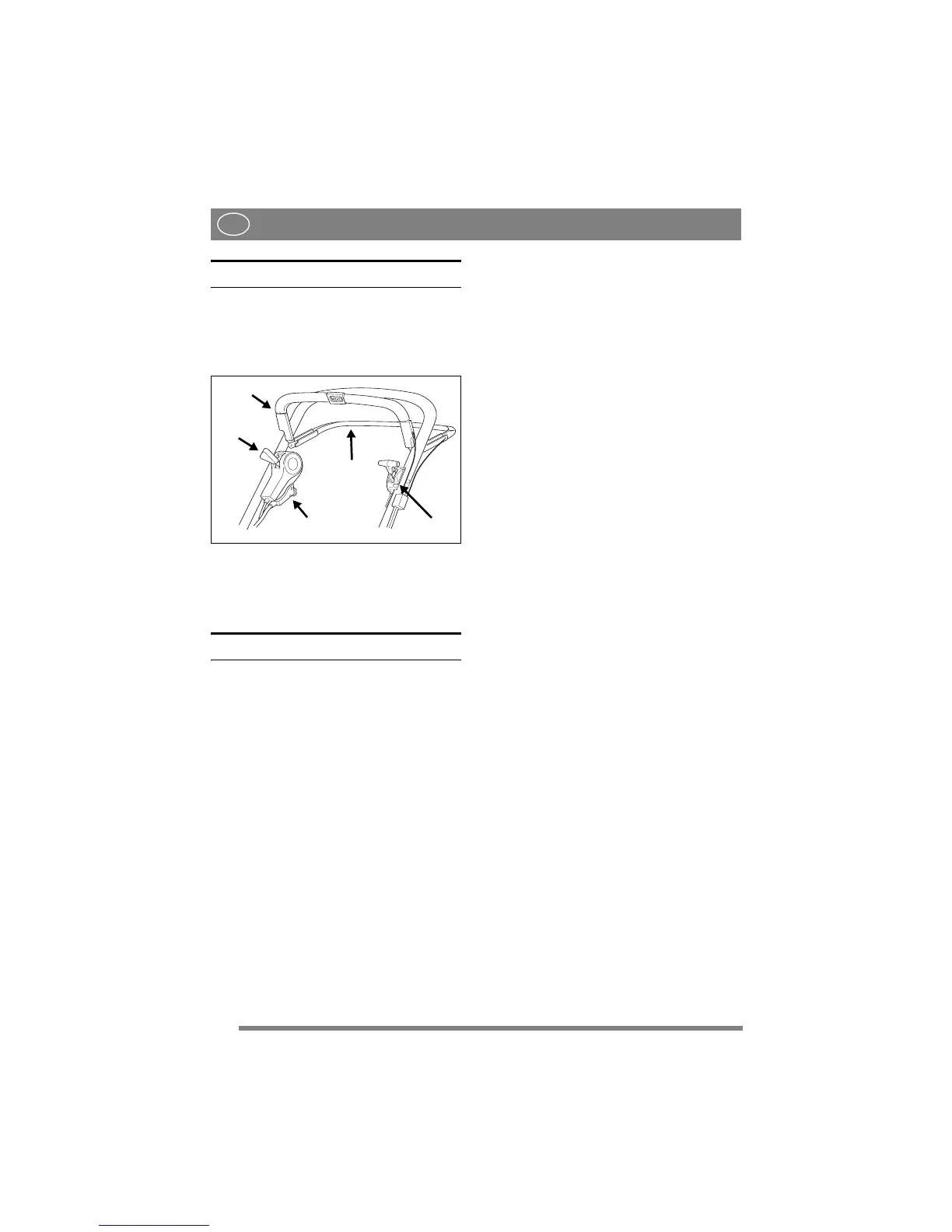

1. Throttle control (*)
2. Clutch lever
3. OPC lever
4. Electric start (*)
5. Variator control
ASSEMBLY
LOOSE PARTS IN THE BOX
1 ignition key (*)
1 battery charger (*)
1 socket wrench
2 nut caps
+ Instruction books
FLAP
Install the flap according to fig. 1-2.
1. Insert the shaft into the hole on the right-hand
side.
2. Fold down the flap so that the left-hand end of
the shaft is directly opposite the hole.
3. Insert the left-hand end of the shaft into the hole
by pressing shaft’s the right-hand end. Make
sure that the shaft is centred.
HANDLE
1. Remove rear screw, nut and washer and fold up
the lower part of the handle (fig. 3).
2. Screw the lower part of the handle without
tightening (both sides). Ensure that the lug for
the starter cord is correctly positioned (fig. 4).
3. Install the upper part of the handle using
screws, washers and locking wheels (fig. 5).
4. Adjust the handle so that the handlebar is
horizontal.
5. Set the required height for the handle and tighten
the screws A and B properly (fig. 4).
6. Thread the nut caps onto the front screw heads
B (fig. 6).
7. Fold down the spring struts so that the flap is
secured (fig. 7).
8. Carefully pull the starter handle and thread the
starter cord through the lower and upper lugs.
Tighten the upper lug (fig. 8).
ENGINE BRAKE CABLE
Secure the engine brake cable to the engine brake
(fig. 9). Note that the cable should be installed in
the direction of the handle.
CABLE HOLDERS
Secure the cables in the cable holders (fig. 10):
VARIATOR CONTROL
When the mower is delivered, the variator cable is
set so that the transmission cannot be damaged.
The cable may need tightening, see under heading
“ADJUSTING VARIATOR CABLE“ in the sec-
tion “MAINTENANCE“.
GRASS COLLECTOR
Fit the fabric bag over the steel frame and then
snap the bag onto the plastic lid (fig. 11).
Open the flap on the machine and attach the grass
collector to the brackets (fig. 12).
NOTE! The lawnmower can be operated without
the grass collector. The grass is then left in a line
behind the machine.
4
