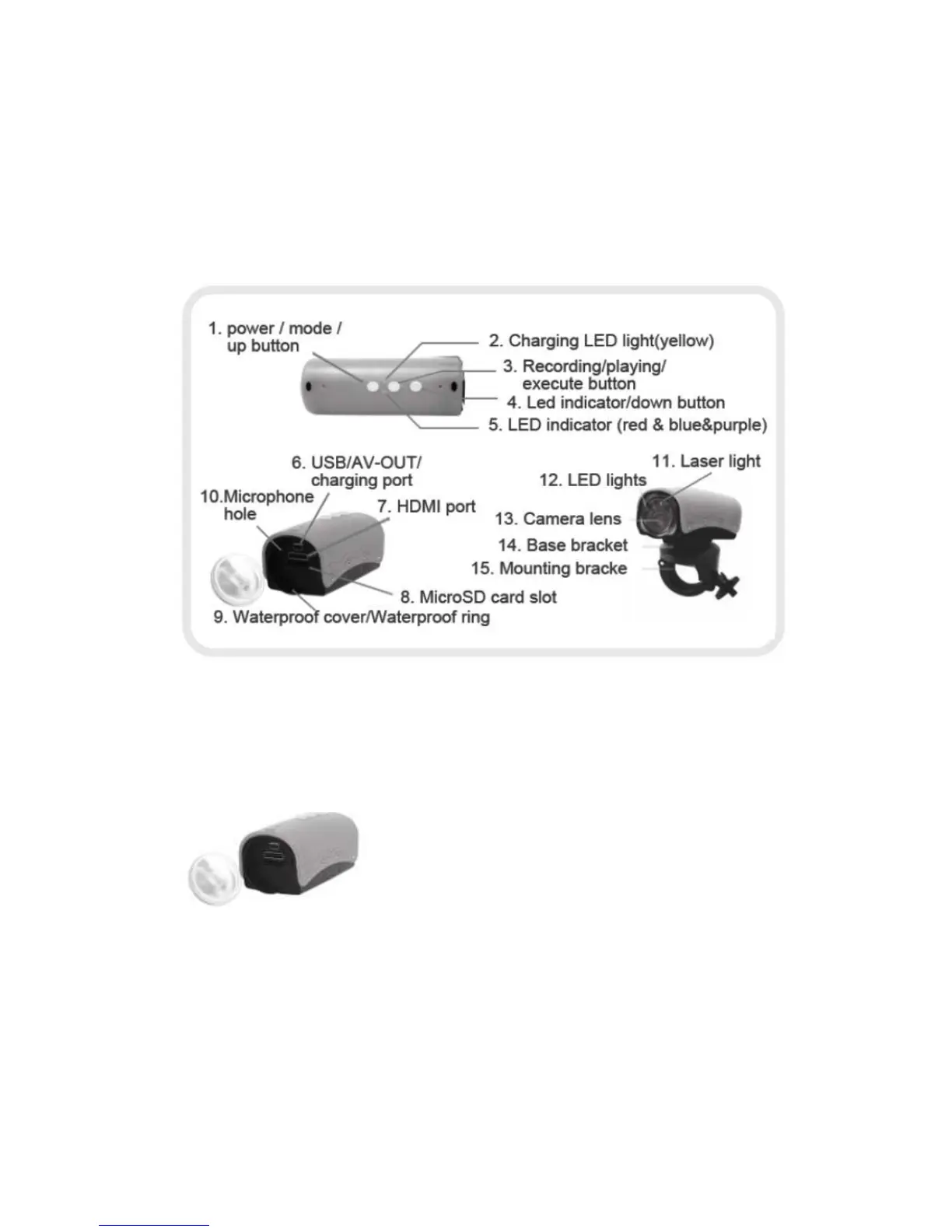

Product Structures
Respectively is: 1. power / mode / up button 2. Charging LED light(yellow) 3.
Recording/playing/execute button 4. Led indicator/down button 5. LED indicator (red &
blue&purple) 6. USB/AV-OUT/charging port 7. HDMI port 8. MicroSD card slot 9.
Waterproof cover/Waterproof ring 10.Microphone hole 11. Laser light 12. LED lights 13.
Camera lens 14. Base bracket 15. Mounting bracket 16. Combination reset button(press
power and light button together)
Installation (With Pictures)
Full HD Sport Camera can be used handheld or can be used combined with clips and bracket,
as below picture shows:
1. Remove the back cover: Rotate the back over simultaneously to push back outside, and
then you can remove the back cover.
2. Installation of mounting bracket
