Configuring Multiple-Point Routes

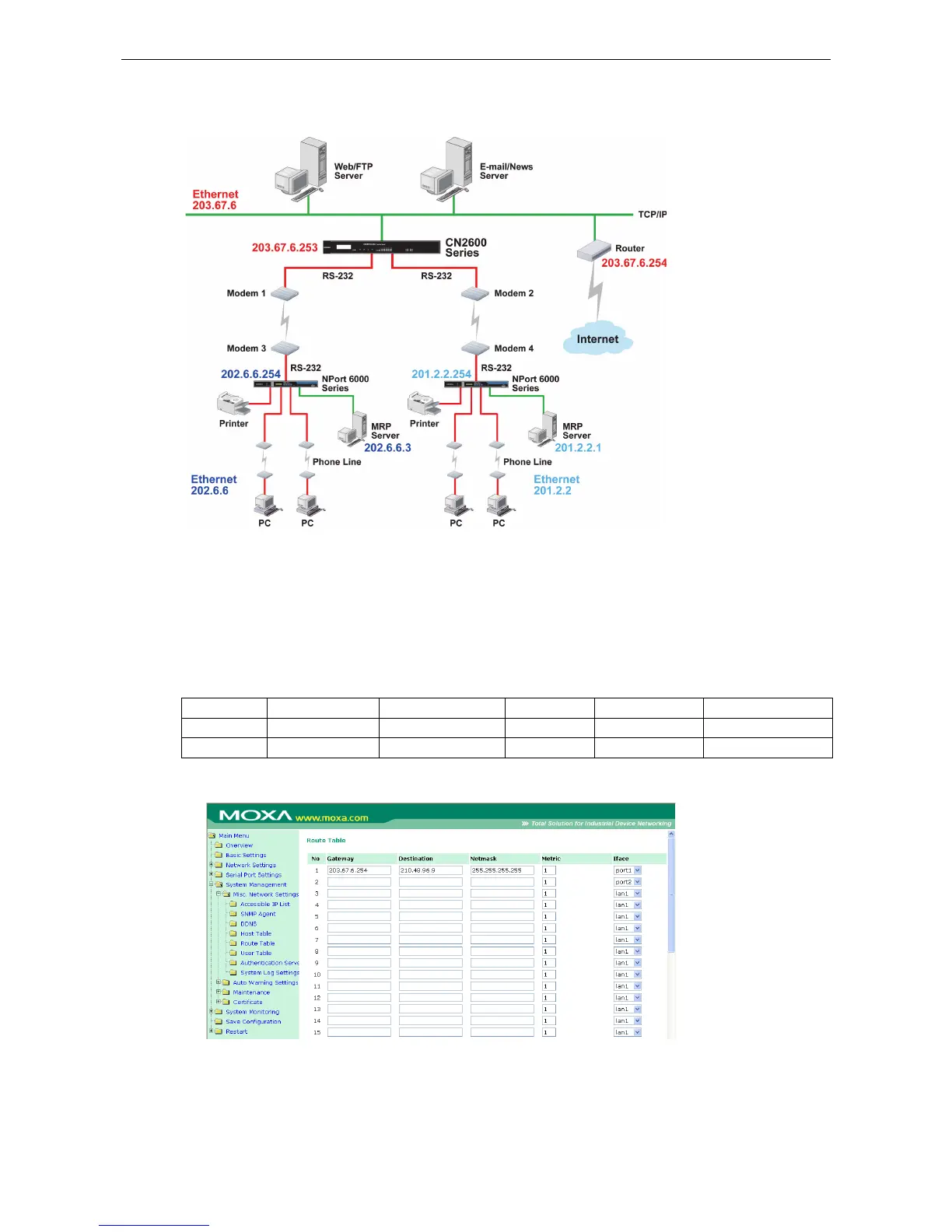

For multi-location enterprises, CN2600 servers can be placed in different branch offices and used as both
multi-point routers and as remote access servers. When hosts (e.g., the Web/FTP and E-mail/News servers
shown in the figure) send requests to hosts on another network, such as 202.6.6.xxx or 201.2.2.xxx, the
corresponding CN2600 delivers the request to the another CN2600 on the remote end, 202.6.6.254 or
201.2.2.254, as the next-hop router..
For this example, assume that Modem 1 is connected to serial port 1, Modem 2 is connected to serial port 2, and
PPP source and destination IP addresses of modems 1, 2, 3, and 4 are as follows:
Source IP Destination IP Source IP Destination IP
Modem 1 203.67.6.250 202.6.6.250 Modem 3 202.6.6.250 203.67.6.250
Modem 2 203.67.6.249 201.2.2.249 Modem 4 201.2.2.249 203.67.6.249
In this case, you will need to add two entries to the routing table, as shown in the following figure.
