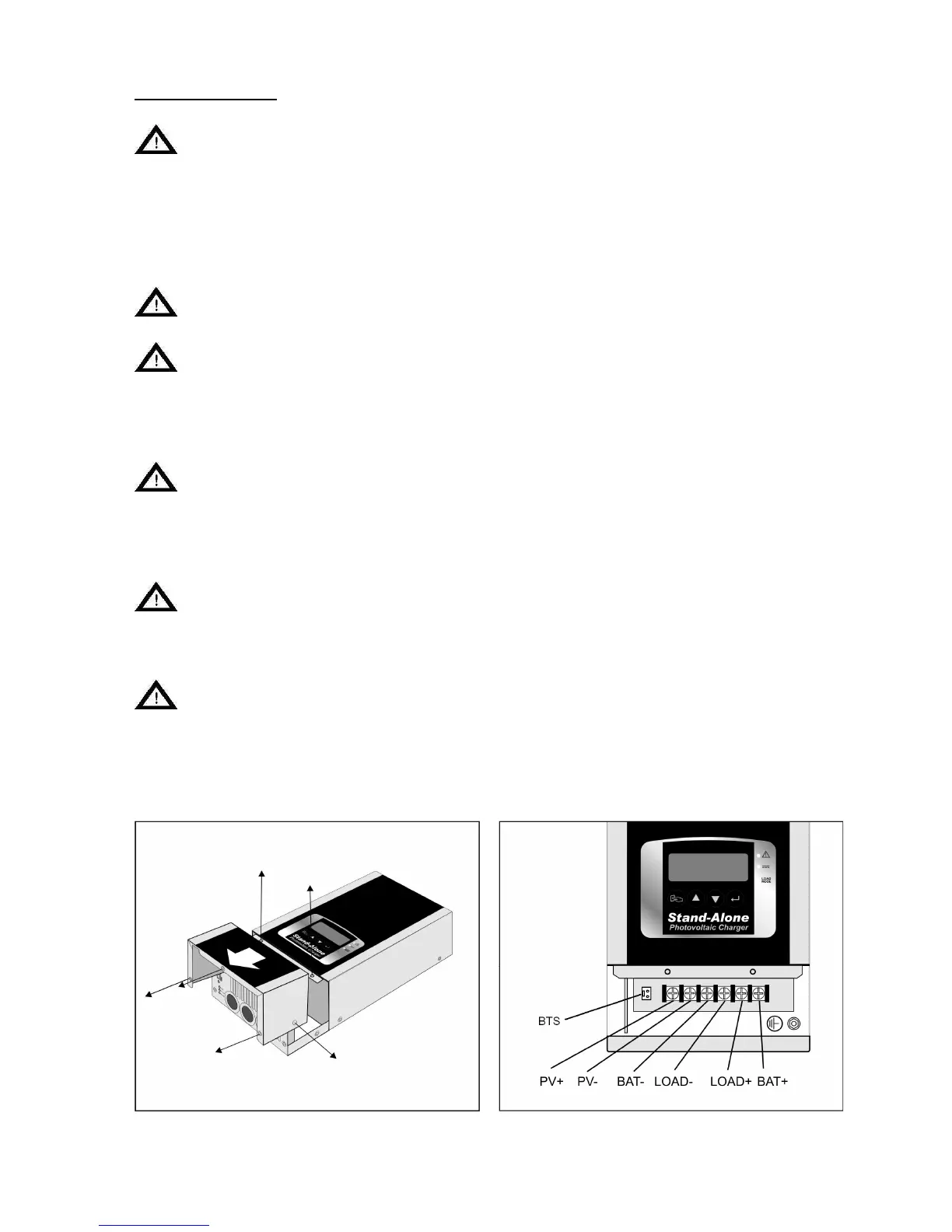

1.2 Installation
BEFORE INSTALLATION, ENSURE YOUR PV ARRAY’S WORKING VOLTAGE EXCEED THE
FOLLOWING VALUES IN ORDER TO POWER THE SOLAR CHARGER:
For 12V / 24V system: minimum 40V and above
For 36V system: minimum 50V and above
For 48V system: minimum 60V and above
MAXIMUM ARRAY OPEN CIRCUIT VOLTAGE MUST NOT EXCEED150V!
RECOMMENDED BATTERY TYPE: MAINTENANCE-FREE LEAD ACID ONLY. IT IS OK TO USE
FLOODED TYPE BATTERY, HOWEVER IT MAY REQUIRE SEPARATE SOURCE OF EQUALIZE CHARGING
PERIODICALLY TO REMOVE SULFATION. THIS CHARGER DOES NOT HAVE EQUALIZATION
CHARGING.
THIS UNIT IS DESIGNED TO DRAW POWER 100% FROM PV ONLY, THEREFORE AT NIGHT
TIME OR UNDER LOW LIGHT CONDITIONS WHERE PV VOLTAGE IS INSUFFICIENT, THE UNIT WILL
POWER OFF. THIS IS NORMAL. ONCE PV VOLTAGE REACHES THE THRESHOLD (SEE ABOVE), UNIT
WILL AUTO POWER ON AND BEGIN TO OPERATE AUTOMATICALLY.
OUTPUT PORT IS DESIGNED SUCH THAT LOAD CONNECTED WILL CONTINUOUSLY DRAW
POWER FROM BATTERY AS LONG AS THERE IS POWER LEFT IN THE BATTERY. THERE IS NO LOW
VOLTAGE DISCONNECT DUE TO LOAD CONTROL.
DO NOT CONNECT INVERTER TO THE “LOAD TERMINAL” OF THIS CHARGER AS START-UP
SURGE OF LOAD CAN EASILY EXCEED SAFETY RATING OF THIS UNIT.
)'"$&,/ -!$!(0.,&'$&(.,/$+,$!("'))'!,('"!))#"$'*<),-+$!("'))'!,(2
)'"+'"( .,/$<'.7,!",$!0!('),"!!,(
