5 Mounting

2710014218/00 EN

The following mounting steps describe the procedure in accordance with the

recommendations listed.

Tank-side Conservator-side

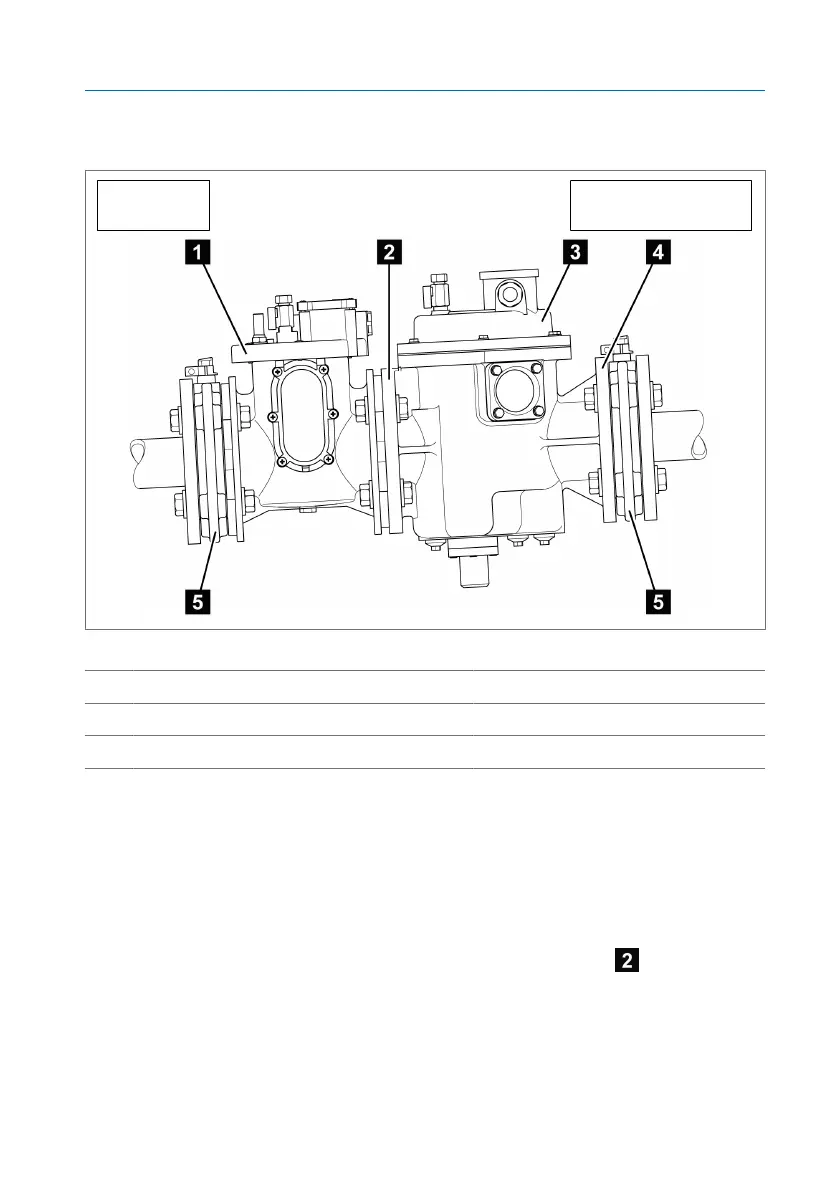

Figure7: Fastening the shutter valve to the pipe (installation example)

1 Buchholz relay (recommended) 2 Tank-side flange

3 Shutter valve 4 Conservator-side flange

5 Isolation valves (recommended)

1. Ensure that there is no insulating fluid in the pipe.

2. Insert the two o-ring gaskets supplied into the tank-side isolation valve.

3. Mount the isolation valve on the pipe flange on the tank side in accor-

dance with the operating instructions provided.

4. Affix the Buchholz relay to the isolation valve in accordance with the oper-

ating instructions provided.

5. Insert the o-ring gasket supplied into the tank-side flange of the shutter

valve.

6. Affix the shutter valve to the Buchholz relay on the tank side using suit-

able screws (M16), washers and nuts. Only tighten screws by hand.

7. Insert the two o-ring gaskets supplied into the conservator-side isolation

valve.
