5 Mounting
32 10014218/00 EN
2. Remove the dummy plug from the M20x1.5/M25x1.5 adapter.

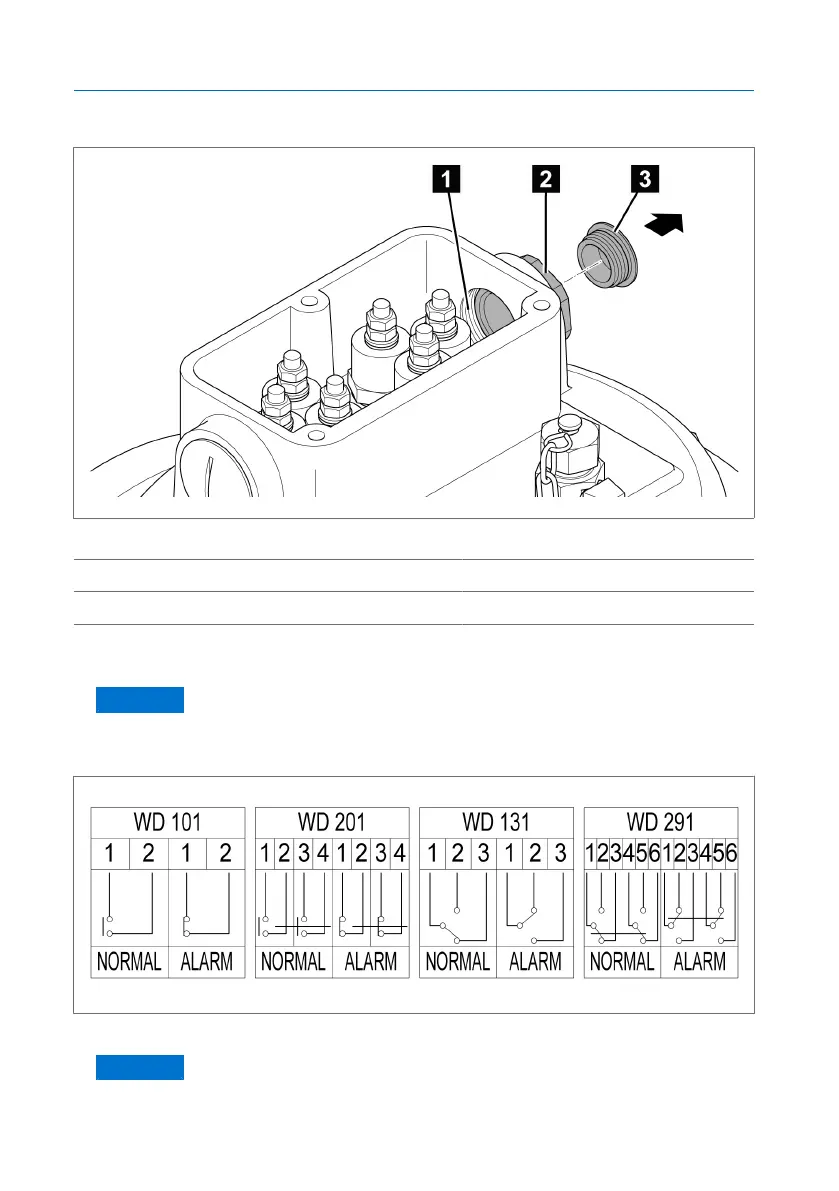

Figure11: Dummy plug and M20/M25 adapter
1 Housing thread: M25 x 1.5 2 M20 x 1.5/M25 x 1.5 adapter
3 Dummy plug
3. Fit an M20 cable gland in the adapter or remove the adapter and fasten
an M25 cable gland directly in the housing.
4. NOTICE! To ensure the IP degree of protection of the device, use a suit-
able cable gland with at least IP65.
5. The wiring diagram can be found on the inside of the terminal box cover.
Figure12: Wiring diagram
6. NOTICE! To prevent damage, observe the specified tightening torques.
