507043-04C Page 7 of 9mrcool.com

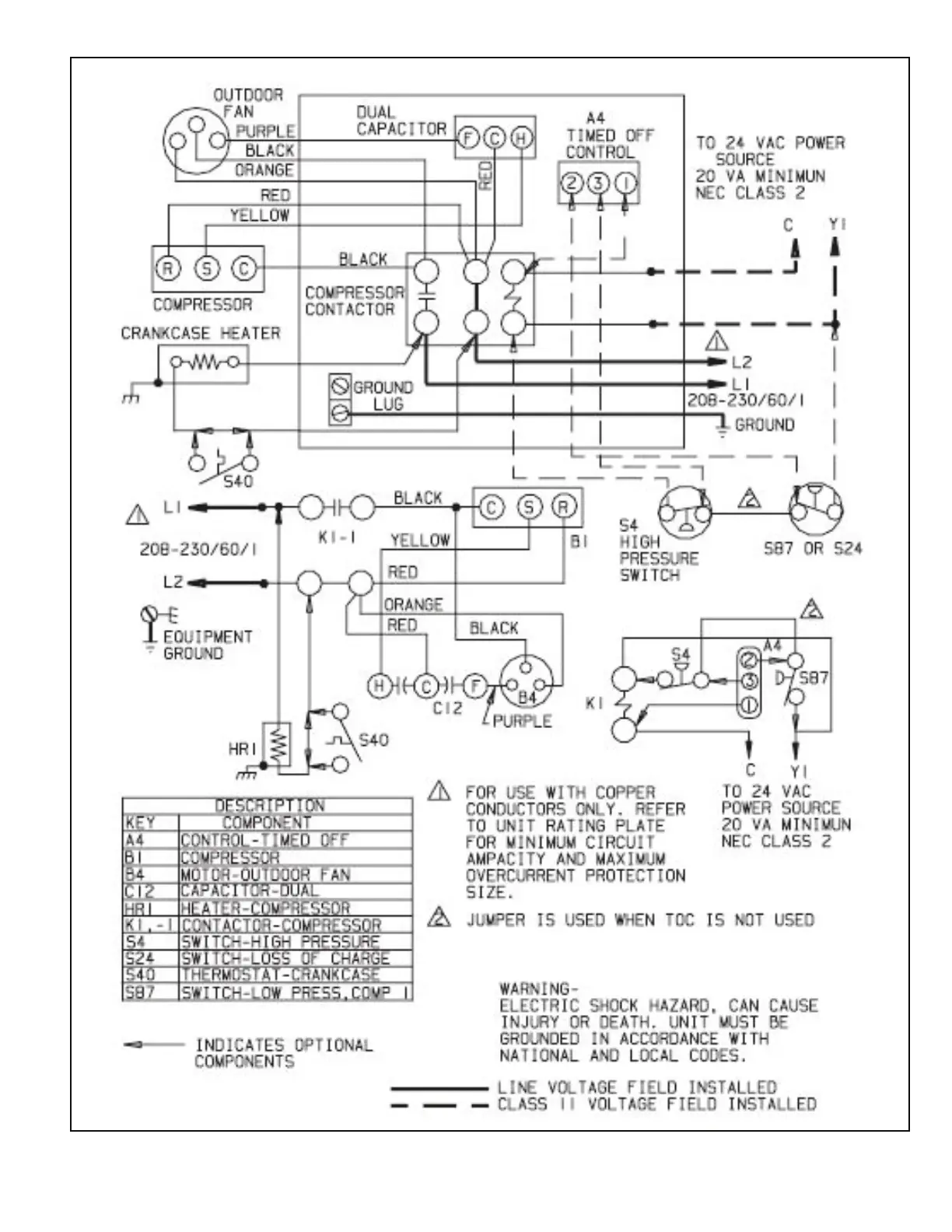

Figure 3. A/C Single Phase Wiring Diagram (single-speed condenser fan)
